Lamborghini Diablo SE30 (1993-1995) - Doors 3

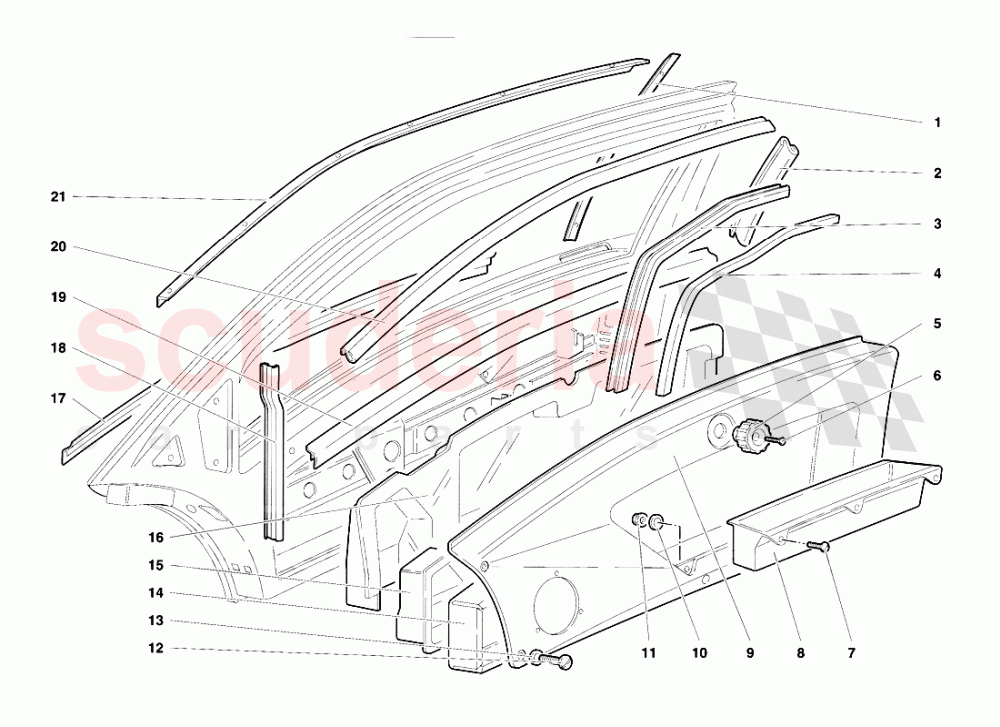

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9421415	RIGHT CHANNEL	9421415 RIGHT CHANNEL PROFILATO DX	-	1	Enquire
001	9421416	LEFT CHANNEL	9421416 LEFT CHANNEL PROFILATO SX	-	1	Enquire
002	9421729	GASKET	9421729 GASKET GUARNIZIONE	-	2	Enquire
003	9421425	GLASS SLIDING L. FRA.	9421425 GLASS SLIDING L. FRA. TELAIO SX SCORRIM. VETRO	-	1	Enquire
003	9421417	GLASS SLIDING R. FRA.	9421417 GLASS SLIDING R. FRA. TELAIO DX SCORRIM. VETRO	-	1	Enquire
004	9421730	GASKET	9421730 GASKET GUARNIZIONE	-	1	Enquire
005	9421616	GLASS LIFTING KNOB	9421616 GLASS LIFTING KNOB POMELLO X ALZAVETRO	-	2	Enquire
006	9421617	KNOB FIXING SCREW	9421617 KNOB FIXING SCREW VITE FISSAGGIO POMELLO	-	2	Enquire
007	9421547	SCREW	9421547 SCREW VITE	-	6	Enquire
008	9421544	RIGHT POCKET	9421544 RIGHT POCKET TASCA DX	-	1	Enquire
008	9421545	LEFT POCKET	9421545 LEFT POCKET TASCA SX	-	1	Enquire
009	9421554	RIGHT PANEL	9421554 RIGHT PANEL PANNELLO DX	-	1	Enquire
009	9421555	LEFT PANEL	9421555 LEFT PANEL PANNELLO SX	-	1	Enquire
010	9421549	WASHER	9421549 WASHER RONDELLA	-	6	Enquire
011	9421548	NUT	9421548 NUT DADO	-	6	Enquire
012	9421546	SCREW	9421546 SCREW VITE	-	8	Enquire
013	9421549	WASHER	9421549 WASHER RONDELLA	-	8	Enquire
014	5935370	R. DEADENING SHIELD	5935370 R. DEADENING SHIELD PROTEZIONE FONOASSORBENTE DX	-	1	Enquire
014	5935329	L DEADENING SHIELD	5935329 L DEADENING SHIELD PROTEZIONE FONOASSORBENTE SX	-	1	Enquire
015	5935369	RIGHT CASE	5935369 RIGHT CASE SCATOLA DX	-	1	Enquire
015	5935328	LEFT CASE	5935328 LEFT CASE SCATOLA SX	-	1	Enquire
016	9421553	LEFT PANEL	9421553 LEFT PANEL PANNELLO SX	-	1	Enquire
016	9421552	RIGHT PANEL	9421552 RIGHT PANEL PANNELLO DX	-	1	Enquire
017	9421700	GASKET	9421700 GASKET GUARNIZIONE	-	2	Enquire
018	9421731	GASKET	9421731 GASKET GUARNIZIONE	-	2	Enquire
019	9421728	CHANNEL	9421728 CHANNEL PROFILATO	-	2	Enquire
020	9421714	GASKET	9421714 GASKET GUARNIZIONE VETRO	-	2	Enquire
021	9421402	RIGHT CHANNEL	9421402 RIGHT CHANNEL PROFILATO DX	-	1	Enquire
021	9421403	LEFT CHANNEL	9421403 LEFT CHANNEL PROFILATO SX	-	1	Enquire
