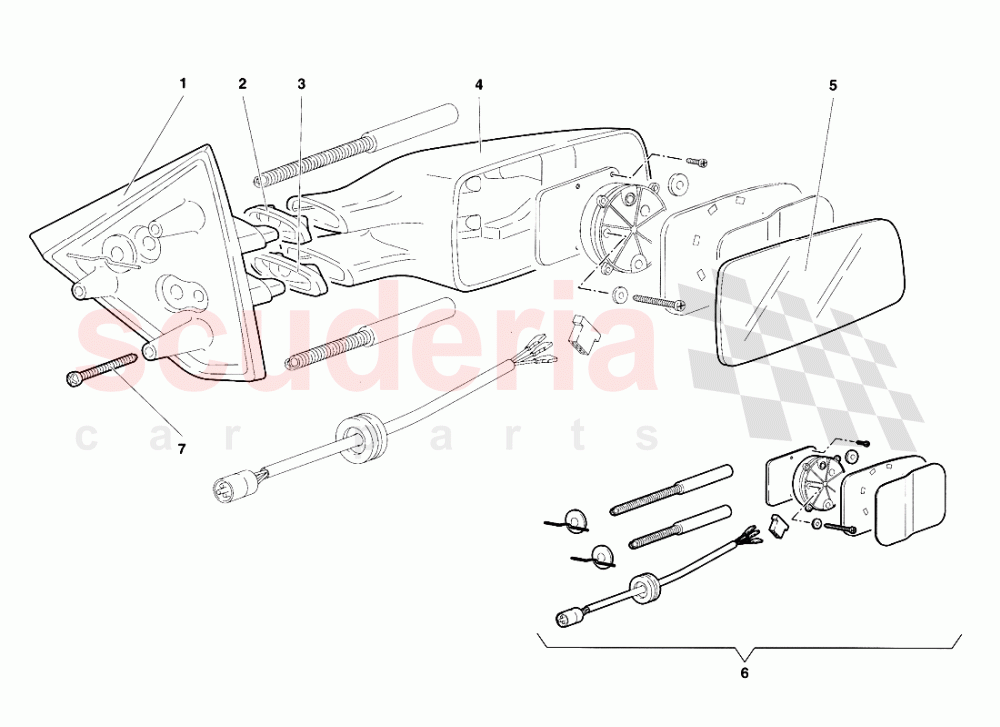

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9490462	L. EXTE. MIRROR BASE	9490462 L. EXTE. MIRROR BASE BASE SPECCHIO RETR.EST.SX	$1,299.84	1
001	9490461	R. EXTE. MIRROR BASE	9490461 R. EXTE. MIRROR BASE BASE SPECCHIO RETR.EST.DX	$1,299.84	1
002	9490426	RIGHT UPPER GASKET	9490426 RIGHT UPPER GASKET GUARNIZIONE SUPERIORE DX	$110.58	1
002	9490428	LEFT UPPER GASKET	9490428 LEFT UPPER GASKET GUARNIZIONE SUPERIORE SX	$110.58	1
003	9490427	R. LOWER GASKET	9490427 R. LOWER GASKET GUARNIZIONE INFERIORE DX	$166.88	1
003	9490429	L. LOWER GASKET	9490429 L. LOWER GASKET GUARNIZIONE INFERIORE SX	$110.58	1
004	9490472	LEFT MIRROR BODY	9490472 LEFT MIRROR BODY CORPO SPECCHIO SX	$334.38	1
004	9490471	RIGHT MIRROR BODY	9490471 RIGHT MIRROR BODY CORPO SPECCHIO DX	$1,088.53	1
005	9490412	RIGHT MIRROR	9490412 RIGHT MIRROR SPECCHIO RETROVISORE DX	$192.52	1
005	9490413	LEFT MIRROR	9490413 LEFT MIRROR SPECCHIO RETROVISORE SX	$71.11	1
006	600949003	RE. VIEW MIRRORS KIT	600949003 RE. VIEW MIRRORS KIT KIT SPECCH.RETR.EST.DX/SX	-	1	Enquire
007	8700329	SCREW	8700329 SCREW VITE	$0.13 MSRP: ~~7.37~~ (98.2% off)	6
