Windscreen Wiper and Headlamp Washers of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

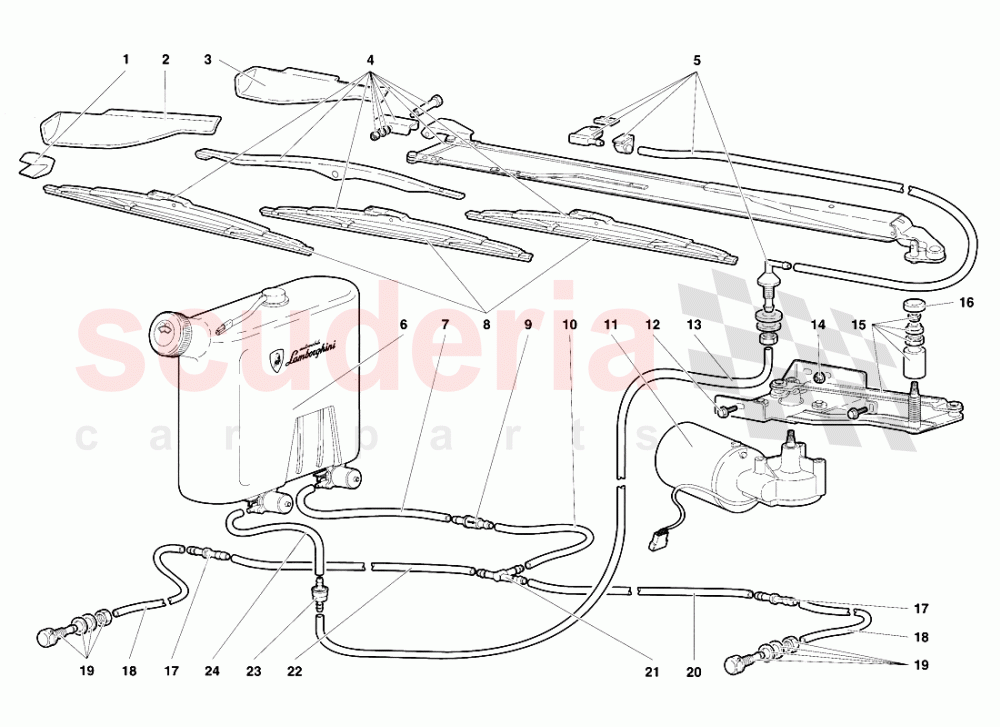

Lamborghini Diablo SE30 (1993-1995) - Windscreen Wiper and Headlamp Washers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	9420129	RUBBER BUMPER	9420129 RUBBER BUMPER PARACOLPI GOMMA	$34.54	1
002	9420128	FIN	9420128 FIN ALETTA ESTERNA	$2,258.06	1
003	9420127	FIN	9420127 FIN ALETTA INTERNA	$1,166.68	1
004	AA0000066	WIND SCREEN WHIPER KIT	AA0000066 WIND SCREEN WHIPER KIT BRACCIO TERGITORE	$692.37	1
005	418955215	WINDSCREEN WASHER	418955215 WINDSCREEN WASHER LAVAPARABREZZA	$137.10	1
006	9420219	WATER RESERVOIR	9420219 WATER RESERVOIR SERBATOIO ACQUA	$822.56	1
007	9420216	PIPE	9420216 PIPE TUBO FLESSIBILE	$6.28 MSRP: ~~6.40~~ (1.9% off)	1
008	9420126	BRUSH	9420126 BRUSH SPAZZOLA	$31.26 MSRP: ~~31.60~~ (1.1% off)	3
009	9420217	VALVE	9420217 VALVE VALVOLA A PRESSIONE	$6.75	1
010	9420212	PIPE	9420212 PIPE TUBO FLESSIBILE	$28.14	1
011	9420112	ELECT MOTOR	9420112 ELECT MOTOR MOTORING TERGI	$602.99 MSRP: ~~629.00~~ (4.1% off)	1
012	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	2
013	9420211	PIPE	9420211 PIPE TUBO	$7.31	1
014	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	2
015	9420111	LEVER ASSEMBLY	9420111 LEVER ASSEMBLY MECCANISMO TERGI	$1,594.30	1
016	6119917	PLUG	6119917 PLUG TAPPO	$6.89	1
017	9420208	CONNECTION	9420208 CONNECTION RACCORDOA2VIE	$1.50	2
018	9420215	PIPE	9420215 PIPE TUBO FLESSIBILE	$9.20	2
019	400955985	NOZZLE	400955985 NOZZLE UGELLO LAVAFARO	$5.79	2
020	9420214	PIPE	9420214 PIPE TUBO FLESSIBILE	$21.36	1
021	9420209	3 WAY CONNECTION	9420209 3 WAY CONNECTION RACCORDO A 3 VIE	$2.61	1
022	9420213	PIPE	9420213 PIPE TUBO FLESSIBILE	$6.28	1
023	9420210	VALVE	9420210 VALVE VALVOLA Dl NON-RITORNO	$6.45	1
024	9420201	PIPE	9420201 PIPE TUBO FLESSIBILE	$13.40 MSRP: ~~13.60~~ (1.5% off)	1
