Body Elements - Right Flank of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

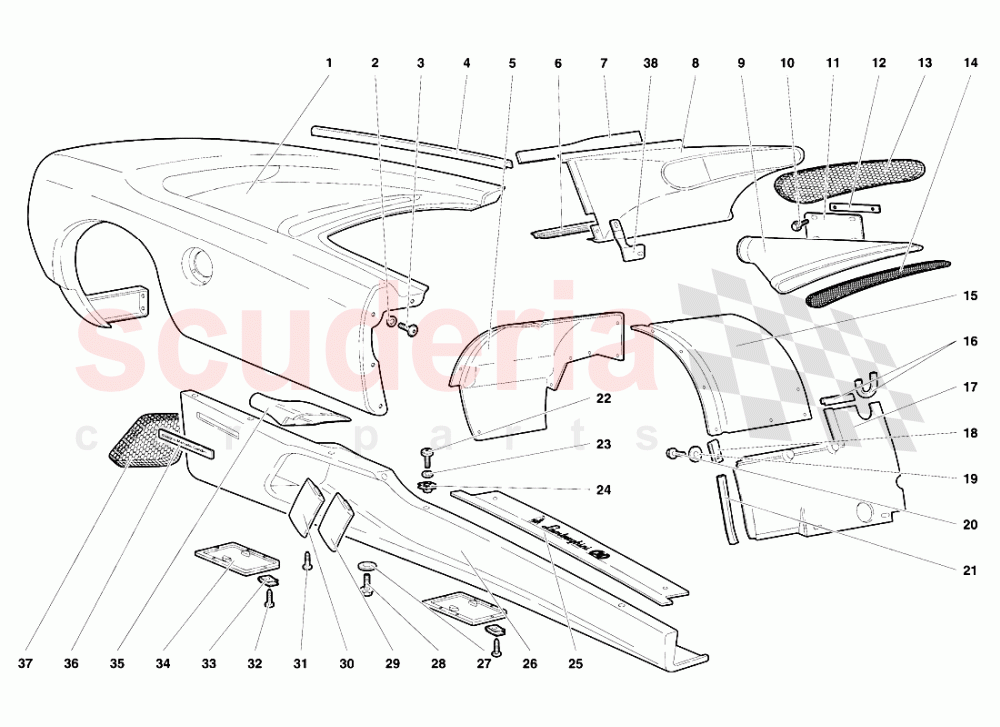

Lamborghini Diablo SE30 (1993-1995) - Body Elements - Right Flank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9410008	REAR MUDG. FENDER	9410008 REAR MUDG. FENDER PARAFANGO POST.	-	1	Enquire
002	8400624	WASHER	8400624 WASHER RONDELLA	-	9	Enquire
003	8740685	SCREW	8740685 SCREW VITE	-	9	Enquire
004	9490113	GASKET	9490113 GASKET GUARNIZIONE	-	1	Enquire
005	9411502	REAR WHEELBOX	9411502 REAR WHEELBOX PASSARUOTA POST.	-	1	Enquire
006	7090117	GASKET	7090117 GASKET GUARNIZIONE	-	1	Enquire
007	4531592	GASKET	4531592 GASKET GUARNIZ. X CONV. ARIA SU RAD.	-	1	Enquire
008	9453146	CONVEYOR	9453146 CONVEYOR CONVOGLIATORE X RAD.ACQUA DX	-	1	Enquire
009	9453139	CONVEYOR	9453139 CONVEYOR CONVOGLIATORE X FILTRO ARIA DX	-	1	Enquire
010	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	4	Enquire
011	9453136	SUPPORT - SUPPORTO	9453136 SUPPORT - SUPPORTO O	-	1	Enquire
012	9453137	BRACKET	9453137 BRACKET STAFFA	-	1	Enquire
013	9430124	NET	9430124 NET RETE	-	1	Enquire
014	9430126	NET	9430126 NET RETE	-	1	Enquire
015	9411501	REAR WHEELBOX	9411501 REAR WHEELBOX PASSARUOTA POST.	-	1	Enquire
016	9411513	GASKET	9411513 GASKET GUARNIZIONE	-	2	Enquire
017	9411520	PROTECTION	9411520 PROTECTION PARASASSI	-	1	Enquire
018	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	-	9	Enquire
019	N91109201	WASHER	N91109201 WASHER RONDELLA	-	21	Enquire
020	8700449	SCREW	8700449 SCREW VITE	-	21	Enquire
021	9411524	GASKET	9411524 GASKET GUARNIZIONE	-	1	Enquire
022	8740685	SCREW	8740685 SCREW VITE	-	3	Enquire
023	8400624	WASHER	8400624 WASHER RONDELLA	-	3	Enquire
024	N90327506	SPEED NUT	N90327506 SPEED NUT MOLLETTA	-	6	Enquire
025	9458372	DOORSILL MOULDING	9458372 DOORSILL MOULDING BATTICALCAGNO	-	1	Enquire
026	9410307	SIDE PANEL	9410307 SIDE PANEL BRANCARDO	-	1	Enquire
027	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	3	Enquire
028	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20 VITE	-	9	Enquire
029	9410309	FIN	9410309 FIN ALETTA	-	1	Enquire
030	9410310	FIN	9410310 FIN ALETTA	-	1	Enquire
031	WHT003304	SCREW	WHT003304 SCREW VITE	-	4	Enquire
032	WHT003114	SCREW	WHT003114 SCREW VITE	-	12	Enquire
033	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	-	12	Enquire
034	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO D'lSPEZIONE	-	2	Enquire
035	9453148	CONVEYOR	9453148 CONVEYOR CONVOGLIATORE	-	1	Enquire
037	9430147	NET	9430147 NET RETE X BRANCARDO	-	1	Enquire
038	4135637	BRACKET	4135637 BRACKET STAFFA	-	1	Enquire
