Bumpers of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Bumpers

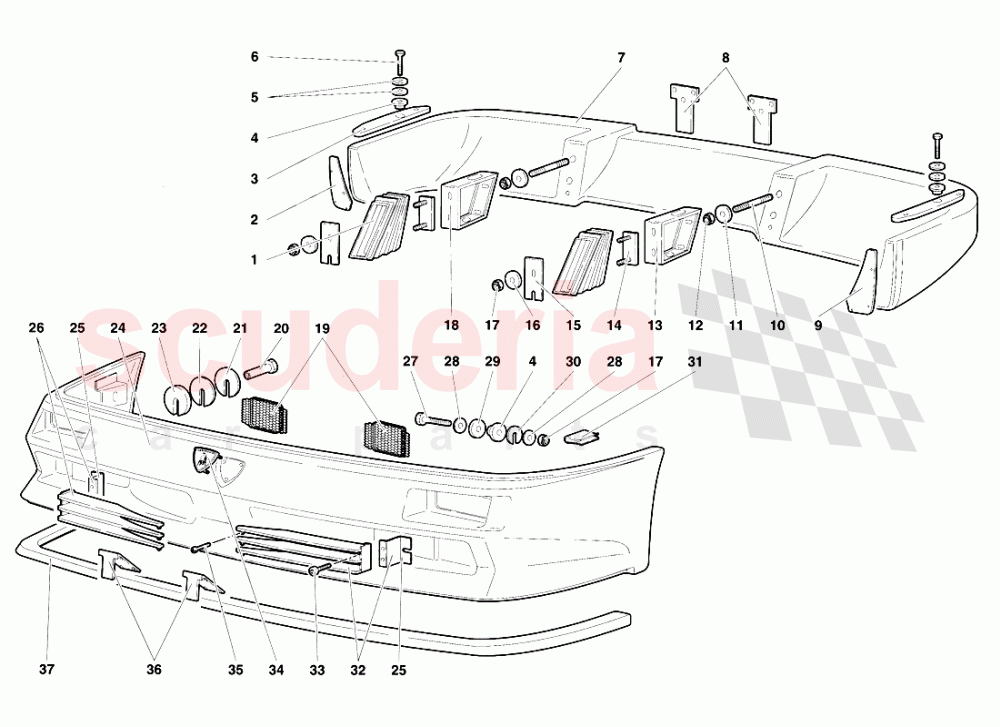

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9463204	SHIELD	9463204 SHIELD PROTEZIONE	-	2	Enquire
002	9463238	R. REAR PROTECTION	9463238 R. REAR PROTECTION PARASASSI POST. DX	-	1	Enquire
003	9463227	SPACER	9463227 SPACER DISTANZIALE	-	2	Enquire
004	9463109	WASHER	9463109 WASHER RONDELLA	-	4	Enquire
005	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
006	8100831	SCREW	8100831 SCREW VITE	-	2	Enquire
007	600946304	REAR BUMPER	600946304 REAR BUMPER PARAURTI POSTERIORE	-	1	Enquire
008	9466112	BRACKET	9466112 BRACKET STAFFA	-	2	Enquire
009	9463239	L. REAR PROTECTION	9463239 L. REAR PROTECTION PARASASSI POST. SX	-	1	Enquire
010	8300801	STUD	8300801 STUD PRIGIONIERO	-	4	Enquire
011	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
012	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
013	9463230	SUPPORT - SUPPORTO POST. SX	9463230 SUPPORT - SUPPORTO POST. SX O POST. SX	-	1	Enquire
014	9463209	PLATE	9463209 PLATE PIASTRA	-	2	Enquire
015	9463229	PLATE	9463229 PLATE PIASTRA	-	2	Enquire
016	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
017	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
018	9463228	LEFT REAR SUPPORT	9463228 LEFT REAR SUPPORT SUPPORTO POST. DX	-	1	Enquire
019	9430149	FRONT NET	9430149 FRONT NET RETE ANTERIORE	-	2	Enquire
020	9463117	SCREW	9463117 SCREW VITE FISS. PARAURTI ANT.	-	2	Enquire
021	9463115	SHIM	9463115 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
022	7063145	SHIM	7063145 SHIM use : 410807567	-	1	Enquire
023	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM SPESSORE Dl REGISTRO	-	1	Enquire
024	600946303	FRONT BUMPER	600946303 FRONT BUMPER PARAURTI ANTERIORE	-	1	Enquire
025	9430160	BRACKET	9430160 BRACKET STAFFA	-	2	Enquire
026	9430152	F. BUMPER RIG. GRILL	9430152 F. BUMPER RIG. GRILL GRIGLIA DX PARAURTI ANT.	-	1	Enquire
027	8100810	SCREW	8100810 SCREW VITE	-	2	Enquire
028	WHT001942	WASHER	WHT001942 WASHER RONDELLA	-	4	Enquire
029	7063142	WASHER	7063142 WASHER RONDELLA	-	2	Enquire
030	9463111	SPACER	9463111 SPACER DISTANZIALE	-	1	Enquire
031	8220506	CLIP	8220506 CLIP MOLLETTA	-	14	Enquire
032	9430153	LEFT FRONT GRILL	9430153 LEFT FRONT GRILL GRIGLIA ANTERIORE SX	-	1	Enquire
033	8700544	SCREW	8700544 SCREW VITE	-	4	Enquire
034	6127985	ORNAMENT	6127985 ORNAMENT SCUDO LAMBORGHINI	-	1	Enquire
035	8700433	SCREW	8700433 SCREW VITE	-	6	Enquire
036	9466111	BRACKET	9466111 BRACKET STAFFA	-	2	Enquire
037	9463135	RUBBER WEATHER-	9463135 RUBBER WEATHER- PROFILATO GOMMA	-	1	Enquire
