Pedals of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Pedals

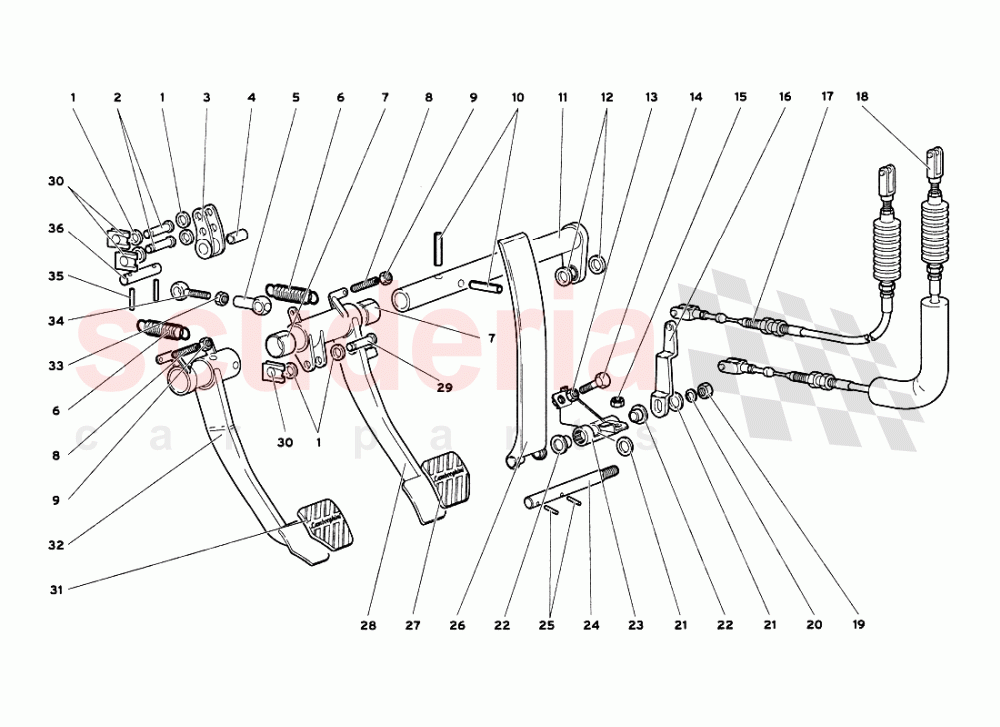

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401007	WASHER	8401007 WASHER	-	6	Enquire
002	4232621	PIN	4232621 PIN	-	2	Enquire
003	4225060	ROCKER	4225060 ROCKER	-	1	Enquire
004	8801209	BUSHING	8801209 BUSHING	-	1	Enquire
005	4225061	COUPLING	4225061 COUPLING	-	1	Enquire
006	42004879	SPRING	42004879 SPRING	-	2	Enquire
007	8802501	BUSHING	8802501 BUSHING	-	2	Enquire
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE	-	2	Enquire
009	N01100637	NUT M6	N01100637 NUT M6	-	2	Enquire
010	8900803	PIN	8900803 PIN	-	2	Enquire
011	4225064	SHAFT	4225064 SHAFT	-	1	Enquire
012	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1	-	2	Enquire
013	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
014	8100828	SCREW	8100828 SCREW	-	1	Enquire
015	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
016	42005200	LEVER	42005200 LEVER	-	1	Enquire
017	4230089	GAS CABLE	4230089 GAS CABLE (Valid for MY 2000 & 2001)	-	1	Enquire
018	4236013	TIE ROD	4236013 TIE ROD (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
019	8200809	NUT	8200809 NUT	-	1	Enquire
020	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	1	Enquire
021	3230722	WASHER	3230722 WASHER	-	2	Enquire
022	8801203	BUSHING	8801203 BUSHING	-	2	Enquire
023	42005202	SUPPORT	42005202 SUPPORT	-	1	Enquire
024	42005199	PIN	42005199 PIN	-	1	Enquire
025	8900204	PIN	8900204 PIN	-	2	Enquire
026	42005198	ACCELERATOR PEDAL	42005198 ACCELERATOR PEDAL	-	1	Enquire
027	42005210	RUBBER PEDAL COVER	42005210 RUBBER PEDAL COVER	-	1	Enquire
028	42005208	BRAKE PEDAL	42005208 BRAKE PEDAL	-	1	Enquire
029	4232622	PIN	4232622 PIN	-	1	Enquire
030	8581004	CLIP	8581004 CLIP	-	3	Enquire
031	42005210	RUBBER PEDAL COVER	42005210 RUBBER PEDAL COVER	-	1	Enquire
032	42005211	CLUTCH PEDAL	42005211 CLUTCH PEDAL	-	1	Enquire
033	N10155210	NUT	N10155210 NUT	-	1	Enquire
034	4225062	TIE ROD	4225062 TIE ROD	-	1	Enquire
035	8900305	PIN - SPINA	8900305 PIN - SPINA	-	2	Enquire
036	4225074	PIN	4225074 PIN	-	1	Enquire
