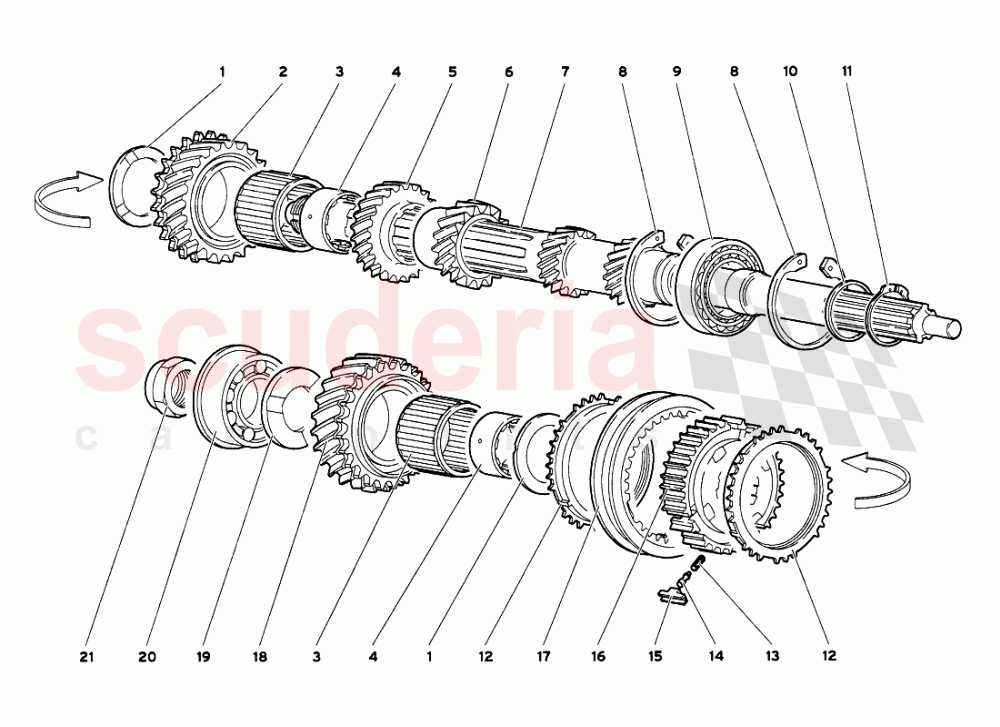

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424864	WASHER	2424864 WASHER	$188.17	2
002	24001641	4TH GEAR	24001641 4TH GEAR	$1,786.60	1
003	8524701	ROLLER CAGE	8524701 ROLLER CAGE	$47.83 MSRP: ~~50.10~~ (4.5% off)	2
004	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING	$508.06	2
005	2424873	GEAR	2424873 GEAR	$255.59 MSRP: ~~259.00~~ (1.3% off)	1
006	2427097	GEAR	2427097 GEAR	$251.24 MSRP: ~~254.00~~ (1.1% off)	1
007	2430938	MAIN SHAFT	2430938 MAIN SHAFT	$1,062.04 MSRP: ~~1,075.00~~ (1.2% off)	1
008	8578001	RETAINER RING	8578001 RETAINER RING	$6.61	2
009	8524010	BEARING	8524010 BEARING	-	1	Enquire
010	2424859	RING	2424859 RING	$23.65	1
011	8584001	RETAINER RING	8584001 RETAINER RING	$8.57 MSRP: ~~8.90~~ (3.7% off)	1
012	2421416	FRICTION RING	2421416 FRICTION RING	$1,527.07	2
013	2421418	SPRING	2421418 SPRING	$67.60	3
014	2421419	PIN	2421419 PIN	$34.81	3
015	2421420	BRAKE PAD	2421420 BRAKE PAD	$29.70	3
016	2421680	SYNCHRONIZER	2421680 SYNCHRONIZER	$323.82	1
017	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING	$1,383.39	1
018	24001860	GEAR	24001860 GEAR (Low Ratios)	$246.90	1
018	24001212	GEAR	24001212 GEAR	$436.73	1
019	2424861	SPACER	2424861 SPACER	$146.92	1
020	8503006	BEARING	8503006 BEARING	$694.79	1
021	2431824	NUT	2431824 NUT	$269.25	1
