Lamborghini Diablo VT 6.0 (2000-2001) - Final Drive

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

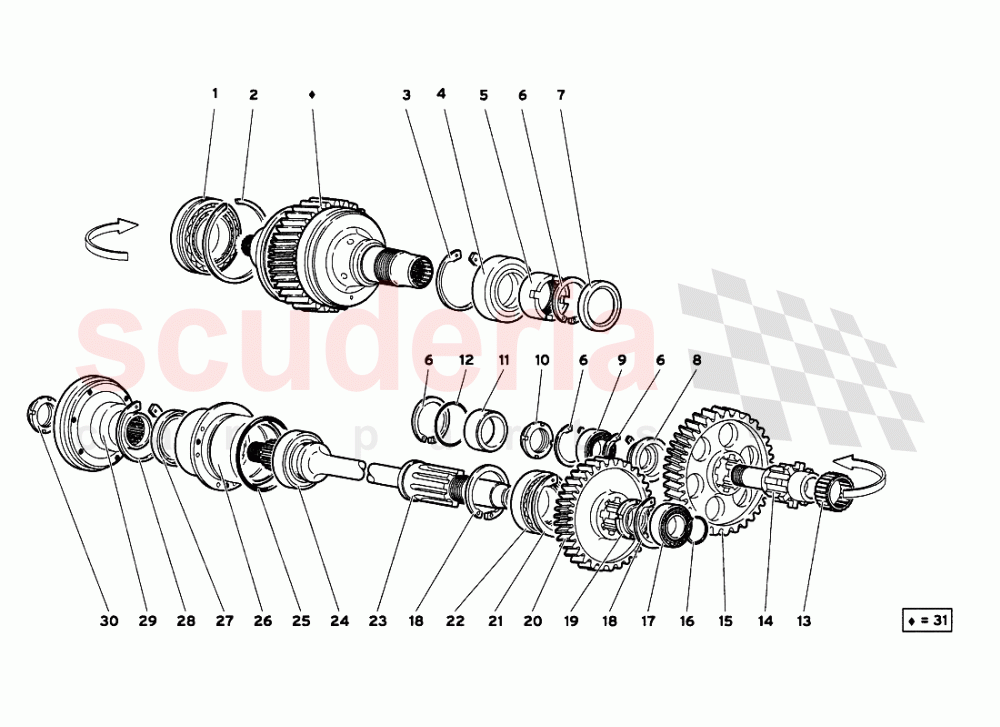

Final Drive of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8525013
BEARING 		$309.78 1
002 8589001
RETAINER RING 		$3.48 (2% off) 1
003 8578001
RETAINER RING 		$6.61 1
004 8514001
BEARING 		$146.40 (3.7% off) 1
005 8254004
PLUG 		$141.46 (4.1% off) 1
006 8575201
RETAINING RING 		$1.22 (83.1% off) 4
007 86311819
SEAL RING 		$56.38 1
008 2430936
SPACER 		$66.38 1
009 8512500
BEARING 		$140.21 (4% off) 1
010 8252502
PLUG 		$159.43 1
011 2436927
COVER 		$207.19 (1.1% off) 1
012 8605002
SEAL 		$0.97 (86.6% off) 1
013 8523517
ROLLER CAGE 		$22.94 1
014 2431869
SMALL SHAFT 		$5,565.52 1
015 2433672
GEAR 		$2,229.11 1
016 8582501
RETAINER RING 		$5.82 (3% off) 1
017 8522509
BEARING 		$196.86 1
018 8576601
RETAINER RING 		$0.82 (88.7% off) 2
019 8253005
PLUG 		$19.30 (4.5% off) 1
020 2433673
GEAR 		$1,925.15 1
021 8577601
RETAINER RING 		$3.37 1
022 8523516
BEARING 		$66.89 1
023 2434628
PROPELLER SHAFT 		$625.30 (1.1% off) 1
024 8513000
BEARING 		$77.42 (4.3% off) 1
025 8606502
SEAL 		$0.55 (92.5% off) 1
026 24006752
FLANGE 		$104.21 (1.2% off) 1
027 8614211
SEAL 		$21.91 (4.3% off) 1
028 8575501
RETAINING RING 		$1.32 (81.5% off) 1
029 24007741
FLANGE 		$397.02 (1.2% off) 1
030 23007722
HEXAGONAL NUT 		$259.32 1
031 240132020
VISCOUS COUPLING (Z=34) 		- 1 Enquire
031 240132021
VISCOUS COUPLING (Z=34)
(Valid for USA - March 2001) 		- 1 Enquire
