Driven Shaft

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Driven Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

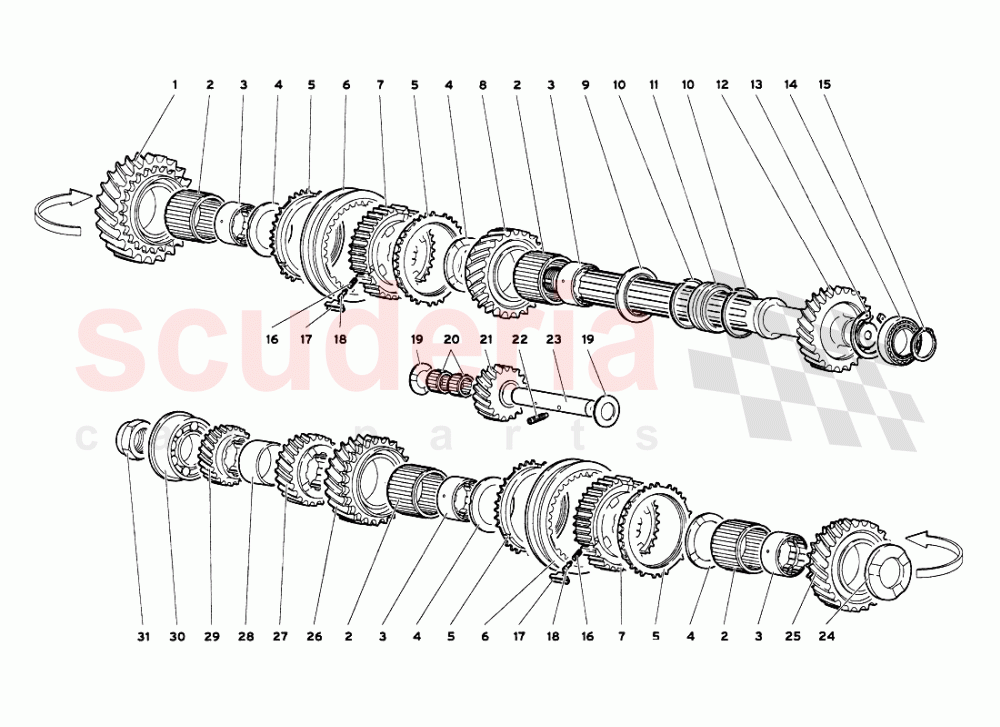

Driven Shaft of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 2424886
GEAR 		$1,978.92 (3.9% off) 1
002 8524701
ROLLER CAGE 		$47.83 (4.5% off) 4
003 2420124
SPLINED BUSHING 		$508.06 4
004 2424864
WASHER 		$188.17 4
005 2421416
FRICTION RING 		$1,527.07 4
006 2425150
SLEEVE T/OBEARING 		$1,383.39 2
007 2421680
SYNCHRONIZER 		$323.82 2
008 2424891
GEAR 		$446.64 1
009 2424860
SHIM 		$128.41 1
010 8576201
RETAINER RING 		$3.06 2
011 8524011
BEARING 		$149.11 1
012 2437436
COUNTERSHAFT 		$3,418.11 1
012 24001867
COUNTERSHAFT
(Valid for USA - March 2001) (Low Ratio) 		$6,991.31 1
013 8576601
RETAINER RING 		$0.82 (88.7% off) 1
014 8523009
BEARING 		$67.17 1
015 8583001
RETAINER RING 		$9.67 1
016 2421418
SPRING 		$67.60 6
017 2421420
BRAKE PAD 		$29.70 6
018 2421419
PIN 		$34.81 6
019 2424862
WASHER 		$228.30 2
020 8522008
ROLLER CAGE 		$27.11 2
021 2424869
GEAR 		$243.19 1
022 8700649
SCREW 		$7.93 (3.9% off) 1
023 2424865
SMALL SHAFT 		$112.20 1
024 2424863
WASHER 		$99.14 (1.4% off) 1
025 2427098
GEAR 		$5,001.01 1
026 2424888
GEAR 		$1,749.38 (3.9% off) 1
027 24001638
GEAR 		$264.89 1
028 24001451
SPLINED BUSHING 		$59.68 1
029 24001858
GEAR
(Low Ratio) 		$436.73 1
029 24001213
GEAR 		$256.84 (1.2% off) 1
030 8503006
BEARING 		$694.79 1
031 2431824
NUT 		$269.25 1
