Front Differential of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

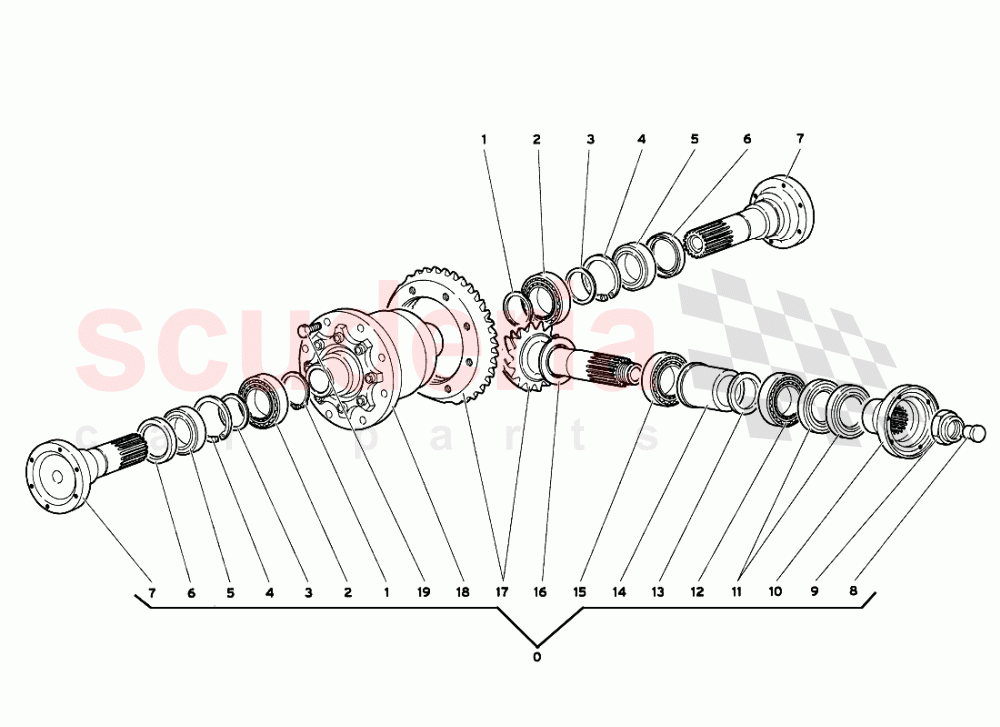

Lamborghini Diablo VT 6.0 (2000-2001) - Front Differential

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8582701	RETAINING RING	8582701 RETAINING RING	-	2	Enquire
002	8544103	BEARING	8544103 BEARING	-	2	Enquire
003	2325826	SPACER	2325826 SPACER	-	2	Enquire
004	8576601	RETAINER RING	8576601 RETAINER RING	-	2	Enquire
005	1S409144	BEARING	1S409144 BEARING	-	2	Enquire
006	1S409209	SEAL RING	1S409209 SEAL RING	-	2	Enquire
007	2325830	FLANGE	2325830 FLANGE	-	2	Enquire
008	2334235	RUBBER	2334235 RUBBER	-	1	Enquire
009	23007722	HEXAGONAL NUT	23007722 HEXAGONAL NUT (To be ordered together if installed on differential from No. 1019)	-	1	Enquire
010	24007741	FLANGE	24007741 FLANGE (To be ordered together if installed on differential from No. 1019)	-	1	Enquire
011	8614208	SEAL	8614208 SEAL	-	2	Enquire
012	8543101	BEARING	8543101 BEARING	-	1	Enquire
013	23004294	3.20 MM SHIM	23004294 3.20 MM SHIM	-	1	Enquire
013	23004295	3.30 MM SHIM	23004295 3.30 MM SHIM	-	1	Enquire
013	2334350	SHIM	2334350 SHIM	-	1	Enquire
013	23004292	3.00 MM SHIM	23004292 3.00 MM SHIM	-	1	Enquire
013	23004291	2.90 MM SHIM	23004291 2.90 MM SHIM	-	1	Enquire
013	23004290	2.80 MM SHIM	23004290 2.80 MM SHIM	-	1	Enquire
013	23004293	3.10 MM SHIM	23004293 3.10 MM SHIM	-	1	Enquire
014	2325825	SPACER	2325825 SPACER	-	1	Enquire
015	8543401	BEARING	8543401 BEARING	-	1	Enquire
016	23003418	2.55 MM SHIM	23003418 2.55 MM SHIM	-	1	Enquire
016	23003419	2.45 MM SHIM	23003419 2.45 MM SHIM	-	1	Enquire
016	23003416	2.75 MM SHIM	23003416 2.75 MM SHIM	-	1	Enquire
016	23003417	2.65 MM SHIM	23003417 2.65 MM SHIM	-	1	Enquire
016	2334259	SHIM	2334259 SHIM	-	1	Enquire
016	23003420	2.35 MM SHIM	23003420 2.35 MM SHIM	-	1	Enquire
016	2333796	SHIM	2333796 SHIM	-	1	Enquire
016	2333792	SHIM	2333792 SHIM	-	1	Enquire
016	2333793	SHIM	2333793 SHIM	-	1	Enquire
016	2333794	SHIM	2333794 SHIM	-	1	Enquire
016	2333795	SHIM	2333795 SHIM	-	1	Enquire
017	23002116	BEVEL SET	23002116 BEVEL SET	-	1	Enquire
018	2325823	KIT DIFFERENTIAL	2325823 KIT DIFFERENTIAL	-	1	Enquire
019	8101062	SCREW	8101062 SCREW	-	8	Enquire
