Lamborghini Diablo VT 6.0 (2000-2001) - Clutch

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

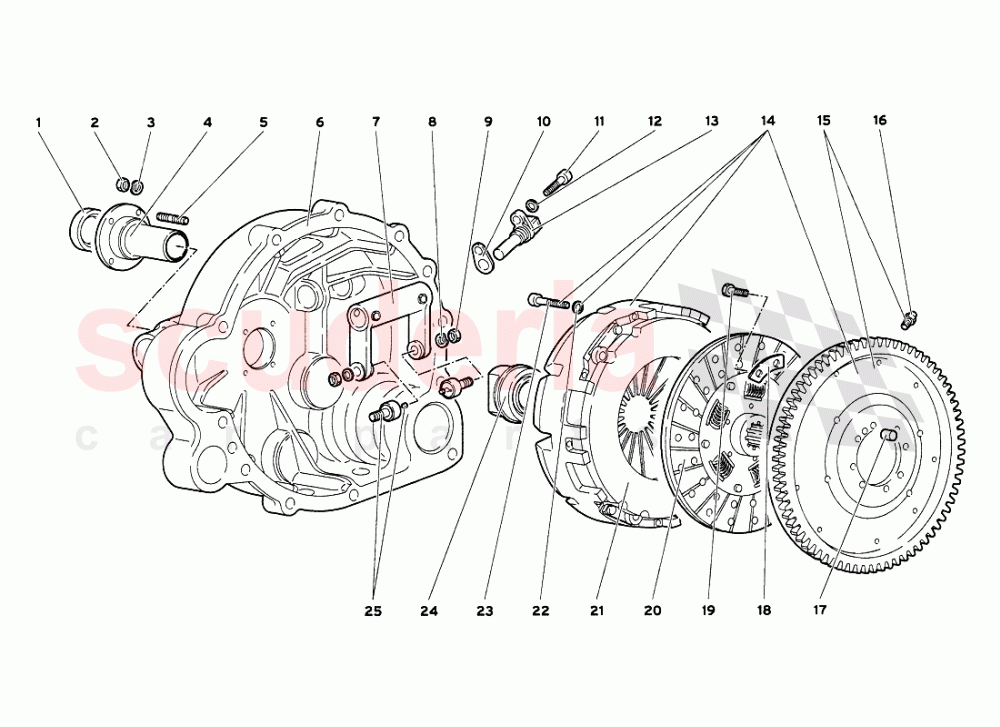

Clutch of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8613206
SEAL 		$19.94 (1.3% off) 1
002 N01100637
NUT M6 		$0.33 (95.5% off) 4
003 8410602
WASHER 		$44.87 4
004 2435495
SUPPORT - SUPPORTO REGGISPINTA 		$797.78 1
005 8300613
STUD BOLT 		$4.96 (2.7% off) 4
006 2437018
CLUTCH BELL HOUS. 		$6,455.76 1
007 2129843
FORK 		$5,732.00 1
008 WHT000771
WASHER 		$1.19 2
009 N01100845
HEXAGON NUT 		$1.89 2
010 2437780
SHIM 		- 1 Enquire
011 8700670
SCREW 		$0.28 (96.2% off) 1
012 8410602
WASHER 		$44.87 1
013 86927321
TIMING SENSOR 		$121.40 1
014 2137138
PRES. PLATE - FLYWH. 		$2,178.45 1
015 2134891
FLYWHEEL WITH PINS 		$3,033.48 1
016 7M105357
PIN 		$52.27 6
017 8850806
DOWEL 		- 1 Enquire
018 7M141031A
Clutch Disc
(Valeo) 		$1,059.27 1
018 410141179
Retaining Plate 		$63.32 4
019 WHT002951
Hexagon Head Bolt M8x1.25x23 		$19.45 8
020 7M141031A
Clutch Disc
(Valeo) 		$1,059.27 1
021 2135365
PRESSURE PLATE 		$825.06 1
022 8410602
WASHER 		$44.87 9
023 WHT002960
SCREW 		$9.03 9
024 2135367
SLEEVE T/OBEARING 		$533.75 1
025 2130016
PAWL 		$186.73 2
