Clutch Controls Levers of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Clutch Controls Levers

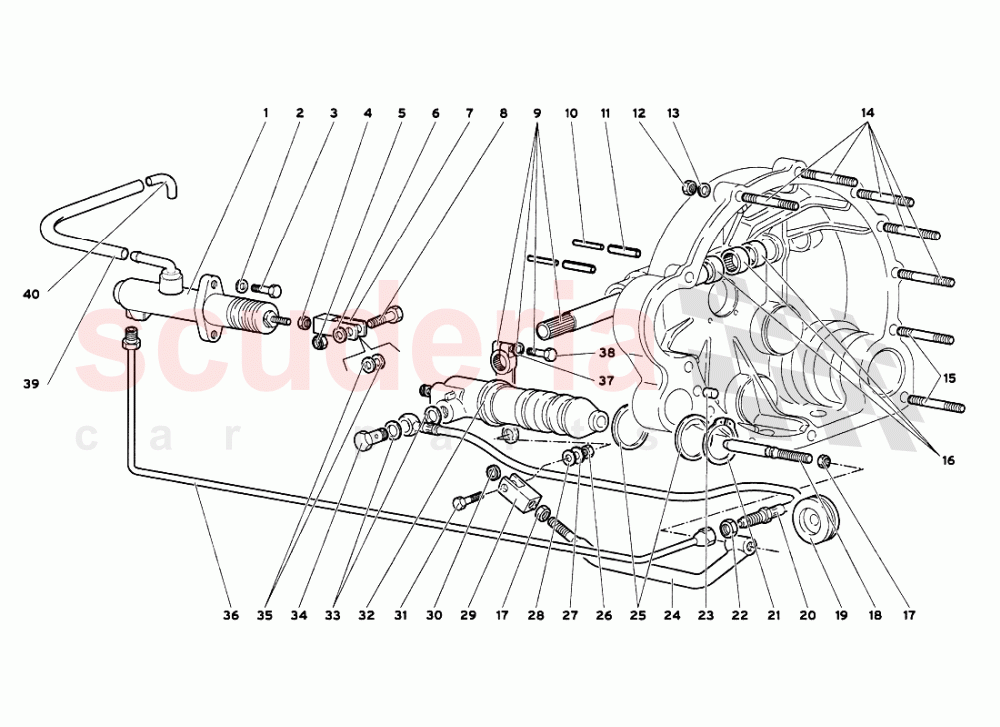

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	42004758	CLUTCH PUMP	42004758 CLUTCH PUMP	$778.75	1
002	N0152785	WASHER	N0152785 WASHER	$0.40	2
003	N0124032	SCREW	N0124032 SCREW	-	2	Enquire
004	8200811	NUT	8200811 NUT	$5.82 MSRP: ~~6.00~~ (3% off)	1
005	N0111849	NUT	N0111849 NUT	$2.15 MSRP: ~~7.25~~ (70.3% off)	1
006	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	1
007	4219591	FORK	4219591 FORK	-	1	Enquire
008	2129460	JOURNAL	2129460 JOURNAL	$32.39	1
009	2134952	SHAFT	2134952 SHAFT	$638.99	1
010	8900505	PIN - SPINA	8900505 PIN - SPINA	-	2	Enquire
011	8900804	PIN - SPINA	8900804 PIN - SPINA	$1.89 MSRP: ~~7.25~~ (73.9% off)	2
012	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	11
013	WHT000771	WASHER	WHT000771 WASHER	$1.19	11
014	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$6.02	9
015	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	2
016	8522204	ROLLER CAGE	8522204 ROLLER CAGE	$20.12 MSRP: ~~20.90~~ (3.7% off)	3
017	N10155210	NUT	N10155210 NUT	$1.96 MSRP: ~~7.24~~ (72.9% off)	2
018	2134687	ROD	2134687 ROD	$903.24	1
019	8612804	RUBBER RING	8612804 RUBBER RING	$6.28 MSRP: ~~6.55~~ (4.1% off)	1
020	2137394	FLEX. HOSE	2137394 FLEX. HOSE	$212.77	1
021	8583701	RETAINER RING	8583701 RETAINER RING	$0.55 MSRP: ~~7.31~~ (92.5% off)	1
022	8201216	NUT	8201216 NUT	$4.69	1
023	8850806	DOWEL	8850806 DOWEL	-	2	Enquire
024	2134956	IDLE LEVER	2134956 IDLE LEVER	$2,779.15	1
025	2129128	SPACER	2129128 SPACER	$61.24	2
026	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	1
027	N0152785	WASHER	N0152785 WASHER	$0.40	1
028	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5	$0.33 MSRP: ~~7.35~~ (95.5% off)	1
029	2134957	FORK	2134957 FORK	$221.48	1
030	4225225	COUPLING	4225225 COUPLING	-	1	Enquire
031	WHT002952	SCREW M8X1,25X30	WHT002952 SCREW M8X1,25X30	$4.98	1
032	2136948	PUMP CYLINDER	2136948 PUMP CYLINDER	$139.21	1
033	WHT003544	WASHER	WHT003544 WASHER	$31.51	2
034	2134973	SCREW	2134973 SCREW	$228.30	1
035	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1	$0.58 MSRP: ~~7.29~~ (92% off)	2
036	2137085	PIPE	2137085 PIPE	$168.13 MSRP: ~~170.50~~ (1.4% off)	1
036	2137532	PIPE	2137532 PIPE (Valid for GB - March 2001)	$161.92	1
036	2137532	PIPE	2137532 PIPE (Valid for AUSTRALIA - March 2001)	$161.92	1
037	WHT000771	WASHER	WHT000771 WASHER	$1.19	1
038	WHT002952	SCREW M8X1,25X30	WHT002952 SCREW M8X1,25X30	$4.98	1
039	42003719	PIPE	42003719 PIPE	-	1	Enquire
040	42008125	UNION	42008125 UNION	$26.58 MSRP: ~~27.80~~ (4.4% off)	1
