Gearbox Control Tower

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

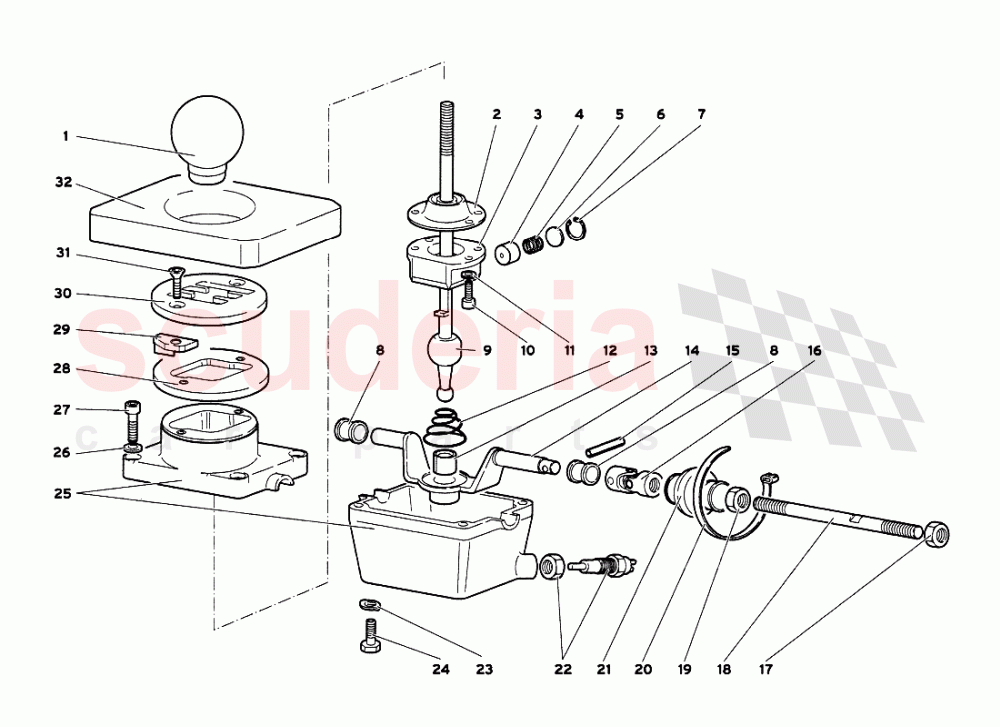

Gearbox Control Tower of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 24004603
KNOB 		$1,606.69 1
002 2433043
BOOT 		$119.14 1
003 2434091
BALL SOCKFT 		$240.69 (1.2% off) 1
004 2427202
CYLINDER 		$85.00 1
005 2432167
SPRING 		$12.17 (4.2% off) 1
006 2427204
PLUG 		$10.31 1
007 8572201
RETAINER RING
IN STOCK 		$0.07 (99.1% off) 1
008 2433020
BUSHING 		$78.48 2
009 2437666
LEVER 		$1,246.91 (4.1% off) 1
010 8700644
SCREW 		$0.37 (95% off) 4
011 8410602
WASHER
IN STOCK 		$44.87 4
012 24005155
SPRING 		$37.53 1
013 2427207
BUSHING 		$321.35 1
014 2429161
SHAFT 		$304.61 (1.1% off) 1
015 8900305
PIN - SPINA 		$0.27 (96.3% off) 1
016 410711615
RH JOINT 		$1,080.65 1
017 8201224
NUT 		- 1 Enquire
018 2434472
TIE ROD 		$39.09 1
019 8201223
NUT 		- 1 Enquire
020 8830305
CLAMP 		$0.40 (94.5% off) 2
021 2434614
BOOT 		- 1 Enquire
022 2408637
SWITCH 		$117.25 1
023 8410817
WASHER 		$4.69 4
024 N01029315
SCREW (FROM VIN 5LA01545) 		$1.22 (83.1% off) 4
025 240132017
MACHINED CASE 		$1,373.66 1
026 8410820
WASHER 		$0.19 (97.4% off) 4
027 8700804
SCREW
IN STOCK 		$1.63 (77.8% off) 4
028 24006223
SPACER 		$294.68 1
029 2433904
PLATE (REVERSE) 		$803.98 1
030 24005218
PLATE 		$1,097.22 1
031 8740640
SCREW
IN STOCK 		$0.40 (94.5% off) 2
032 2431785
FLEX PAD 		- 1 Enquire
