Lamborghini Diablo VT 6.0 (2000-2001) - Gearbox Oil Pump

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

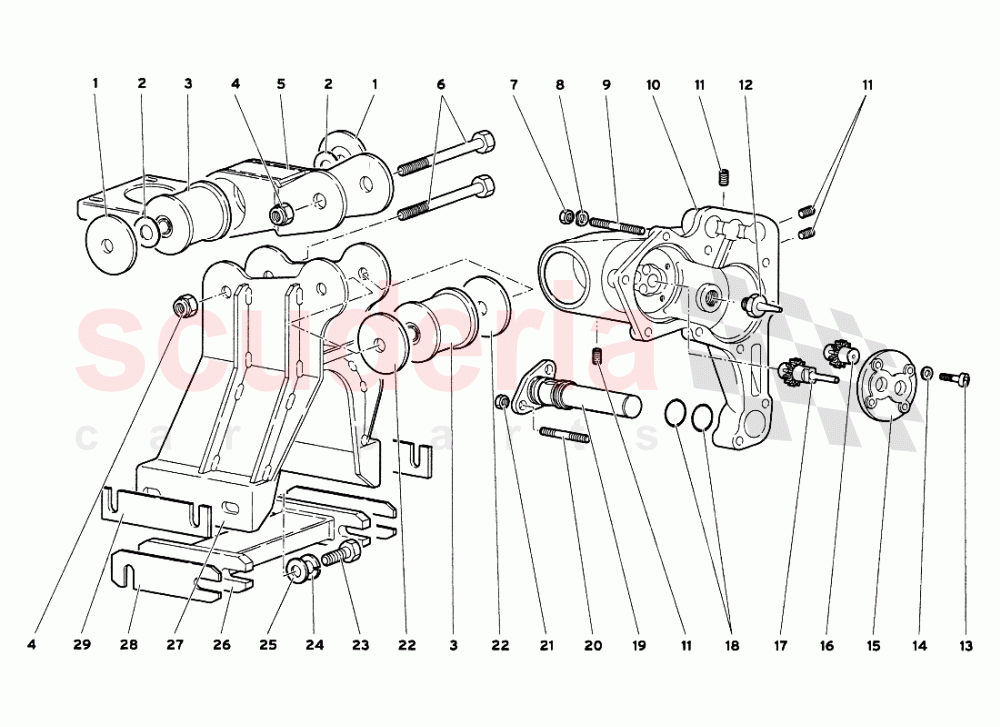

Gearbox Oil Pump of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 2433939
SPACER 		$241.94 2
002 8401421
WASHER 		$0.53 (92.7% off) 2
003 B9501144
support mount 		$243.94 2
004 8201414
NUT 		$20.59 (1.5% off) 2
005 24005345
SUPPORT 		$466.52 (1.4% off) 1
005 24007191
SUPPORT
(Valid for GB - March 2001) 		$698.51 1
005 24007191
SUPPORT
(Valid for AUSTRALIA - March 2001) 		$698.51 1
006 8101411
SCREW 		$6.52 (3.4% off) 2
007 N01100845
HEXAGON NUT 		$1.89 8
008 WHT000771
WASHER 		$1.19 8
009 8300833
STUD BOLT 		$6.09 (3.3% off) 8
010 2431783
COVER 		$2,562.04 1
011 8701204
PLUG 		$2.09 (2.8% off) 4
012 2425259
JET 		$20.47 (4.1% off) 1
013 8700670
SCREW 		$0.28 (96.2% off) 4
014 8410602
WASHER 		$44.87 4
015 2431778
COVER 		$430.52 1
016 2425185
DRIVEN GEAR 		$555.82 (4% off) 1
017 2425184
GEAR 		$492.57 (4% off) 1
018 8602301
SEAL 		$1.74 (75.3% off) 2
019 2425246
OIL FILTER 		$176.61 1
020 8300840
STUD 		$3.37 2
021 8200821
NUT 		$2.81 2
022 8401415
WASHER 		$16.51 2
023 8100862
SCREW 		$0.64 4
024 N0152785
WASHER 		$0.40 4
025 N90179103
WASHER 18X8,4X2,5 		$1.55 4
026 2433990
CROSSRAIL 		$45.97 1
027 2433346
SUPPORT - SUPPORTO 		$434.25 (1.1% off) 1
028 2433991
SPACER 		$61.24 1
029 4126766
SPACER 		- 1 Enquire
