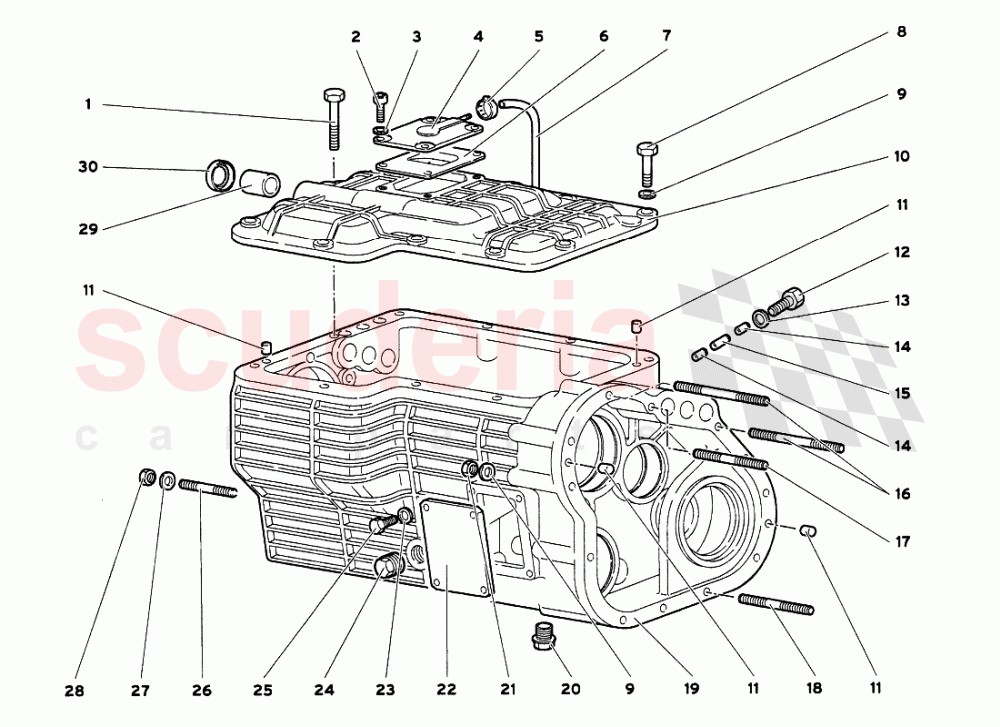

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	24Y1S1320	Gearbox	24Y1S1320 Gearbox	-	1	Enquire
001	8100807	SCREW	8100807 SCREW	-	1	Enquire
002	8700644	SCREW	8700644 SCREW	-	4	Enquire
003	8410602	WASHER	8410602 WASHER	-	4	Enquire
004	2428645	COVER	2428645 COVER	-	1	Enquire
005	8830128	CLAMP	8830128 CLAMP	-	1	Enquire
006	2428643	PAN	2428643 PAN	-	1	Enquire
007	2428649	VENT PIPE	2428649 VENT PIPE	-	1	Enquire
008	8100821	SCREW	8100821 SCREW	-	9	Enquire
009	WHT000771	WASHER	WHT000771 WASHER	-	22	Enquire
010	2424900	COVER	2424900 COVER	-	1	Enquire
011	8850806	DOWEL	8850806 DOWEL	-	4	Enquire
012	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	-	1	Enquire
013	8400818	WASHER	8400818 WASHER	-	1	Enquire
014	2425223	ROD	2425223 ROD	-	2	Enquire
015	2425224	ROD	2425224 ROD	-	1	Enquire
016	8300895	STUD	8300895 STUD	-	2	Enquire
017	8300897	STUD	8300897 STUD	-	1	Enquire
018	8300916	STUD	8300916 STUD	-	9	Enquire
019	2430746	GEAR BOX CASE	2430746 GEAR BOX CASE	-	1	Enquire
020	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG	-	1	Enquire
021	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	12	Enquire
022	2435931	COVER	2435931 COVER	-	1	Enquire
023	8410602	WASHER	8410602 WASHER	-	4	Enquire
024	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG	-	1	Enquire
025	8100601	SCREW	8100601 SCREW	-	4	Enquire
026	8300627	STUD	8300627 STUD	-	6	Enquire
027	8410602	WASHER	8410602 WASHER	-	6	Enquire
028	N01100637	NUT M6	N01100637 NUT M6	-	6	Enquire
029	8801612	BUSHING	8801612 BUSHING	-	1	Enquire
030	8614804	SEAL	8614804 SEAL	-	1	Enquire
