BRAKE SYSTEM of Ferrari Ferrari GTC4Lusso

View All

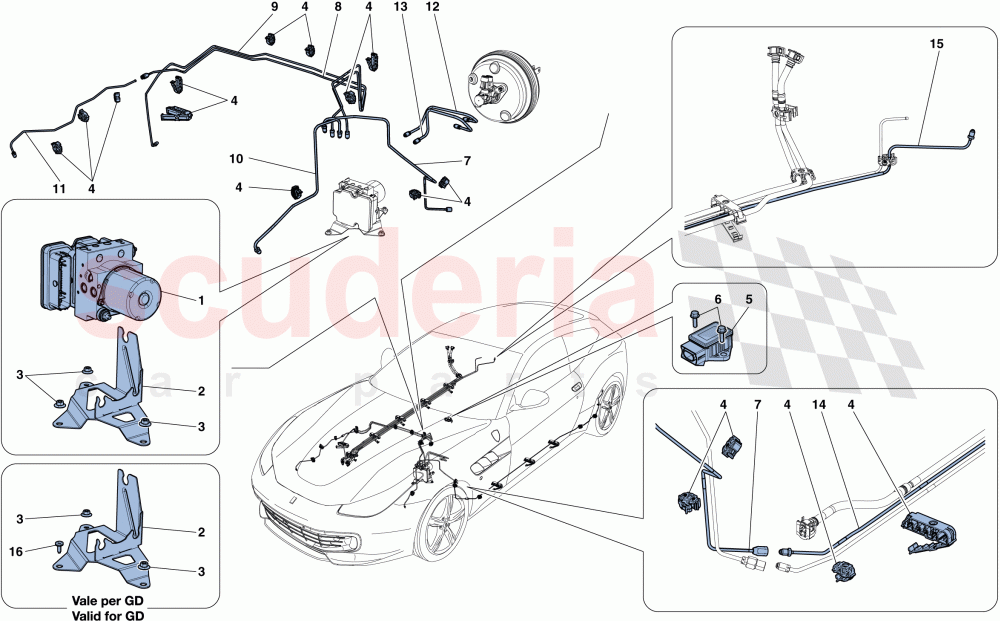

Ferrari GTC4Lusso - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	317229	HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316239	HYDRAULIC UNIT FASTENER BRACKET	Enquire	To Order
	311486	HYDRAULIC UNIT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241118	CLIP	Enquire	IN STOCK
	234284	CLIP	Enquire	IN STOCK
	303873	CLIP	Enquire	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	307688	YAW SENSOR	Enquire	To Order
	307688	YAW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309611	BRAKE PIPE TO LH REAR JUNCTION	Enquire	To Order
	340247	BRAKE PIPE TO LH REAR JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316191	BRAKE PIPE TO RH FRONT JUNCTION	Enquire	To Order
	311451	BRAKE PIPE TO RH FRONT JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311447	BRAKE PIPE TO RH REAR JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314596	BRAKE PIPE TO LH FRONT JUNCTION	Enquire	To Order
	340246	BRAKE PIPE TO LH FRONT JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268766	BRAKE PIPE FROM JUNCTION TO FRONT RH MODULE	Enquire	To Order
	274104	BRAKE PIPE FROM JUNCTION TO FRONT LH MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309620	REAR PUMP BRAKE PIPE	Enquire	To Order
	311445	REAR PUMP BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311437	FRONT PUMP BRAKE PIPE	Enquire	To Order
	309622	FRONT PUMP BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268771	BRAKE PIPE FROM JUNCTION TO LH REAR MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268773	BRAKE PIPE FROM JUNCTION TO RH REAR MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	317229	HYDRAULIC UNIT	317229 HYDRAULIC UNIT	-	1	Enquire
2	316239	HYDRAULIC UNIT FASTENER BRACKET	316239 HYDRAULIC UNIT FASTENER BRACKET Not for GD	-	1	Enquire
2	311486	HYDRAULIC UNIT FASTENER BRACKET	311486 HYDRAULIC UNIT FASTENER BRACKET Applicable for GD	-	1	Enquire
3	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable for GD IN STOCK	-	2	Enquire
3	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Not for GD IN STOCK	-	3	Enquire
4	241118	CLIP IN STOCK	241118 CLIP 5 compartments IN STOCK	-	1	Enquire
4	234284	CLIP IN STOCK	234284 CLIP 1 compartment IN STOCK	-	2	Enquire
4	303873	CLIP IN STOCK	303873 CLIP 1 compartment IN STOCK	-	2	Enquire
4	234285	CLIP IN STOCK	234285 CLIP 2 compartments IN STOCK	-	8	Enquire
4	234286	CLIP	234286 CLIP 4 compartments	-	2	Enquire
5	307688	YAW SENSOR	307688 YAW SENSOR Not for GD	-	1	Enquire
5	307688	YAW SENSOR	307688 YAW SENSOR Applicable for GD	-	1	Enquire
6	16286124	SCREW	16286124 SCREW M6 X 20	-	2	Enquire
7	309611	BRAKE PIPE TO LH REAR JUNCTION	309611 BRAKE PIPE TO LH REAR JUNCTION Not for GD	-	1	Enquire
7	340247	BRAKE PIPE TO LH REAR JUNCTION	340247 BRAKE PIPE TO LH REAR JUNCTION Applicable for GD	-	1	Enquire
8	316191	BRAKE PIPE TO RH FRONT JUNCTION	316191 BRAKE PIPE TO RH FRONT JUNCTION Not for GD	-	1	Enquire
8	311451	BRAKE PIPE TO RH FRONT JUNCTION	311451 BRAKE PIPE TO RH FRONT JUNCTION Applicable for GD	-	1	Enquire
9	311447	BRAKE PIPE TO RH REAR JUNCTION	311447 BRAKE PIPE TO RH REAR JUNCTION Applicable for GD	-	1	Enquire
10	314596	BRAKE PIPE TO LH FRONT JUNCTION	314596 BRAKE PIPE TO LH FRONT JUNCTION Not for GD	-	1	Enquire
10	340246	BRAKE PIPE TO LH FRONT JUNCTION	340246 BRAKE PIPE TO LH FRONT JUNCTION Applicable for GD	-	1	Enquire
11	268766	BRAKE PIPE FROM JUNCTION TO FRONT RH MODULE	268766 BRAKE PIPE FROM JUNCTION TO FRONT RH MODULE Not for GD	-	1	Enquire
11	274104	BRAKE PIPE FROM JUNCTION TO FRONT LH MODULE	274104 BRAKE PIPE FROM JUNCTION TO FRONT LH MODULE Applicable for GD	-	1	Enquire
12	309620	REAR PUMP BRAKE PIPE	309620 REAR PUMP BRAKE PIPE Not for GD	-	1	Enquire
12	311445	REAR PUMP BRAKE PIPE	311445 REAR PUMP BRAKE PIPE Applicable for GD	-	1	Enquire
13	311437	FRONT PUMP BRAKE PIPE	311437 FRONT PUMP BRAKE PIPE Applicable for GD	-	1	Enquire
13	309622	FRONT PUMP BRAKE PIPE	309622 FRONT PUMP BRAKE PIPE Not for GD	-	1	Enquire
14	268771	BRAKE PIPE FROM JUNCTION TO LH REAR MODULE	268771 BRAKE PIPE FROM JUNCTION TO LH REAR MODULE	-	1	Enquire
15	268773	BRAKE PIPE FROM JUNCTION TO RH REAR MODULE	268773 BRAKE PIPE FROM JUNCTION TO RH REAR MODULE	-	1	Enquire
16	80874100	SCREW IN STOCK	80874100 SCREW Applicable for GD IN STOCK	-	1	Enquire
