Ferrari GTC4Lusso - FUEL SYSTEM PUMPS AND PIPES

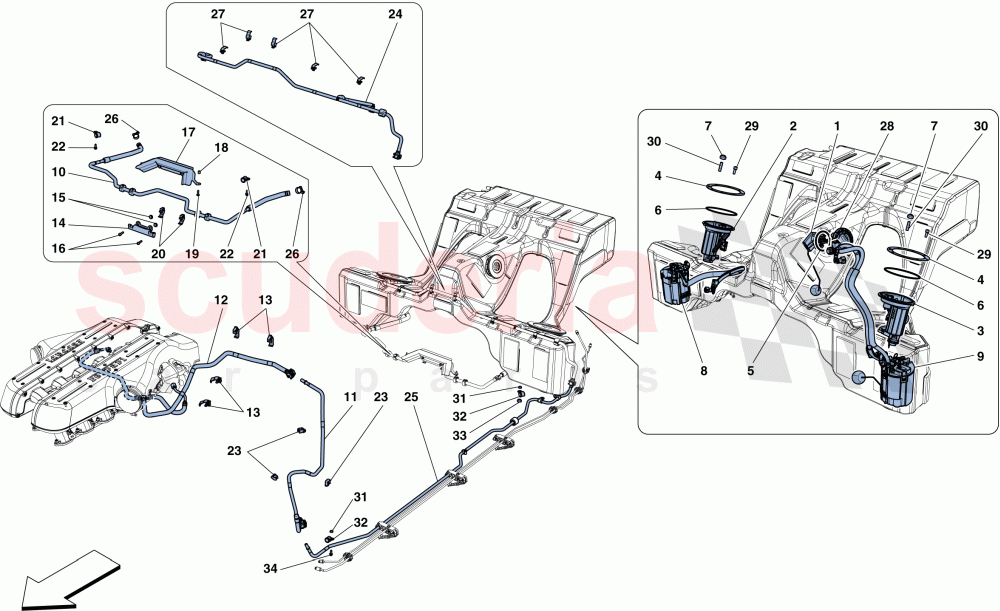

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	273540	COMPL. INCLINATION SENSOR	$2,051.57	To Order

Photo	Part No	Description	Price (each)	Stock
	282784	FUEL PUMP FILTER	$728.60	To Order

Photo	Part No	Description	Price (each)	Stock
	282785	FUEL PUMP FILTER	$1,152.72	To Order

Photo	Part No	Description	Price (each)	Stock
	275998	FASTENER RING	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	239413	O-RING	$5.46	To Order

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING	$6.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	272086	FUEL PUMP	$1,850.36	To Order

Photo	Part No	Description	Price (each)	Stock
	272087	LH FUEL PUMP	$1,682.36	To Order

Photo	Part No	Description	Price (each)	Stock
	272859	LOWER CONNECTOR PIPE	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	290293	FUEL DELIVERY PIPE, FRONT SECTION	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	289212	LOW PRESSURE FUEL PIPE	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	204777	CLIP	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	270767	LOWER PIPE SHIELD	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW M5 X 40	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	270768	LOWER PIPE HEAT SHIELD	$27.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW M5 X 40	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	257886	CLIP	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	235682	PIPE CLIP	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	285160	FUEL DELIVERY PIPE, REAR SECTION	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	271937	FUEL DELIVERY PIPE, CENTRE SECTION	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	281598	COLLAR	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	276001	FASTENER RING	$274.34	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	$70.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13604015	SPACER	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	273540	COMPL. INCLINATION SENSOR	273540 COMPL. INCLINATION SENSOR	$2,051.57 MSRP: ~~3,447.36~~ (40.5% off)	1
2	282784	FUEL PUMP FILTER	282784 FUEL PUMP FILTER	$728.60	1
3	282785	FUEL PUMP FILTER	282785 FUEL PUMP FILTER	$1,152.72	1
4	275998	FASTENER RING	275998 FASTENER RING	$78.61	2
5	239413	O-RING	239413 O-RING	$5.46 MSRP: ~~14.23~~ (61.6% off)	1
6	275314	O-RING	275314 O-RING	$6.97 MSRP: ~~7.65~~ (8.9% off)	2
7	13046011	NUT	13046011 NUT	$0.39	2
8	272086	FUEL PUMP	272086 FUEL PUMP	$1,850.36	1
9	272087	LH FUEL PUMP	272087 LH FUEL PUMP	$1,682.36	1
10	272859	LOWER CONNECTOR PIPE	272859 LOWER CONNECTOR PIPE	$415.69	1
11	290293	FUEL DELIVERY PIPE, FRONT SECTION	290293 FUEL DELIVERY PIPE, FRONT SECTION	$91.45	1
12	289212	LOW PRESSURE FUEL PIPE	289212 LOW PRESSURE FUEL PIPE	$481.36	1
13	204777	CLIP	204777 CLIP	$0.73	4
14	270767	LOWER PIPE SHIELD	270767 LOWER PIPE SHIELD	$38.69	1
15	14622387	CAP	14622387 CAP	$3.13	2
16	88831000	GRUB SCREW M5 X 40	88831000 GRUB SCREW M5 X 40 M5 X 20	$0.57	2
17	270768	LOWER PIPE HEAT SHIELD	270768 LOWER PIPE HEAT SHIELD	$27.21	1
18	13046011	NUT	13046011 NUT	$0.39	2
19	88831000	GRUB SCREW M5 X 40	88831000 GRUB SCREW M5 X 40 M5 X 20	$0.57	2
20	257886	CLIP	257886 CLIP	$0.75	2
21	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	2
22	16286121	SCREW	16286121 SCREW M6 X 18	$0.70 MSRP: ~~1.35~~ (48.1% off)	2
23	235682	PIPE CLIP	235682 PIPE CLIP	$0.71	4
24	285160	FUEL DELIVERY PIPE, REAR SECTION	285160 FUEL DELIVERY PIPE, REAR SECTION	$320.90	1
25	271937	FUEL DELIVERY PIPE, CENTRE SECTION	271937 FUEL DELIVERY PIPE, CENTRE SECTION	$64.17	1
26	281598	COLLAR	281598 COLLAR	$3.13	2
27	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	5
28	276001	FASTENER RING	276001 FASTENER RING	$274.34	1
29	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	20
30	11001124	STUD BOLT	11001124 STUD BOLT	$70.54	2
31	13604015	SPACER	13604015 SPACER	$0.83	3
32	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH D. 10	$0.57 MSRP: ~~1.68~~ (66.1% off)	3
33	14040614	NUT	14040614 NUT	$0.15	2
34	231619	SCREW	231619 SCREW M6 X 22	$0.31	1
