HYDRAULIC POWER STEERING BOX of Ferrari Ferrari GTC4Lusso

View All

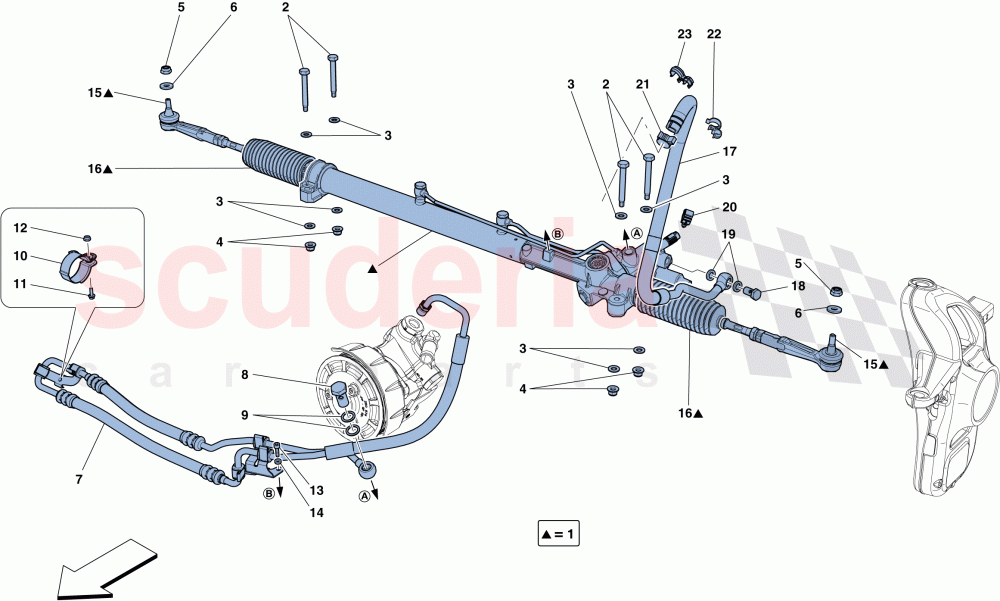

Ferrari GTC4Lusso - HYDRAULIC POWER STEERING BOX

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	256225	STEERING BOX	Enquire	To Order
	267116	STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277720	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12626224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333050	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order
	262353	PIPE FROM PUMP TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	Enquire	To Order
	276087	FUEL FILLER NECK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267866	COMPL. BRACKET	Enquire	To Order
	275430	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250196	ROD END FOR STEERING BOX	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	229521	STEERING BOX GAITER REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262354	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order
	268011	PIPE FROM STEERING BOX TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159918	CLIP SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333961	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	256225	STEERING BOX	256225 STEERING BOX Not for GD	-	1	Enquire
1	267116	STEERING BOX	267116 STEERING BOX Applicable for GD	-	1	Enquire
2	277720	SCREW	277720 SCREW M10 X 1.25 X 80	-	4	Enquire
3	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2 D. 10.5-21 X 2	-	8	Enquire
4	14058621	NUT	14058621 NUT	-	4	Enquire
5	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
6	12626224	WASHER	12626224 WASHER	-	2	Enquire
7	333050	PIPE FROM PUMP TO STEERING BOX	333050 PIPE FROM PUMP TO STEERING BOX Not for GD	-	1	Enquire
7	262353	PIPE FROM PUMP TO STEERING BOX	262353 PIPE FROM PUMP TO STEERING BOX Applicable for GD	-	1	Enquire
8	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5 Not for GD	-	1	Enquire
8	276087	FUEL FILLER NECK PIPE	276087 FUEL FILLER NECK PIPE Applicable for GD	-	1	Enquire
9	10261460	GASKET	10261460 GASKET	-	2	Enquire
10	267866	COMPL. BRACKET	267866 COMPL. BRACKET For fastening pipe to LH bracket on steering box	-	1	Enquire
10	275430	COMPL. BRACKET	275430 COMPL. BRACKET For fastening pipe to centre bracket on steering box; Applicable for GD	-	1	Enquire
11	81591700	SCREW	81591700 SCREW M5 X 20	-	1	Enquire
12	14040614	NUT	14040614 NUT Not for GD	-	1	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for GD	-	1	Enquire
13	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 10 ARRIVING SOON	-	1	Enquire
14	11181574	WASHER	11181574 WASHER	-	1	Enquire
15	250196	ROD END FOR STEERING BOX ARRIVING SOON	250196 ROD END FOR STEERING BOX ARRIVING SOON	-	2	Enquire
16	229521	STEERING BOX GAITER REPLACEMENT KIT	229521 STEERING BOX GAITER REPLACEMENT KIT	-	1	Enquire
17	262354	PIPE FROM STEERING BOX TO RADIATOR	262354 PIPE FROM STEERING BOX TO RADIATOR Applicable for GD	-	1	Enquire
17	268011	PIPE FROM STEERING BOX TO RADIATOR	268011 PIPE FROM STEERING BOX TO RADIATOR Not for GD	-	1	Enquire
18	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	1	Enquire
19	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	2	Enquire
20	259508	CLIP	259508 CLIP	-	1	Enquire
21	13127070	COLLAR	13127070 COLLAR	-	1	Enquire
22	159918	CLIP SET	159918 CLIP SET	-	1	Enquire
23	333961	CLIP	333961 CLIP	-	1	Enquire
