COOLING - HEADER TANK AND PIPES of Ferrari Ferrari GTC4Lusso

View All

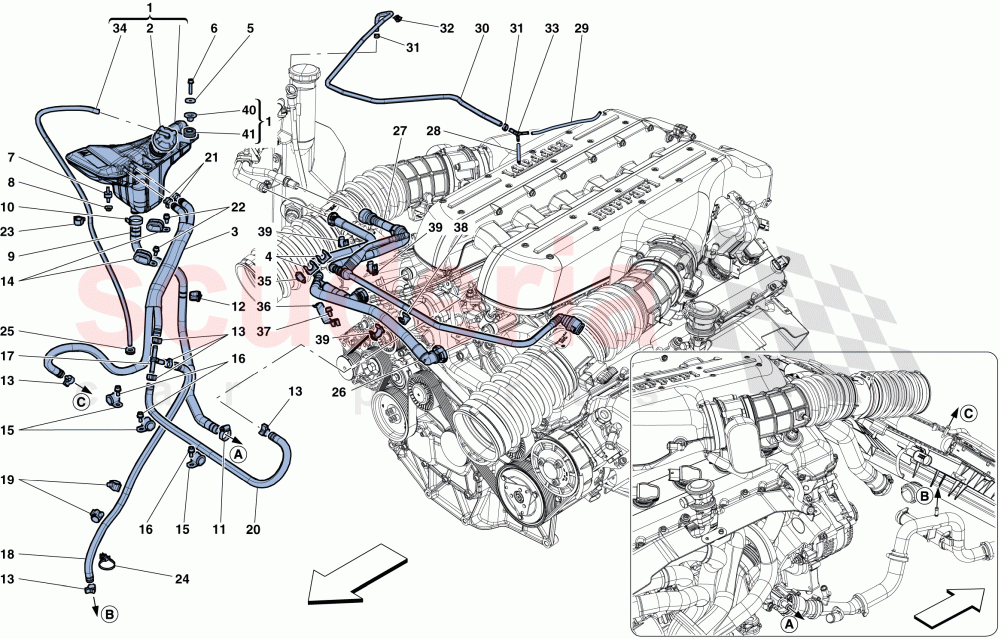

Ferrari GTC4Lusso - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	305322	HEADER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323245	HEADER PIPE COMPL. WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267798	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330758	WATER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253512	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314287	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281900	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279762	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317932	VAPOUR PIPE FROM FRONT HEAD	Enquire	To Order
	315842	VAPOUR PIPE FROM FRONT HEAD	Enquire	To Order
	315842	VAPOUR PIPE FROM FRONT HEAD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	315843	BLOW-BY PIPE FROM TANK	Enquire	To Order
	271275	BLOW-BY PIPE FROM TANK	Enquire	To Order
	271275	BLOW-BY PIPE FROM TANK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	165608	RUBBER PIPE	Enquire	To Order
	165608	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159542	RUBBER PIPE	Enquire	To Order
	159542	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291833	RUBBER PIPE	Enquire	To Order
	291833	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241986	COLLAR FOR HOSE UNION	Enquire	To Order
	241986	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258855	3-WAY CONNECTOR	Enquire	To Order
	258855	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305321	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209864	ANCHOR FOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268074	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	Enquire	To Order
	140130	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140728	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286491	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286492	CABLE GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	305322	HEADER TANK	305322 HEADER TANK	-	1	Enquire
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
3	323245	HEADER PIPE COMPL. WITH SHEATH	323245 HEADER PIPE COMPL. WITH SHEATH	-	1	Enquire
4	140727	CLIP	140727 CLIP	-	2	Enquire
5	12648925	WASHER	12648925 WASHER	-	2	Enquire
6	231620	SCREW	231620 SCREW	-	2	Enquire
7	267798	BUSH	267798 BUSH	-	1	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
9	330758	WATER HOSE	330758 WATER HOSE	-	1	Enquire
10	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
11	296778	SCREW COLLAR	296778 SCREW COLLAR	-	1	Enquire
12	270085	CLIP	270085 CLIP	-	1	Enquire
13	13126970	COLLAR	13126970 COLLAR	-	6	Enquire
14	253512	BRACKET	253512 BRACKET	-	2	Enquire
15	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	3	Enquire
16	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	3	Enquire
17	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	-	1	Enquire
18	314287	RUBBER PIPE	314287 RUBBER PIPE	-	1	Enquire
19	198253	CLIP	198253 CLIP	-	2	Enquire
20	281900	RUBBER PIPE	281900 RUBBER PIPE	-	1	Enquire
21	13126970	COLLAR	13126970 COLLAR	-	2	Enquire
22	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
23	198253	CLIP	198253 CLIP	-	1	Enquire
24	279762	CLAMP	279762 CLAMP	-	1	Enquire
25	10397380	CABLE GROMMET	10397380 CABLE GROMMET No longer supplied	-	1	Enquire
26	317932	VAPOUR PIPE FROM FRONT HEAD	317932 VAPOUR PIPE FROM FRONT HEAD Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
26	315842	VAPOUR PIPE FROM FRONT HEAD	315842 VAPOUR PIPE FROM FRONT HEAD Applicable for EU GS, AUS, UK; Applicable from Ass. No. 150240	-	1	Enquire
26	315842	VAPOUR PIPE FROM FRONT HEAD	315842 VAPOUR PIPE FROM FRONT HEAD Applicable for USA, CDN, USA LIGHT	-	1	Enquire
26	317932	VAPOUR PIPE FROM FRONT HEAD	317932 VAPOUR PIPE FROM FRONT HEAD Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
27	315843	BLOW-BY PIPE FROM TANK	315843 BLOW-BY PIPE FROM TANK Applicable for USA, CDN, USA LIGHT	-	1	Enquire
27	271275	BLOW-BY PIPE FROM TANK	271275 BLOW-BY PIPE FROM TANK Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
27	271275	BLOW-BY PIPE FROM TANK	271275 BLOW-BY PIPE FROM TANK Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
27	315843	BLOW-BY PIPE FROM TANK	315843 BLOW-BY PIPE FROM TANK Applicable for EU GS, AUS, UK; Applicable from Ass. No. 150240	-	1	Enquire
28	165608	RUBBER PIPE	165608 RUBBER PIPE Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
28	165608	RUBBER PIPE	165608 RUBBER PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
29	159542	RUBBER PIPE	159542 RUBBER PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
29	159542	RUBBER PIPE	159542 RUBBER PIPE Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
30	291833	RUBBER PIPE	291833 RUBBER PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
30	291833	RUBBER PIPE	291833 RUBBER PIPE Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
31	241986	COLLAR FOR HOSE UNION	241986 COLLAR FOR HOSE UNION Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	2	Enquire
31	241986	COLLAR FOR HOSE UNION	241986 COLLAR FOR HOSE UNION Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	2	Enquire
32	140727	CLIP	140727 CLIP Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	3	Enquire
32	140727	CLIP	140727 CLIP Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	3	Enquire
33	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
33	258855	3-WAY CONNECTOR	258855 3-WAY CONNECTOR Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
34	305321	RUBBER PIPE	305321 RUBBER PIPE	-	1	Enquire
35	209864	ANCHOR FOR CLIP	209864 ANCHOR FOR CLIP	-	1	Enquire
36	268074	BRACKET	268074 BRACKET	-	1	Enquire
37	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
38	140130	CLIP	140130 CLIP Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 150239	-	1	Enquire
38	140130	CLIP	140130 CLIP Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
39	140728	CLIP	140728 CLIP	-	3	Enquire
40	286491	SPACER	286491 SPACER	-	2	Enquire
41	286492	CABLE GROMMET	286492 CABLE GROMMET	-	2	Enquire
