STEERING CONTROL

Find Your Part

Ferrari GTC4Lusso - STEERING CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
89045100 COMPL. STEERING WHEEL $8,752.68 To Order
89045300 COMPL. STEERING WHEEL $8,913.22 To Order
89044500 COMPL. STEERING WHEEL $12,167.65 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
301723 SCREW $107.49 To Order
Photo Part No Description Price (each) Stock
14506587 PLUG $0.21 To Order
Photo Part No Description Price (each) Stock
320095 COMPL. STEERING COLUMN $3,356.80 To Order
Photo Part No Description Price (each) Stock
327251 SHIFT PADDLE ASSEMBLY $3,119.32 To Order
327250 SHIFT PADDLE ASSEMBLY $1,903.04 To Order
Photo Part No Description Price (each) Stock
309296 STEERING ANGLE SENSOR $230.96 To Order
Photo Part No Description Price (each) Stock
13434970 COLLAR $2.29 To Order
Photo Part No Description Price (each) Stock
237433 STEERING COLUMN GAITER FASTENER PLATE $52.94 To Order
Photo Part No Description Price (each) Stock
331744 STEERING COLUMN GAITER SOUNDPROOFING SEAL $12.74 To Order
Photo Part No Description Price (each) Stock
250645 RING NUT $0.75 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
16287321 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
12646704 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
245173 SCREW $0.89 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
87080000 LOWER STEERING COLUMN SHIELD $516.03 To Order
Photo Part No Description Price (each) Stock
88930000 UPPER STEERING COLUMN SHIELD $516.03 To Order
Photo Part No Description Price (each) Stock
86592000 LOWER BRACKET FOR LOWER STEERING COLUMN TRIM $54.46 To Order
Photo Part No Description Price (each) Stock
86431600 UPPER BRACKET FOR LOWER STEERING COLUMN TRIM $15.07 To Order
Photo Part No Description Price (each) Stock
87690900 ENGINE BUTTON MOUNTING BRACKET $25.79 To Order
Photo Part No Description Price (each) Stock
88133500 UPPER STEERING COLUMN TRIM BRACKET $24.34 To Order
Photo Part No Description Price (each) Stock
68002000 RUBBER PAD $3.71 To Order
Photo Part No Description Price (each) Stock
321836 STEERING WHEEL PANEL Enquire To Order
328283 STEERING WHEEL PANEL Enquire To Order
Photo Part No Description Price (each) Stock
337526 COMPL. CONTROLS Enquire To Order
337527 COMPL. CONTROLS Enquire To Order
337520 STEERING WHEEL NODE $4,640.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
337522 NVO ELECTRONIC BOARD Enquire To Order
Photo Part No Description Price (each) Stock
321838 MAIN SHELL Enquire To Order
Photo Part No Description Price (each) Stock
321854 MAIN NVO MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
321855 MANETTINO LEVER Enquire To Order
Photo Part No Description Price (each) Stock
333373 MANETTINO DECAL Enquire To Order
334349 MANETTINO DECAL Enquire To Order
Photo Part No Description Price (each) Stock
321857 SHOCK ABSORBER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
321858 ENGINE START/STOP BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
321859 LH STEERING COLUMN STALK Enquire To Order
327864 RH STEERING COLUMN STALK Enquire To Order
325782 RH STEERING COLUMN STALK Enquire To Order
Photo Part No Description Price (each) Stock
330415 LH TURN INDICATORS Enquire To Order
330416 RH TURN INDICATORS Enquire To Order
Photo Part No Description Price (each) Stock
321863 VR BUTTON Enquire To Order
331006 VR BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
331007 TEL BUTTON Enquire To Order
321864 TEL BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
328199 HORN WIRING HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
335485 COMPL. CONTACT BRIDGE Enquire To Order
Photo Part No Description Price (each) Stock
321866 LH NIT THUMBWHEEL CONTROL $372.69 To Order
321865 RH NIT THUMBWHEEL CONTROL $372.69 To Order
Photo Part No Description Price (each) Stock
337519 STEERING WHEEL NODE Enquire To Order
337520 STEERING WHEEL NODE $4,640.48 To Order
337517 STEERING WHEEL NODE $4,761.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
828381 CLOCK SPRING CONNECTOR LOCK RING $6.26 To Order
View All

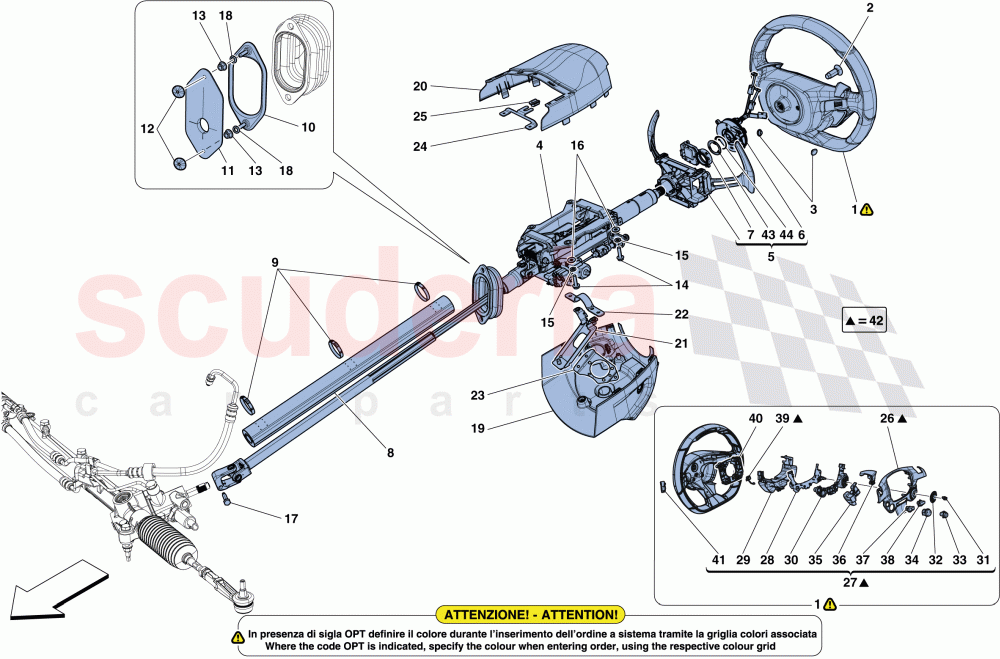

STEERING CONTROL of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 89045100
COMPL. STEERING WHEEL
INTP; Version with upper and lower rim in Alcantara; INTP for leather colour option, STWA for Alcantara colour; STWA; STIC 		$8,752.68 1
1 89045300
COMPL. STEERING WHEEL
INTP; Version with upper and lower rim in Alcantara; INTP for leather colour option, STWA for Alcantara colour; With rear windscreen wiper; STWA; STIC 		$8,913.22 1
1 89044500
COMPL. STEERING WHEEL
INTP; Leather; Carbon; STIC; Version with LEDs 		$12,167.65 1
1 89044600
COMPL. STEERING WHEEL
INTP; Leather; Carbon; With rear windscreen wiper; STIC; Version with LEDs 		$12,350.58 1
1 89044000
COMPL. STEERING WHEEL
INTP; Leather; STIC 		$7,881.77 1
1 89044400
COMPL. STEERING WHEEL
INTP; Leather; With rear windscreen wiper; STIC 		$8,080.38 1
2 301723
SCREW 		$107.49 1
3 14506587
PLUG 		$0.21 (65% off) 2
4 320095
COMPL. STEERING COLUMN 		$3,356.80 1
5 327251
SHIFT PADDLE ASSEMBLY
Carbon 		$3,119.32 1
5 327250
SHIFT PADDLE ASSEMBLY 		$1,903.04 1
6 327252
CLOCK SPRING CONTACT 		$529.50 1
7 309296
STEERING ANGLE SENSOR 		$230.96 1
9 13434970
COLLAR
Applicable up to Ass. No. 140951; Applicable until depletion 		$2.29 3
10 237433
STEERING COLUMN GAITER FASTENER PLATE 		$52.94 1
11 331744
STEERING COLUMN GAITER SOUNDPROOFING SEAL 		$12.74 1
12 250645
RING NUT 		$0.75 2
13 14059211
NUT 		$0.06 2
14 16287321
SCREW 		$0.23 4
15 84653800
WASHER 		$5.75 4
16 12646704
WASHER 		$0.11 4
17 245173
SCREW 		$0.89 1
18 14498801
WASHER 		$0.11 (45% off) 2
19 87080000
LOWER STEERING COLUMN SHIELD 		$516.03 1
20 88930000
UPPER STEERING COLUMN SHIELD 		$516.03 1
21 86592000
LOWER BRACKET FOR LOWER STEERING COLUMN TRIM 		$54.46 1
22 86431600
UPPER BRACKET FOR LOWER STEERING COLUMN TRIM 		$15.07 1
23 87690900
ENGINE BUTTON MOUNTING BRACKET 		$25.79 1
24 88133500
UPPER STEERING COLUMN TRIM BRACKET 		$24.34 1
25 68002000
RUBBER PAD 		$3.71 1
26 321836
STEERING WHEEL PANEL
Not for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
26 328283
STEERING WHEEL PANEL
Applicable for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
27 337526
COMPL. CONTROLS
Applicable for carbon steering wheel; Without rear screen wiper; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
27 337527
COMPL. CONTROLS
Applicable for carbon steering wheel; With rear windscreen wiper; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
27 337520
STEERING WHEEL NODE
Not for carbon steering wheel; Without rear screen wiper; Replaced by compl. steering wheel node; No longer supplied 		$4,640.48 1
27 337517
STEERING WHEEL NODE
Not for carbon steering wheel; With rear windscreen wiper; Replaced by compl. steering wheel node; No longer supplied 		$4,761.93 1
28 337522
NVO ELECTRONIC BOARD
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
29 321838
MAIN SHELL
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
30 321854
MAIN NVO MOUNT
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
31 321855
MANETTINO LEVER
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
32 333373
MANETTINO DECAL
Not for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
32 334349
MANETTINO DECAL
Applicable for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
33 321857
SHOCK ABSORBER BUTTON
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
34 321858
ENGINE START/STOP BUTTON
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
35 321859
LH STEERING COLUMN STALK
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
35 327864
RH STEERING COLUMN STALK
Without rear screen wiper; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
35 325782
RH STEERING COLUMN STALK
With rear windscreen wiper; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
36 330415
LH TURN INDICATORS
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
36 330416
RH TURN INDICATORS
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
37 321863
VR BUTTON
Not for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
37 331006
VR BUTTON
Applicable for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
38 331007
TEL BUTTON
Applicable for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
38 321864
TEL BUTTON
Not for carbon steering wheel; Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
39 328199
HORN WIRING HARNESS
Replaced by compl. steering wheel node; No longer supplied 		- 1 Enquire
40 335485
COMPL. CONTACT BRIDGE
Replaced by compl. steering wheel; No longer supplied 		- 1 Enquire
41 321866
LH NIT THUMBWHEEL CONTROL 		$372.69 1
41 321865
RH NIT THUMBWHEEL CONTROL 		$372.69 1
42 337519
STEERING WHEEL NODE
Applicable for carbon steering wheel; With rear windscreen wiper; Currently out of order, comes with compl. steering wheel 89044600 ref.1; No longer supplied 		- 1 Enquire
42 337520
STEERING WHEEL NODE
Not for carbon steering wheel; Without rear screen wiper 		$4,640.48 1
42 337517
STEERING WHEEL NODE
Not for carbon steering wheel; With rear windscreen wiper 		$4,761.93 1
42 337518
STEERING WHEEL NODE
Applicable for carbon steering wheel; Without rear screen wiper; Currently out of order, comes with compl. steering wheel 89044500 ref.1; No longer supplied 		- 1 Enquire
43 828381
CLOCK SPRING CONNECTOR LOCK RING 		$6.26 1
44 828380
CLOCK SPRING CONNECTOR SPRING 		$1.65 1
