Find Your Part

View All

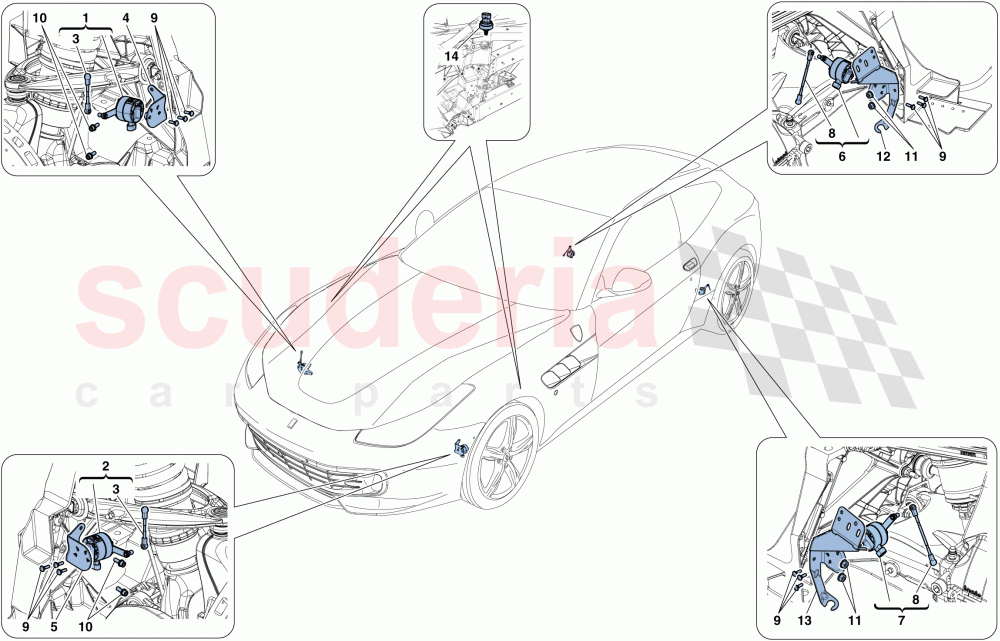

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	253164	COMPL. RH FRONT MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253162	COMPL. LH FRONT MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253165	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263090	RH FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263089	LH FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259266	REAR RH MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259265	COMPL. REAR LH MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229653	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217456	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326365	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326364	LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263079	ACCELEROMETER FOR MAGNERIDE SYSTEM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	253164	COMPL. RH FRONT MOTION SENSOR	253164 COMPL. RH FRONT MOTION SENSOR	-	1	Enquire
2	253162	COMPL. LH FRONT MOTION SENSOR	253162 COMPL. LH FRONT MOTION SENSOR	-	1	Enquire
3	253165	POTENTIOMETER LINK	253165 POTENTIOMETER LINK L. 72.2 mm	-	2	Enquire
4	263090	RH FRONT BRACKET	263090 RH FRONT BRACKET	-	1	Enquire
5	263089	LH FRONT BRACKET	263089 LH FRONT BRACKET	-	1	Enquire
6	259266	REAR RH MOTION SENSOR	259266 REAR RH MOTION SENSOR	-	1	Enquire
7	259265	COMPL. REAR LH MOTION SENSOR	259265 COMPL. REAR LH MOTION SENSOR	-	1	Enquire
8	229653	POTENTIOMETER LINK	229653 POTENTIOMETER LINK L. 115 mm	-	2	Enquire
9	217456	SCREW	217456 SCREW	-	12	Enquire
10	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
11	86574700	SCREW	86574700 SCREW M6 X 16	-	4	Enquire
12	326365	RH REAR BRACKET	326365 RH REAR BRACKET	-	1	Enquire
13	326364	LH REAR BRACKET	326364 LH REAR BRACKET	-	1	Enquire
14	263079	ACCELEROMETER FOR MAGNERIDE SYSTEM	263079 ACCELEROMETER FOR MAGNERIDE SYSTEM	-	3	Enquire
