REAR BRAKE CALLIPERS of Ferrari Ferrari GTC4Lusso

View All

Ferrari GTC4Lusso - REAR BRAKE CALLIPERS

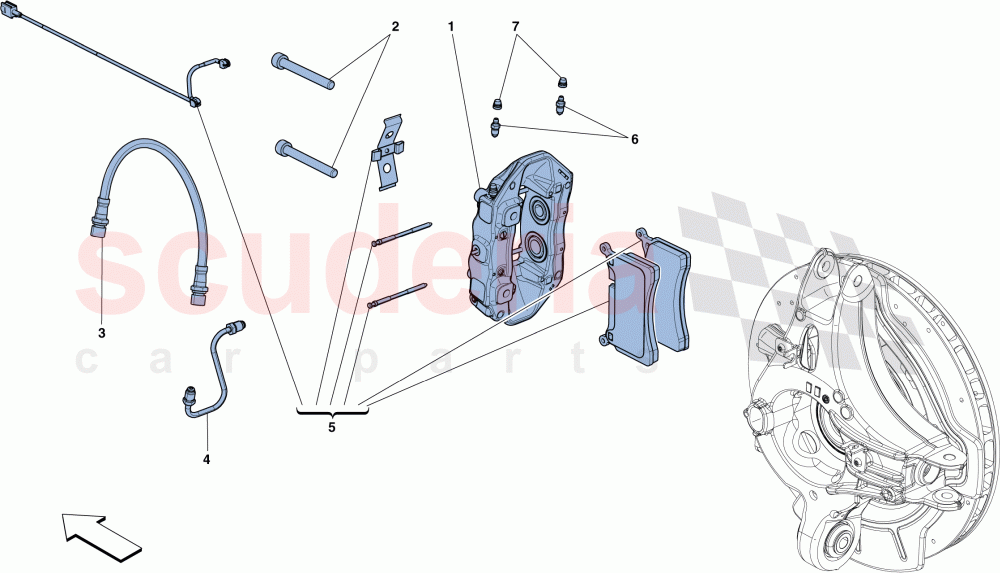

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315591	REAR LH CALLIPER WITH PADS	Enquire	To Order
	315593	REAR LH CALLIPER WITH PADS	Enquire	To Order
	315587	REAR LH CALLIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	977797	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	Enquire	To Order
	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

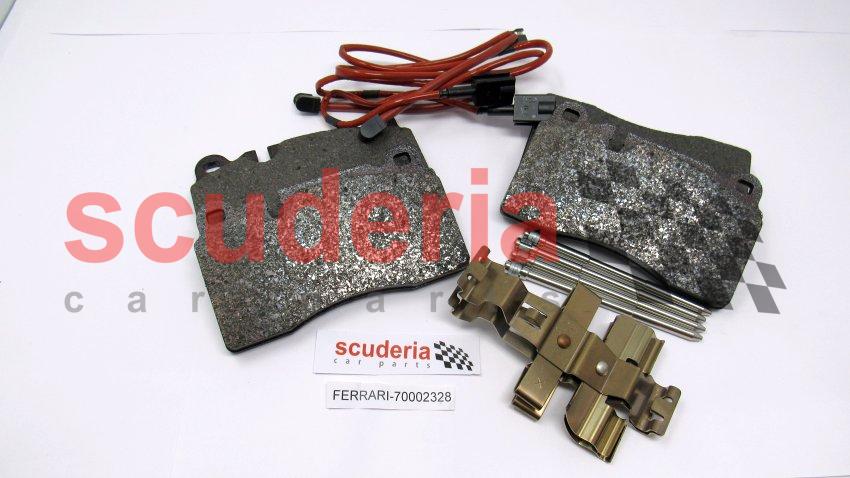

	70002328	Rear Brake Pad Set With Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315591	REAR LH CALLIPER WITH PADS	315591 REAR LH CALLIPER WITH PADS Gold	-	1	Enquire
1	315593	REAR LH CALLIPER WITH PADS	315593 REAR LH CALLIPER WITH PADS Blue	-	1	Enquire
1	315587	REAR LH CALLIPER WITH PADS	315587 REAR LH CALLIPER WITH PADS Silver	-	1	Enquire
1	315585	REAR LH CALLIPER WITH PADS	315585 REAR LH CALLIPER WITH PADS Yellow	-	1	Enquire
1	315583	REAR LH CALLIPER WITH PADS	315583 REAR LH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	315581	REAR LH CALLIPER WITH PADS	315581 REAR LH CALLIPER WITH PADS Red	-	1	Enquire
1	315592	REAR RH CALLIPER WITH PADS	315592 REAR RH CALLIPER WITH PADS Gold	-	1	Enquire
1	315594	REAR RH CALLIPER WITH PADS	315594 REAR RH CALLIPER WITH PADS Blue	-	1	Enquire
1	315577	REAR LH CALLIPER WITH PADS	315577 REAR LH CALLIPER WITH PADS Anodised black	-	1	Enquire
1	315579	REAR LH CALLIPER WITH PADS	315579 REAR LH CALLIPER WITH PADS Black	-	1	Enquire
1	315589	REAR LH CALLIPER WITH PADS	315589 REAR LH CALLIPER WITH PADS Dark grey	-	1	Enquire
1	315586	REAR RH CALLIPER WITH PADS	315586 REAR RH CALLIPER WITH PADS Yellow	-	1	Enquire
1	315584	REAR RH CALLIPER WITH PADS	315584 REAR RH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	315582	REAR RH CALLIPER WITH PADS	315582 REAR RH CALLIPER WITH PADS Red	-	1	Enquire
1	315578	REAR RH CALLIPER WITH PADS	315578 REAR RH CALLIPER WITH PADS Anodised black	-	1	Enquire
1	315580	REAR RH CALLIPER WITH PADS	315580 REAR RH CALLIPER WITH PADS Black	-	1	Enquire
1	315590	REAR RH CALLIPER WITH PADS	315590 REAR RH CALLIPER WITH PADS Dark grey	-	1	Enquire
1	315588	REAR RH CALLIPER WITH PADS	315588 REAR RH CALLIPER WITH PADS Silver	-	1	Enquire
2	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 105	-	4	Enquire
3	977797	HOSE	977797 HOSE	-	2	Enquire
4	294292	BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	294292 BRAKE PIPE FROM LH CALLIPER TO FLEXIBLE HOSE	-	1	Enquire
4	294294	BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	294294 BRAKE PIPE FROM RH CALLIPER TO FLEXIBLE HOSE	-	1	Enquire
5	70002328	Rear Brake Pad Set With Spring	70002328 Rear Brake Pad Set With Spring	-	1	Enquire
6	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
7	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
