FRONT SUSPENSION - ARMS

Find Your Part

Ferrari GTC4Lusso - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
269263 RH FRONT UPPER ARM $978.79 To Order
269262 LH FRONT UPPER ARM $978.79 To Order
Photo Part No Description Price (each) Stock
268897 RH FRONT LOWER ARM $1,412.03 To Order
268896 LH FRONT LOWER ARM $1,331.80 To Order
Photo Part No Description Price (each) Stock
268378 COMPL. RH FRONT HUB CARRIER $2,548.09 To Order
268377 COMPL. LH FRONT HUB CARRIER $2,548.09 To Order
Photo Part No Description Price (each) Stock
259615 ABS SENSOR $218.81 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
238884 ADJUSTMENT SHIM $5.59 To Order
238885 CAMBER SPACER 4MM $5.77 To Order
238694 ADJUSTMENT SHIM $5.59 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
274461 RH JOINT BRACKET $83.42 To Order
274460 LH JOINT BRACKET $83.42 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
View All

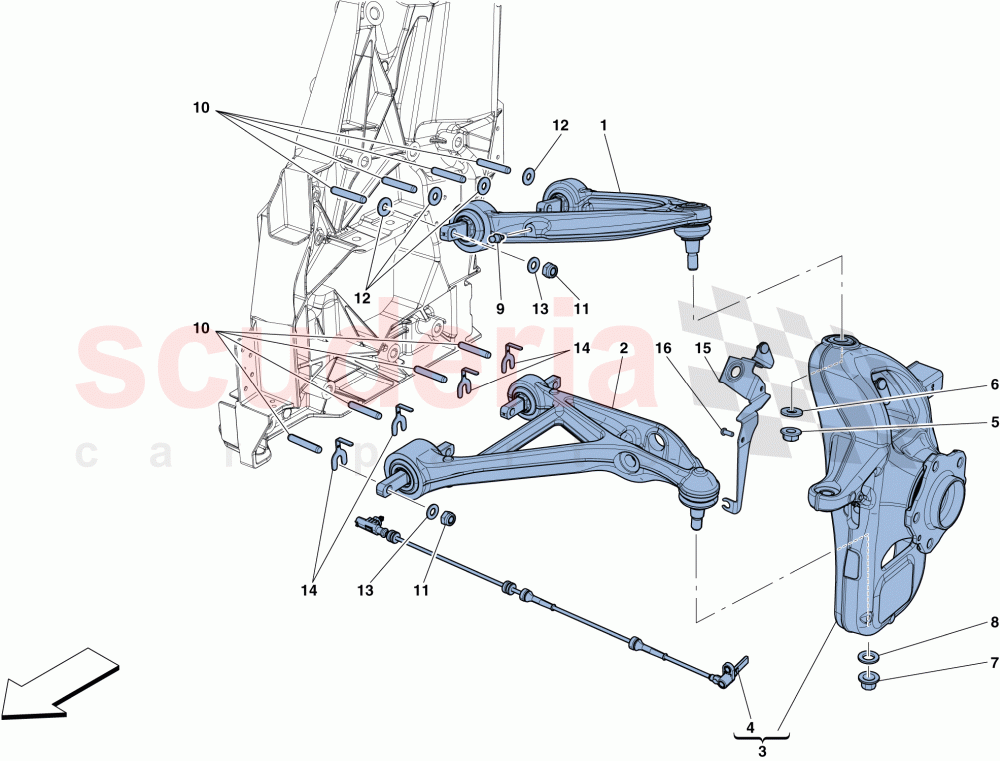

FRONT SUSPENSION - ARMS of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 269263
RH FRONT UPPER ARM 		$978.79 (28.3% off) 1
1 269262
LH FRONT UPPER ARM 		$978.79 (28.3% off) 1
2 268897
RH FRONT LOWER ARM 		$1,412.03 1
2 268896
LH FRONT LOWER ARM 		$1,331.80 1
3 268378
COMPL. RH FRONT HUB CARRIER 		$2,548.09 1
3 268377
COMPL. LH FRONT HUB CARRIER 		$2,548.09 (23.9% off) 1
4 259615
ABS SENSOR 		$218.81 (9.4% off) 2
5 149807
NUT 		$1.18 (41% off) 2
6 12646921
WASHER 		$0.53 2
7 203795
NUT 		$2.58 2
8 241689
WASHER 		$7.68 2
9 343376
BALL JOINT 		$22.45 2
10 264528
THREADED ROD 		$3.94 16
11 12574521
Nyloc Nut 		$0.92 (54% off) 16
12 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 4
12 126648
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$1.91 4
13 126648
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$1.91 16
14 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 8
14 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 8
14 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 8
14 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 8
14 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 8
14 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 8
14 238692
ADJUSTMENT SHIM
Th. 0.5 mm 		$6.55 8
14 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 8
15 274461
RH JOINT BRACKET 		$83.42 1
15 274460
LH JOINT BRACKET 		$83.42 1
16 250657
SCREW
M6 X 14 		$7.60 4
