REAR SUSPENSION - ARMS

Find Your Part

Ferrari GTC4Lusso - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
259687 REAR UPPER ARM $449.27 To Order
Photo Part No Description Price (each) Stock
329244 COMPL. LOWER RH REAR ARM $997.18 To Order
911176 LH LOWER REAR ARM $1,139.25 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $25.85 To Order
Photo Part No Description Price (each) Stock
238063 NUT $4.17 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 To Order
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $17.63 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $33.39 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
330990 COMPL. LH ACTUATOR $7,159.28 To Order
330992 COMPL. RH ACTUATOR $7,159.28 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
262543 ADJUSTER SHIM $9.50 To Order
262539 ADJUSTER SHIM $9.50 To Order
262540 ADJUSTER SHIM $9.50 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
Photo Part No Description Price (each) Stock
294850 LH HUB CARRIER $2,103.61 To Order
294851 RH HUB CARRIER $2,103.61 To Order
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $401.13 To Order
Photo Part No Description Price (each) Stock
251744 TRIPLE CLIP $1.46 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
13578321 WASHER $0.52 To Order
Photo Part No Description Price (each) Stock
302406 THREADED ROD $2.43 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
294300 LH BRACKET $22.45 To Order
294301 RH BRACKET $22.45 To Order
Photo Part No Description Price (each) Stock
291678 CONNECTOR RETAINER CLIP $0.26 To Order
Photo Part No Description Price (each) Stock
303508 CLIP $0.49 To Order
View All

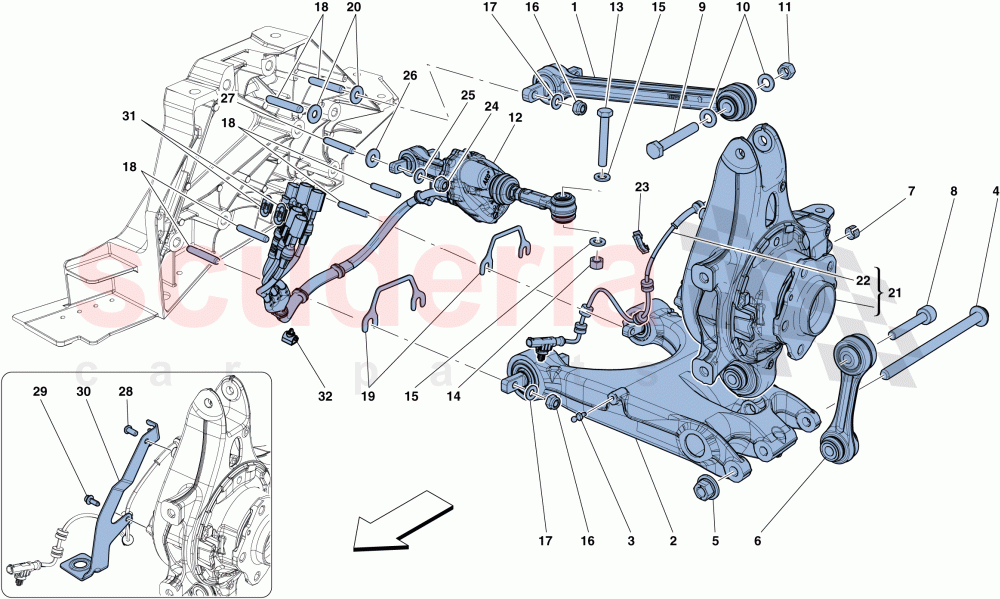

REAR SUSPENSION - ARMS of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 259687
REAR UPPER ARM 		$449.27 (27.4% off) 2
2 329244
COMPL. LOWER RH REAR ARM 		$997.18 1
2 911176
LH LOWER REAR ARM 		$1,139.25 1
3 343376
BALL JOINT 		$22.45 2
4 238656
SPECIAL SCREW 		$25.85 (5.6% off) 2
5 238063
NUT 		$4.17 (24.2% off) 2
6 259688
ANTI-ROTATION LINKAGE 		$192.54 2
7 222956
COMPENSATOR RING 		$17.63 2
8 238258
SCREW
M12 X 1.25 X 75 		$33.39 2
9 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 2
10 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
11 203666
NUT 		$0.94 (53% off) 2
12 330990
COMPL. LH ACTUATOR 		$7,159.28 1
12 330992
COMPL. RH ACTUATOR 		$7,159.28 1
13 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 2
14 203666
NUT 		$0.94 (53% off) 2
15 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
16 12574521
Nyloc Nut 		$0.92 (54% off) 12
17 126648
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$1.91 12
18 264528
THREADED ROD 		$3.94 12
19 262543
ADJUSTER SHIM
Th. 4 mm 		$9.50 4
19 262539
ADJUSTER SHIM
Th. 2 mm 		$9.50 4
19 262540
ADJUSTER SHIM
Th. 2.5 mm 		$9.50 4
19 262541
ADJUSTER SHIM
Th. 3 mm 		$9.50 4
19 262542
ADJUSTER SHIM
Th. 3.5 mm 		$9.50 4
19 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 4
19 262545
ADJUSTER SHIM
Th. 1 mm 		$9.50 4
19 262546
ADJUSTER SHIM
Th. 1.5 mm 		$9.50 4
20 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 4
21 294850
LH HUB CARRIER 		$2,103.61 (39% off) 1
21 294851
RH HUB CARRIER 		$2,103.61 1
22 269415
ABS SENSOR 		$401.13 2
23 251744
TRIPLE CLIP 		$1.46 (23.2% off) 4
24 104030
NUT 		$0.26 (74% off) 4
25 14496524
WASHER 		$0.11 (92.7% off) 4
26 13578321
WASHER 		$0.52 4
27 302406
THREADED ROD 		$2.43 4
28 250657
SCREW
M6 X 14 		$7.60 2
29 16286121
SCREW
M6 X 18 		$0.70 (48.1% off) 2
30 294300
LH BRACKET 		$22.45 1
30 294301
RH BRACKET 		$22.45 1
31 291678
CONNECTOR RETAINER CLIP 		$0.26 4
32 303508
CLIP 		$0.49 2
