Name: WHEELS
Rating: 5.0 (1 reviews)

View All

Ferrari GTC4Lusso - WHEELS

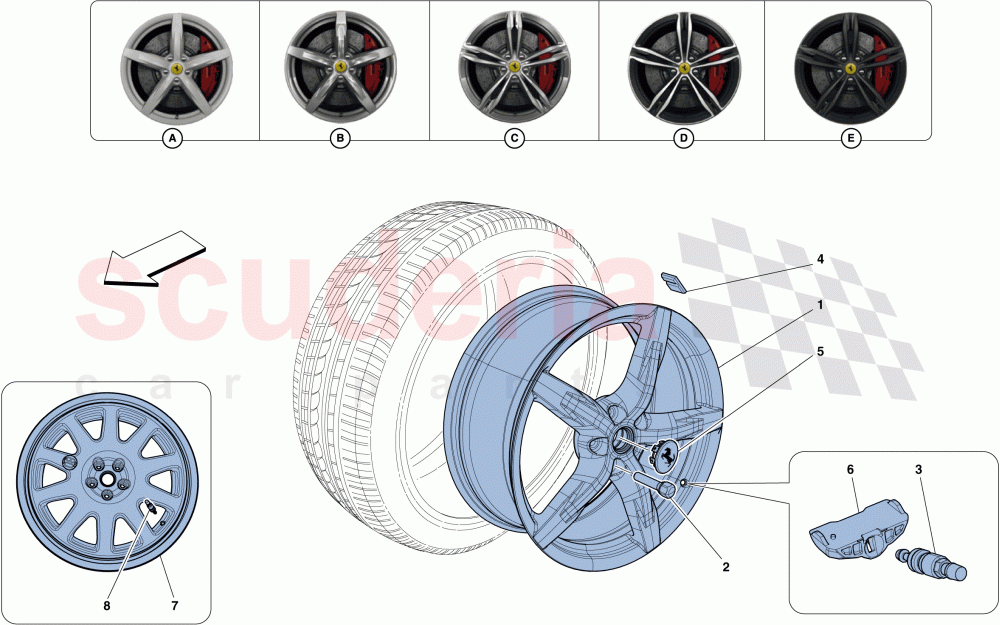

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	328869	REAR WHEEL	$4,965.66	To Order
	328457	REAR WHEEL	$4,906.70	To Order
	328871	REAR WHEEL	$5,509.82	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70006039	WHEEL STUD BOLT KIT	$545.55	ARRIVING SOON
	55031812	WHEEL STUD BOLT	$39.09	To Order

Photo	Part No	Description	Price (each)	Stock
	185328	Valve - Tyre Pressure Monitoring System	$21.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	777770	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$196.80	IN STOCK
	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$185.26	To Order

Photo	Part No	Description	Price (each)	Stock
	240241	SPARE WHEEL RIM	$3,410.95	To Order

Photo	Part No	Description	Price (each)	Stock
	317250104	VALVE	$15.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	328869	REAR WHEEL	328869 REAR WHEEL 10.5J X 20"; Forged painted matt Corsa grey; See box E; Modis code RIFS	$4,965.66	2
1	328457	REAR WHEEL	328457 REAR WHEEL 10.5J X 20"; Forged, chrome paint finish; See box C; Modis code RMSV	$4,906.70	2
1	328871	REAR WHEEL	328871 REAR WHEEL 10.5J X 20"; Forged, diamond cut; See box D; Modis code RSFD	$5,509.82	2
1	328467	REAR WHEEL	328467 REAR WHEEL 10.5J X 20"; Cast, matte silver paint finish; See box A; Modis code STANDARD	$1,430.04	2
1	327806	REAR WHEEL	327806 REAR WHEEL 10.5J X 20"; Cast, chrome paint finish; See box B; Modis code RICS	$2,125.64	2
1	328456	FRONT WHEEL	328456 FRONT WHEEL 8.5J X 20"; Forged, chrome paint finish; See box C; Modis code RMSV	$4,769.98	2
1	328870	FRONT WHEEL	328870 FRONT WHEEL 8.5J X 20"; Forged, diamond cut; See box D; Modis code RSFD	$5,367.74	2
1	328868	FRONT WHEEL	328868 FRONT WHEEL 8.5J X 20"; Forged painted matt Corsa grey; See box E; Modis code RIFS	$4,824.93	2
1	328466	FRONT WHEEL	328466 FRONT WHEEL 8.5J X 20"; Cast, matte silver paint finish; See box A; Modis code STANDARD	$1,273.24	2
1	327805	FRONT WHEEL	327805 FRONT WHEEL 8.5J X 20"; Cast, chrome paint finish; See box B; Modis code RICS	$1,749.03	2
2	70006039	WHEEL STUD BOLT KIT ARRIVING SOON	70006039 WHEEL STUD BOLT KIT Applicable up to Ass. No. 155616 ARRIVING SOON	$545.55	1
2	55031812	WHEEL STUD BOLT	55031812 WHEEL STUD BOLT Applicable from Ass. No. 155617	$39.09	20
3	185328	Valve - Tyre Pressure Monitoring System IN STOCK	185328 Valve - Tyre Pressure Monitoring System IN STOCK	$21.07 MSRP: ~~23.07~~ (8.7% off)	4
4	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT	$15.07	-
6	777770	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR IN STOCK	777770 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not for J IN STOCK	$196.80	4
6	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314821 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for J	$185.26	4
7	240241	SPARE WHEEL RIM	240241 SPARE WHEEL RIM 4.5J X 20"	$3,410.95	1
8	317250104	VALVE	317250104 VALVE	$15.95	1

Wheels

Ferrari GTC4Lusso

Ferrari GTC4Lusso - WHEELS
