HYDRAULIC BRAKE AND CLUTCH CONTROL of Ferrari Ferrari 599 GTB Fiorano

View All

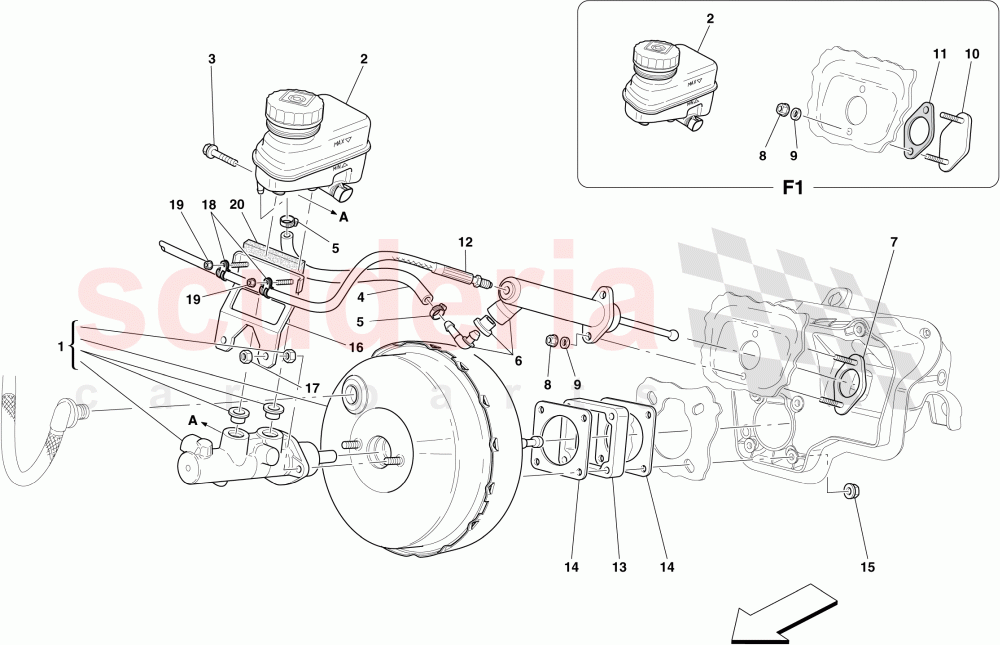

Ferrari 599 GTB Fiorano - HYDRAULIC BRAKE AND CLUTCH CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	209079	BRAKE SERVO WITH MASTER CYLINDER	Enquire	To Order
	218441	BRAKE SERVO WITH MASTER CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219312	BRAKE FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154011	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432370	COLLAR FOR HOSE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205301	CLUTCH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216078	PUMP FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220310	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220309	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238856	CLUTCH CONTROL PIPE	Enquire	To Order
	250118	CLUTCH CONTROL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190379	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190378	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225035	PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233375	RUBBER SHIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	209079	BRAKE SERVO WITH MASTER CYLINDER	209079 BRAKE SERVO WITH MASTER CYLINDER Standard	-	1	Enquire
1	218441	BRAKE SERVO WITH MASTER CYLINDER	218441 BRAKE SERVO WITH MASTER CYLINDER Version with CCM brakes	-	1	Enquire
2	219312	BRAKE FLUID RESERVOIR	219312 BRAKE FLUID RESERVOIR Not for F1 gearbox	-	1	Enquire
3	16284934	FLANGED SCREW	16284934 FLANGED SCREW	-	1	Enquire
4	154011	RUBBER PIPE	154011 RUBBER PIPE Not for F1 gearbox	-	1	Enquire
5	13432370	COLLAR FOR HOSE UNION	13432370 COLLAR FOR HOSE UNION Not for F1 gearbox	-	2	Enquire
6	205301	CLUTCH PUMP	205301 CLUTCH PUMP Not for F1 gearbox	-	1	Enquire
7	216078	PUMP FASTENER PLATE	216078 PUMP FASTENER PLATE Not for F1 gearbox	-	1	Enquire
8	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
9	12601374	WASHER	12601374 WASHER	-	2	Enquire
10	220310	CAP	220310 CAP Applicable for F1 gearbox	-	1	Enquire
11	220309	GASKET	220309 GASKET Applicable for F1 gearbox	-	1	Enquire
12	238856	CLUTCH CONTROL PIPE	238856 CLUTCH CONTROL PIPE Not for GD; Not for F1 gearbox	-	1	Enquire
12	250118	CLUTCH CONTROL PIPE	250118 CLUTCH CONTROL PIPE Applicable for GD; Not for F1 gearbox	-	1	Enquire
13	190379	SHIM	190379 SHIM	-	1	Enquire
14	190378	GASKET	190378 GASKET Q.ty 1, supplied with brake servo ref. 1	-	2	Enquire
15	12578211	NUT	12578211 NUT	-	4	Enquire
16	225035	PIPE FASTENER BRACKET	225035 PIPE FASTENER BRACKET Not for GD; Not for F1 gearbox	-	1	Enquire
17	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8 Not for GD; Not for F1 gearbox	-	2	Enquire
18	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH Not for F1 gearbox	-	2	Enquire
19	14059211	NUT	14059211 NUT Not for F1 gearbox	-	2	Enquire
20	233375	RUBBER SHIM	233375 RUBBER SHIM Not for F1 gearbox	-	1	Enquire
