REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 599 GTB Fiorano

View All

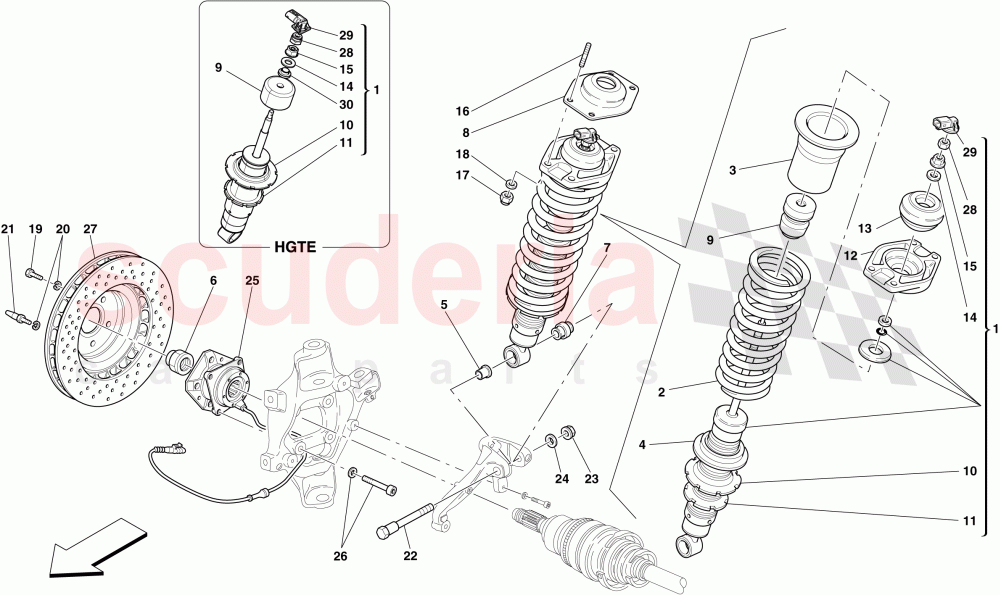

Ferrari 599 GTB Fiorano - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	257059	Rear Shock Absorber	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211757	SPRING	Enquire	To Order
	221094	SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186489	UPPER SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186487	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190702	SHIM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	279627	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220349	SHOCK ABSORBER BUSHING	Enquire	To Order
	256977	SHOCK ABSORBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220350	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220351	RING NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190330	Lower Stop Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204606	Bush for Front Upper Shock Absorber	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	220377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543634	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190530	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155002	Washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197232	WHEEL BEARING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190723	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198488	Rear Brake Disc	Enquire	To Order
	216835	REAR BRAKE DISC	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	220382	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234671	UPPER CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220383	BUSH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	257059	Rear Shock Absorber IN STOCK	257059 Rear Shock Absorber IN STOCK	-	2	Enquire
2	211757	SPRING	211757 SPRING Standard	-	2	Enquire
2	221094	SUSPENSION SPRING	221094 SUSPENSION SPRING Applicable for HGTE version	-	2	Enquire
3	186489	UPPER SPACER IN STOCK	186489 UPPER SPACER IN STOCK	-	2	Enquire
4	186487	LOWER SPACER	186487 LOWER SPACER	-	2	Enquire
5	190702	SHIM IN STOCK	190702 SHIM IN STOCK	-	2	Enquire
6	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
7	157630	BALL JOINT IN STOCK	157630 BALL JOINT IN STOCK	-	2	Enquire
8	279627	UPPER STOP CAP	279627 UPPER STOP CAP	-	2	Enquire
9	220349	SHOCK ABSORBER BUSHING	220349 SHOCK ABSORBER BUSHING Standard	-	2	Enquire
9	256977	SHOCK ABSORBER BUSHING	256977 SHOCK ABSORBER BUSHING Applicable for HGTE version	-	2	Enquire
10	220350	CAP	220350 CAP	-	2	Enquire
11	220351	RING NUT IN STOCK	220351 RING NUT IN STOCK	-	2	Enquire
12	190330	Lower Stop Cap	190330 Lower Stop Cap	-	2	Enquire
13	204606	Bush for Front Upper Shock Absorber IN STOCK	204606 Bush for Front Upper Shock Absorber IN STOCK	-	2	Enquire
14	220377	WASHER	220377 WASHER	-	2	Enquire
15	220378	NUT	220378 NUT	-	2	Enquire
16	13543634	STUD BOLT IN STOCK	13543634 STUD BOLT IN STOCK	-	8	Enquire
17	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	-	8	Enquire
18	14496524	WASHER IN STOCK	14496524 WASHER IN STOCK	-	8	Enquire
19	14306924	SCREW IN STOCK	14306924 SCREW IN STOCK	-	2	Enquire
20	127496	WASHER	127496 WASHER	-	4	Enquire
21	104370	SCREW IN STOCK	104370 SCREW IN STOCK	-	2	Enquire
22	190530	SCREW	190530 SCREW	-	2	Enquire
23	255271	NUT IN STOCK	255271 NUT IN STOCK	-	2	Enquire
24	155002	Washer IN STOCK	155002 Washer IN STOCK	-	2	Enquire
25	197232	WHEEL BEARING IN STOCK	197232 WHEEL BEARING IN STOCK	-	2	Enquire
26	190723	SCREW WITH WASHER	190723 SCREW WITH WASHER	-	8	Enquire
27	198488	Rear Brake Disc	198488 Rear Brake Disc Standard	-	2	Enquire
27	216835	REAR BRAKE DISC IN STOCK	216835 REAR BRAKE DISC Version with CCM brakes IN STOCK	-	2	Enquire
28	220382	NUT	220382 NUT	-	2	Enquire
29	234671	UPPER CONNECTOR	234671 UPPER CONNECTOR	-	2	Enquire
30	220383	BUSH	220383 BUSH Applicable for HGTE version	-	2	Enquire
