Front Suspension - Arms And Stabiliser Bar

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - FRONT SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

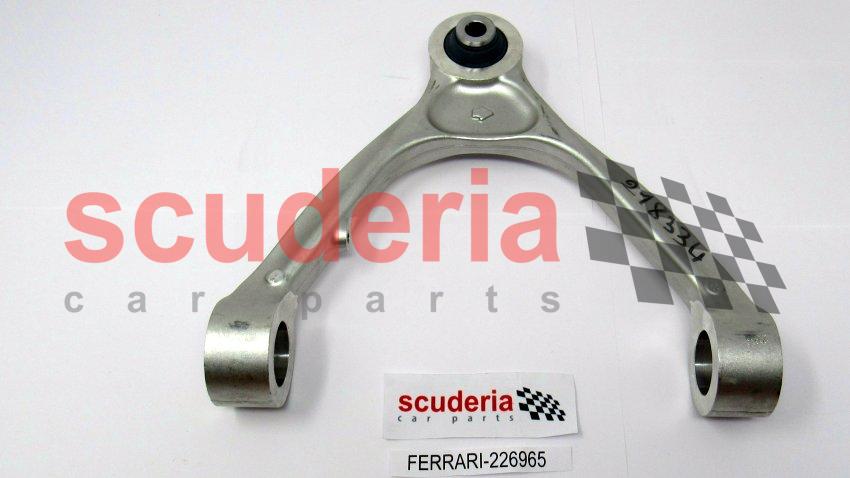

226965 Upper Front Suspension Arm $722.05 IN STOCK
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 IN STOCK
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $128.35 IN STOCK
Photo Part No Description Price (each) Stock
190274 SHIM $13.86 IN STOCK
Photo Part No Description Price (each) Stock
188581 SCREW $20.24 To Order
Photo Part No Description Price (each) Stock
209167 FLANBLOC $272.77 IN STOCK
Photo Part No Description Price (each) Stock
170155 THREADED ROD $16.84 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
219344 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
13582271 INSERT $7.73 To Order
Photo Part No Description Price (each) Stock
190272 SCREW $29.73 To Order
Photo Part No Description Price (each) Stock
216551 RH FRONT STUB AXLE $1,412.03 To Order
219552 RH FRONT STUB AXLE $1,412.03 To Order
216268 LH FRONT STUB AXLE $1,412.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

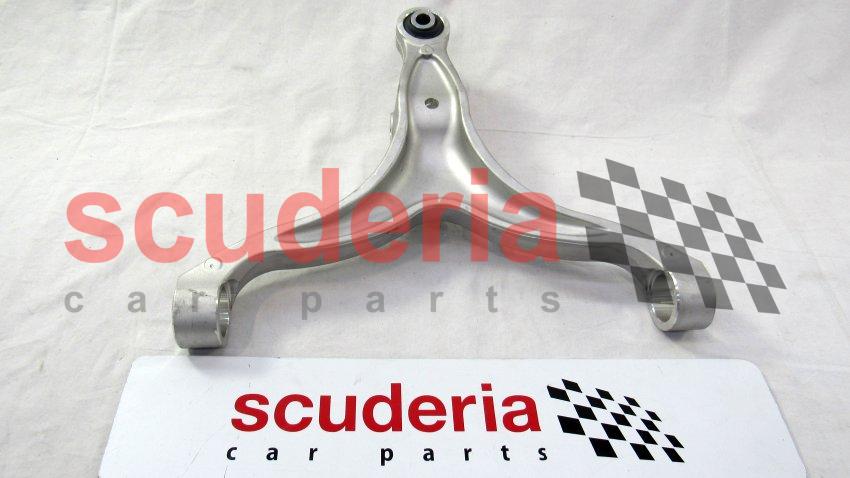

207576 FRONT LOWER SUSPENSION ARM $1,171.34 IN STOCK
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 IN STOCK
Photo Part No Description Price (each) Stock
190273 SHIM $37.65 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 IN STOCK
Photo Part No Description Price (each) Stock
196789 Silentbloc Bush $304.86 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
200938 SHIM $2.37 IN STOCK
203312 SHIM $7.52 To Order
203313 SHIM $60.46 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
241298 THREADED ROD $91.19 To Order
Photo Part No Description Price (each) Stock
13582310 THREADED INSERT $12.87 To Order
Photo Part No Description Price (each) Stock
196068 RH STUB AXLE COVER $40.10 To Order
196066 LH STUB AXLE COVER $40.10 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.68 IN STOCK
Photo Part No Description Price (each) Stock
191613 SPHERICAL TIE-ROD $109.10 IN STOCK
Photo Part No Description Price (each) Stock
10791014 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock

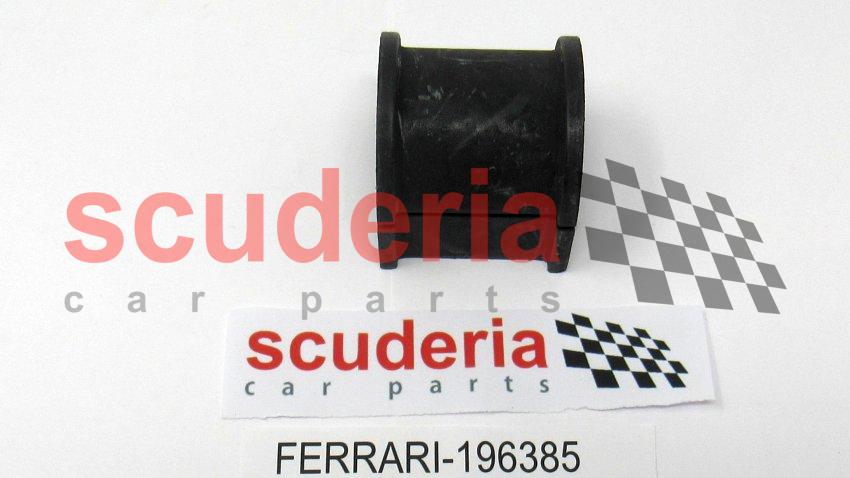

196385 Stabiliser Bar Bush $46.52 IN STOCK
Photo Part No Description Price (each) Stock
239775 PLATE $33.68 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $254.21 IN STOCK
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $317.66 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
View All

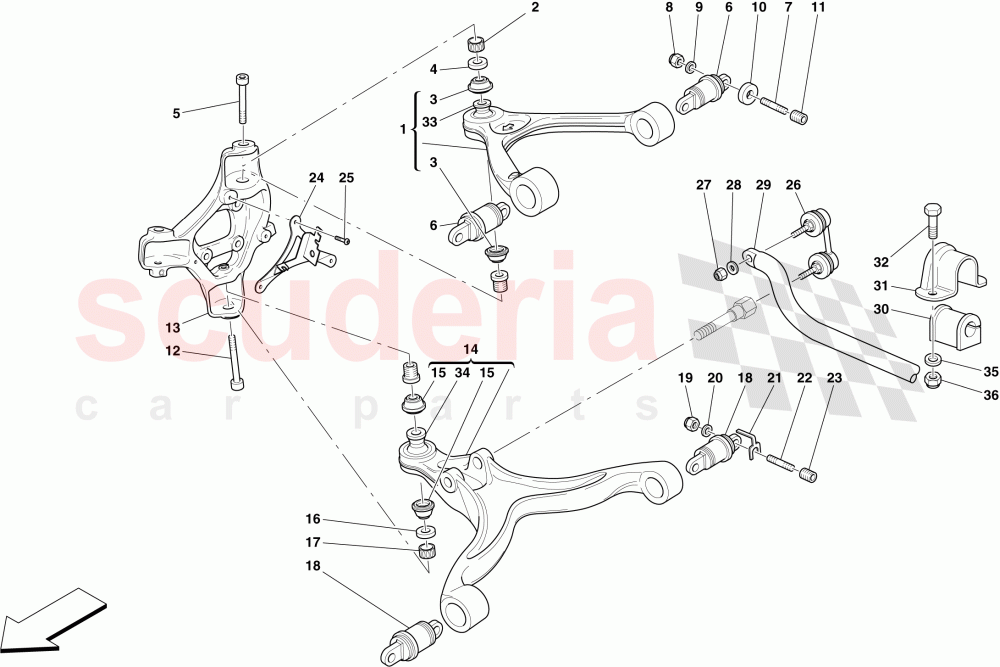

FRONT SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 226965
Upper Front Suspension Arm
IN STOCK 		$722.05 (43.1% off) 2
2 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip
IN STOCK 		$128.35 (26.3% off) 4
4 190274
SHIM
IN STOCK 		$13.86 2
5 188581
SCREW 		$20.24 2
6 209167
FLANBLOC
IN STOCK 		$272.77 (28.3% off) 4
7 170155
THREADED ROD 		$16.84 8
8 104030
NUT
IN STOCK 		$0.26 (74% off) 8
9 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 8
10 219344
WASHER
IN STOCK 		$0.29 8
11 13582271
INSERT 		$7.73 (23.8% off) 8
12 190272
SCREW 		$29.73 2
13 216551
RH FRONT STUB AXLE
Standard 		$1,412.03 1
13 219552
RH FRONT STUB AXLE
Version with CCM brakes 		$1,412.03 1
13 216268
LH FRONT STUB AXLE
Standard 		$1,412.03 1
13 219551
LH FRONT STUB AXLE
Version with CCM brakes 		$1,412.03 1
14 207576
FRONT LOWER SUSPENSION ARM
IN STOCK 		$1,171.34 (36.2% off) 2
15 171847
Rubber Boot And Clip
IN STOCK 		$128.35 (26.3% off) 4
16 190273
SHIM 		$37.65 2
17 179554
COMPENSATOR RING
IN STOCK 		$5.92 (11.4% off) 2
18 196789
Silentbloc Bush
IN STOCK 		$304.86 (29.1% off) 4
19 12574521
Nyloc Nut
IN STOCK 		$0.92 (54% off) 8
20 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.93 8
21 200938
SHIM
Installed if necessary
IN STOCK 		$2.37 8
21 203312
SHIM
Th. 1 mm; Installed if necessary 		$7.52 8
21 203313
SHIM
Th. 1.5 mm; Installed if necessary 		$60.46 8
21 203314
SHIM
Th. 2 mm; Installed if necessary 		$2.37 8
21 203315
SHIM
Th. 2.5 mm; Installed if necessary 		$22.79 8
21 203316
SHIM
Th. 3 mm; Installed if necessary 		$60.46 8
22 241298
THREADED ROD 		$91.19 8
23 13582310
THREADED INSERT 		$12.87 8
24 196068
RH STUB AXLE COVER 		$40.10 1
24 196066
LH STUB AXLE COVER 		$40.10 1
25 250657
SCREW
IN STOCK 		$7.68 6
26 191613
SPHERICAL TIE-ROD
IN STOCK 		$109.10 2
27 10791014
NUT 		$0.29 2
28 12601474
WASHER
IN STOCK 		$0.03 2
30 196385
Stabiliser Bar Bush
IN STOCK 		$46.52 2
31 239775
PLATE 		$33.68 2
32 231629
SCREW
IN STOCK 		$0.65 (31.6% off) 4
33 203633
Upper Ball Joint
IN STOCK 		$254.21 2
34 203632
Lower Ball Joint
IN STOCK 		$317.66 2
35 84653800
WASHER
IN STOCK 		$5.53 4
36 104030
NUT
IN STOCK 		$0.26 (74% off) 4
