Ferrari 599 GTB Fiorano - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
223616 BRAKE PIPE FROM HYDRAULIC UNIT TO LH REAR RIGID PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
268666 RH BRAKE PIPE FROM HYDRAULIC UNIT TO FRONT HOSE $74.52 To Order
Photo Part No Description Price (each) Stock
268665 LH BRAKE PIPE FROM HYDRAULIC UNIT TO FRONT HOSE $48.12 To Order
Photo Part No Description Price (each) Stock
268658 RUBBER PIPE $702.38 To Order
977803 Brake Pipe 325mm $40.10 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
227306 BRAKE PIPE FROM HYDRAULIC UNIT TO RH REAR RIGID PIPE $83.42 To Order
Photo Part No Description Price (each) Stock
223617 BRAKE PIPE TO RH REAR HOSE $70.59 To Order
Photo Part No Description Price (each) Stock
223618 BRAKE PIPE TO LH REAR HOSE $73.80 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
223613 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $85.03 To Order
Photo Part No Description Price (each) Stock
223614 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $57.75 To Order
Photo Part No Description Price (each) Stock
212645 CLIP $3.19 To Order
Photo Part No Description Price (each) Stock
215411 CLIP $1.56 To Order
Photo Part No Description Price (each) Stock
223271 RUBBER PILLORY BLOCK $320.90 To Order
Photo Part No Description Price (each) Stock
205822 CLIP $0.41 To Order
Photo Part No Description Price (each) Stock
14303523 Screw Enquire To Order
Photo Part No Description Price (each) Stock
211941 RH MOUNTING $83.11 To Order
Photo Part No Description Price (each) Stock
211932 LH MOUNTING $83.11 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
223270 PLATE $114.66 To Order
Photo Part No Description Price (each) Stock
223272 BUSHING $141.19 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
View All

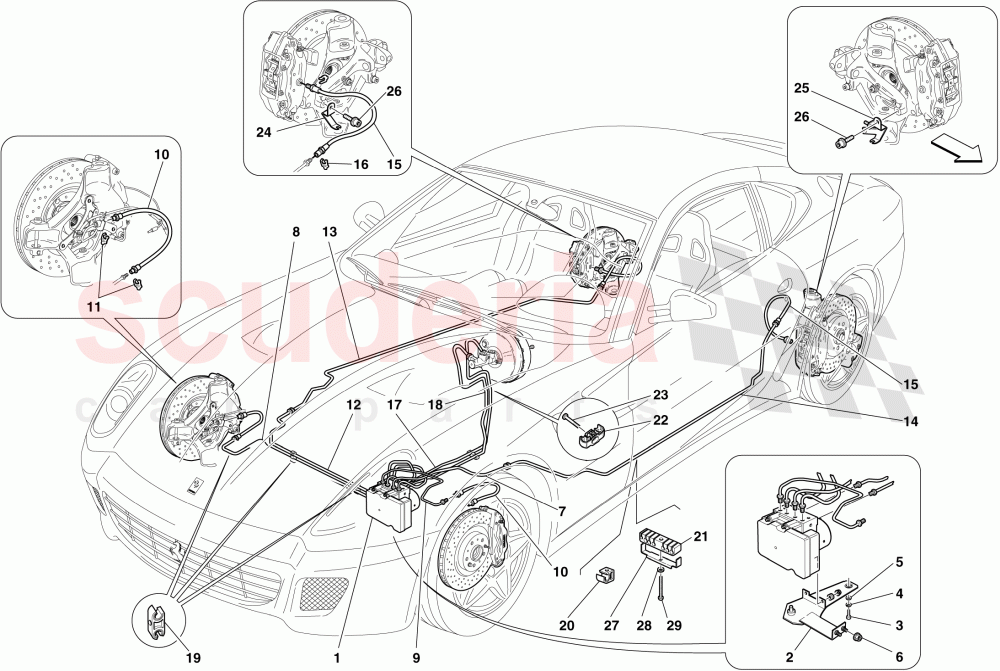

BRAKE SYSTEM -Not applicable for GD- of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 13839224
SCREW
Not for GD 		$2.79 1
4 12625224
WASHER
Not for GD 		$0.06 (76% off) 1
5 12601374
WASHER
Not for GD 		$0.02 (92% off) 1
6 14059211
NUT
Not for GD 		$0.06 2
7 223616
BRAKE PIPE FROM HYDRAULIC UNIT TO LH REAR RIGID PIPE
Not for GD 		$48.12 1
8 268666
RH BRAKE PIPE FROM HYDRAULIC UNIT TO FRONT HOSE
Not for GD 		$74.52 1
9 268665
LH BRAKE PIPE FROM HYDRAULIC UNIT TO FRONT HOSE
Not for GD 		$48.12 1
10 268658
RUBBER PIPE
Not for GD; Applicable until depletion 		$702.38 2
10 977803
Brake Pipe 325mm
Not for GD; Applicable after depletion of 116373 		$40.10 2
11 116374
CLIP
Not for GD 		$2.51 (28.3% off) 4
12 227306
BRAKE PIPE FROM HYDRAULIC UNIT TO RH REAR RIGID PIPE
Not for GD 		$83.42 1
13 223617
BRAKE PIPE TO RH REAR HOSE
Not for GD 		$70.59 1
14 223618
BRAKE PIPE TO LH REAR HOSE
Not for GD 		$73.80 1
16 116374
CLIP
Not for GD 		$2.51 (28.3% off) 2
17 223613
BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Not for GD 		$85.03 1
18 223614
BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
Not for GD 		$57.75 1
19 212645
CLIP
Not for GD 		$3.19 3
20 215411
CLIP
Not for GD 		$1.56 15
21 223271
RUBBER PILLORY BLOCK
Not for GD 		$320.90 1
22 205822
CLIP
Not for GD 		$0.41 1
23 14303523
Screw
Not for GD 		- 1 Enquire
24 211941
RH MOUNTING
Not for GD 		$83.11 1
25 211932
LH MOUNTING
Not for GD 		$83.11 1
26 250657
SCREW
Not for GD 		$7.60 4
27 223270
PLATE
Not for GD 		$114.66 1
28 223272
BUSHING
Not for GD 		$141.19 1
29 231622
SCREW
M6 X 35; L. 35 mm; Not for GD 		$0.36 (28% off) 1
