REAR SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 599 GTB Fiorano

View All

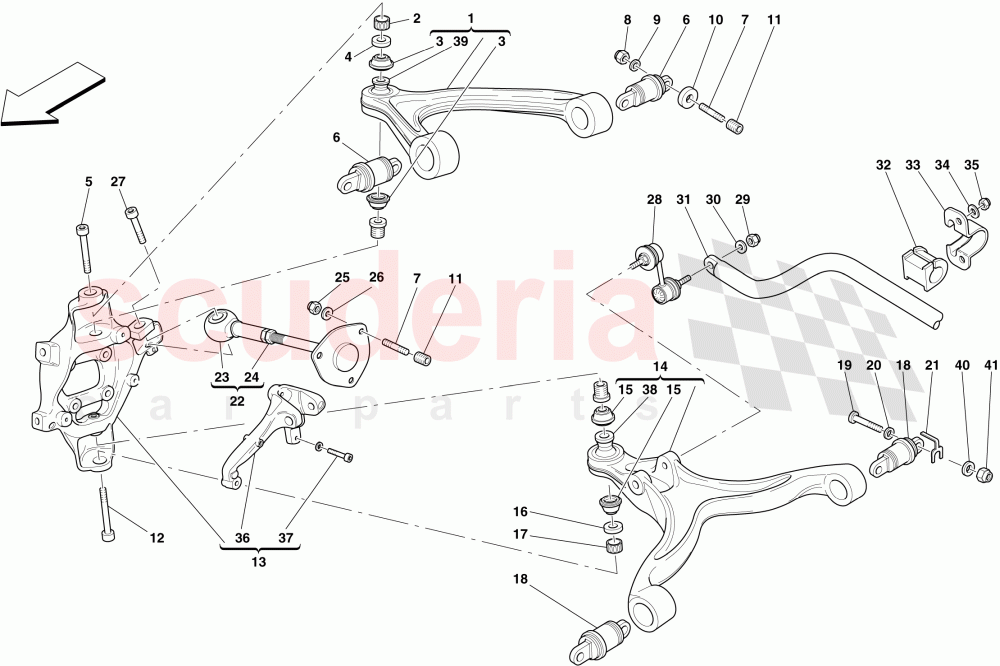

Ferrari 599 GTB Fiorano - REAR SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	226968	COMPLETE UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179555	COMPENSATOR RING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171848	Rubber Boot and Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190274	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188581	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209167	FLANBLOC	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	170155	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13582271	INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190750	RH REAR STUB AXLE	Enquire	To Order
	267229	RH REAR STUB AXLE	Enquire	To Order
	190751	LH REAR STUB AXLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	207581	COMPLETE LOWER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171847	Rubber Boot And Clip	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	190273	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179554	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196789	Silentbloc Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182215	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200938	SHIM	Enquire	To Order
	203312	SHIM	Enquire	To Order
	203313	SHIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	252479	Tie Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194794	ROD END FOR TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204248	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179556	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168993	Roll Bar Link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200586	STABILISER BAR BUSH	Enquire	To Order
	257037	STABILISER BAR BUSH	Enquire	To Order
	208321	Anti Roll Bar Rubber D.25X43	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239775	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205005	RH SHOCK ABSORBER MOUNT	Enquire	To Order
	205006	LH SHOCK ABSORBER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203632	Lower Ball Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203633	Upper Ball Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058621	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	226968	COMPLETE UPPER ARM	226968 COMPLETE UPPER ARM	-	2	Enquire
2	179555	COMPENSATOR RING BUSHING	179555 COMPENSATOR RING BUSHING	-	2	Enquire
3	171848	Rubber Boot and Clip	171848 Rubber Boot and Clip	-	4	Enquire
4	190274	SHIM	190274 SHIM	-	2	Enquire
5	188581	SCREW	188581 SCREW	-	2	Enquire
6	209167	FLANBLOC ARRIVING SOON	209167 FLANBLOC ARRIVING SOON	-	4	Enquire
7	170155	THREADED ROD	170155 THREADED ROD	-	14	Enquire
8	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
9	14496524	WASHER	14496524 WASHER	-	8	Enquire
10	219344	WASHER	219344 WASHER	-	8	Enquire
11	13582271	INSERT	13582271 INSERT	-	14	Enquire
12	190272	SCREW	190272 SCREW	-	2	Enquire
13	190750	RH REAR STUB AXLE	190750 RH REAR STUB AXLE Standard	-	1	Enquire
13	267229	RH REAR STUB AXLE	267229 RH REAR STUB AXLE Version with CCM brakes	-	1	Enquire
13	190751	LH REAR STUB AXLE	190751 LH REAR STUB AXLE Standard	-	1	Enquire
13	267228	LH REAR STUB AXLE	267228 LH REAR STUB AXLE Version with CCM brakes	-	1	Enquire
14	207581	COMPLETE LOWER ARM	207581 COMPLETE LOWER ARM	-	2	Enquire
15	171847	Rubber Boot And Clip ARRIVING SOON	171847 Rubber Boot And Clip ARRIVING SOON	-	4	Enquire
16	190273	SHIM	190273 SHIM	-	2	Enquire
17	179554	COMPENSATOR RING	179554 COMPENSATOR RING	-	2	Enquire
18	196789	Silentbloc Bush	196789 Silentbloc Bush	-	4	Enquire
19	182215	SCREW	182215 SCREW	-	8	Enquire
20	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
21	200938	SHIM	200938 SHIM Installed if necessary	-	8	Enquire
21	203312	SHIM	203312 SHIM Th. 1 mm; Installed if necessary	-	8	Enquire
21	203313	SHIM	203313 SHIM Th. 1.5 mm; Installed if necessary	-	8	Enquire
21	203314	SHIM	203314 SHIM Th. 2 mm; Installed if necessary	-	8	Enquire
21	203315	SHIM	203315 SHIM Th. 2.5 mm; Installed if necessary	-	8	Enquire
21	203316	SHIM	203316 SHIM Th. 3 mm; Installed if necessary	-	8	Enquire
22	252479	Tie Rod	252479 Tie Rod	-	2	Enquire
23	194794	ROD END FOR TIE-ROD	194794 ROD END FOR TIE-ROD Applicable for tie-rod Part No. 194792	-	2	Enquire
24	204248	NUT	204248 NUT Applicable for tie-rod Part No. 194792	-	2	Enquire
25	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	6	Enquire
26	113113	WASHER	113113 WASHER	-	6	Enquire
27	179556	SCREW	179556 SCREW	-	2	Enquire
28	168993	Roll Bar Link	168993 Roll Bar Link	-	2	Enquire
29	10791014	NUT	10791014 NUT	-	2	Enquire
30	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire

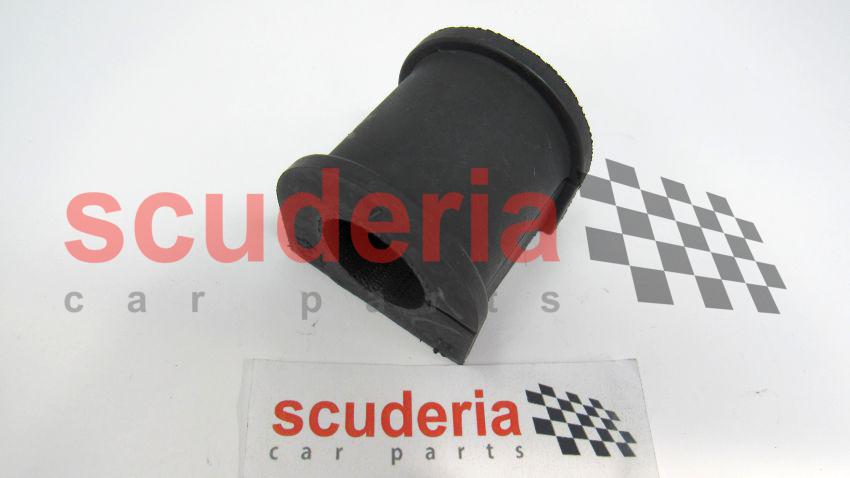

32	200586	STABILISER BAR BUSH	200586 STABILISER BAR BUSH Standard	-	2	Enquire
32	257037	STABILISER BAR BUSH	257037 STABILISER BAR BUSH D. 24.5; Applicable for HGTE version; Applicable for stabiliser bar 257038	-	2	Enquire
32	208321	Anti Roll Bar Rubber D.25X43	208321 Anti Roll Bar Rubber D.25X43 D. 25; Applicable for HGTE and HGTE 60 F1 versions; Applicable for stabiliser bar 256976	-	2	Enquire
33	239775	PLATE	239775 PLATE	-	2	Enquire
34	113113	WASHER	113113 WASHER	-	4	Enquire
35	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
36	205005	RH SHOCK ABSORBER MOUNT	205005 RH SHOCK ABSORBER MOUNT	-	1	Enquire
36	205006	LH SHOCK ABSORBER MOUNT	205006 LH SHOCK ABSORBER MOUNT	-	1	Enquire
37	212601	SCREW	212601 SCREW	-	2	Enquire
38	203632	Lower Ball Joint	203632 Lower Ball Joint	-	2	Enquire
39	203633	Upper Ball Joint	203633 Upper Ball Joint	-	2	Enquire
40	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	8	Enquire
41	14058621	NUT	14058621 NUT	-	8	Enquire
