FRONT BRAKE CALLIPER of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - FRONT BRAKE CALLIPER

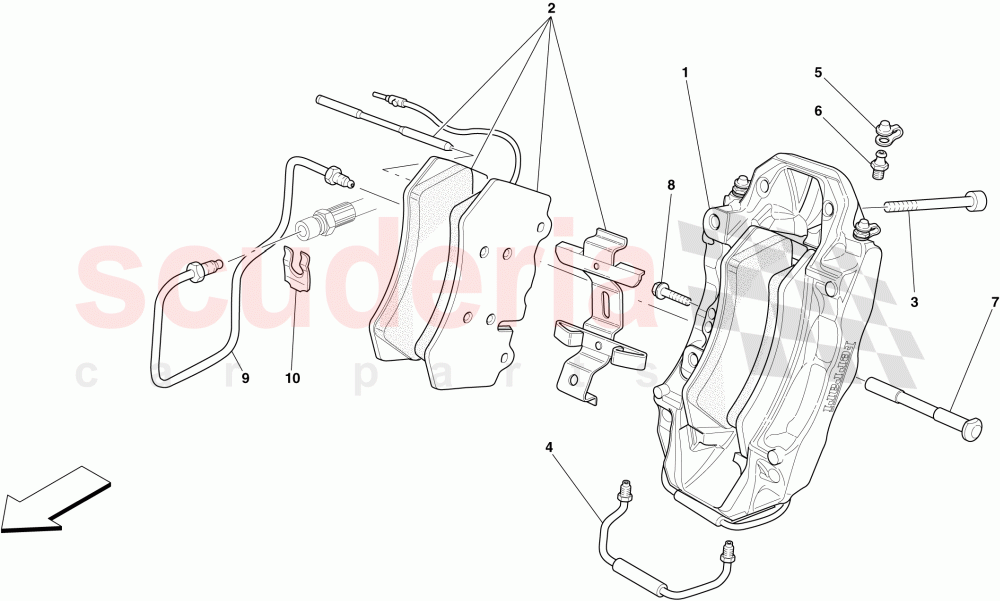

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248510	FRONT RH CALLIPER WITH PADS	Enquire	To Order
	248511	FRONT LH CALLIPER WITH PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

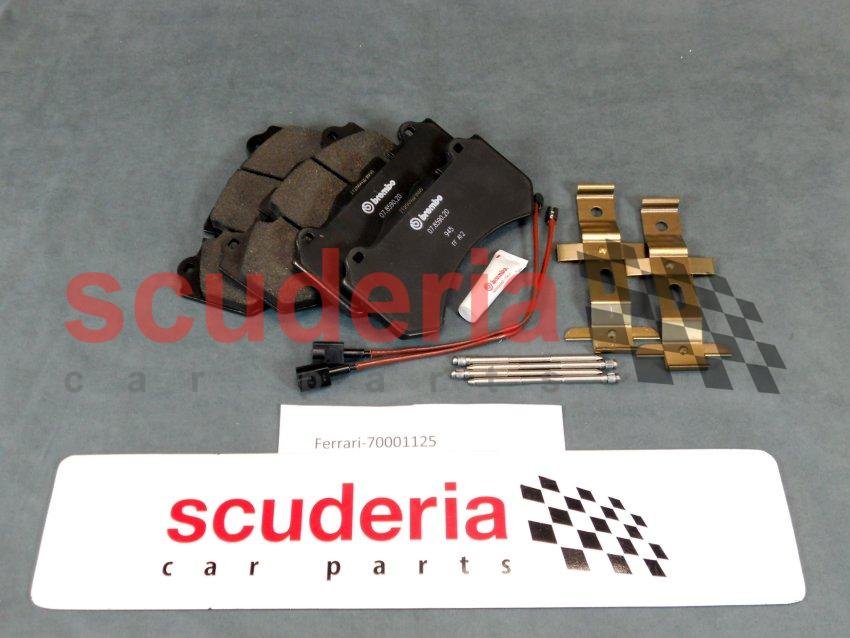

	70001125	Front Pad Set With Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217652	SCREW	Enquire	To Order
	195167	SCREW M12 X 1.5 X 95	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	198012	CONNECTOR PIPE	Enquire	To Order
	215761	RH CONNECTOR PIPE	Enquire	To Order
	215667	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	IN STOCK
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198015	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206192	PIPE TO RH FRONT CALLIPER	Enquire	To Order
	220694	PIPE TO RH FRONT CALLIPER	Enquire	To Order
	206202	PIPE TO LH FRONT CALLIPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248510	FRONT RH CALLIPER WITH PADS	248510 FRONT RH CALLIPER WITH PADS Anodised black; Version with CCM brakes	-	1	Enquire
1	248511	FRONT LH CALLIPER WITH PADS	248511 FRONT LH CALLIPER WITH PADS Anodised black; Version with CCM brakes	-	1	Enquire
2	70001125	Front Pad Set With Spring	70001125 Front Pad Set With Spring Standard	-	1	Enquire
3	217652	SCREW	217652 SCREW Standard	-	4	Enquire
3	195167	SCREW M12 X 1.5 X 95 IN STOCK	195167 SCREW M12 X 1.5 X 95 Version with CCM brakes IN STOCK	-	4	Enquire
4	198012	CONNECTOR PIPE	198012 CONNECTOR PIPE Standard	-	2	Enquire
4	215761	RH CONNECTOR PIPE	215761 RH CONNECTOR PIPE Version with CCM brakes	-	1	Enquire
4	215667	LH CONNECTOR PIPE	215667 LH CONNECTOR PIPE Version with CCM brakes	-	1	Enquire
5	215666	PROTECTIVE CAP IN STOCK	215666 PROTECTIVE CAP IN STOCK	-	2	Enquire
6	152954	BLEED NIPPLE SCREW IN STOCK	152954 BLEED NIPPLE SCREW Standard IN STOCK	-	2	Enquire
6	215665	BLEED SCREW	215665 BLEED SCREW Standard	-	2	Enquire
7	198015	TIE-ROD	198015 TIE-ROD	-	2	Enquire
8	198014	SCREW	198014 SCREW	-	2	Enquire
9	206192	PIPE TO RH FRONT CALLIPER	206192 PIPE TO RH FRONT CALLIPER Standard	-	1	Enquire
9	220694	PIPE TO RH FRONT CALLIPER	220694 PIPE TO RH FRONT CALLIPER Version with CCM brakes	-	1	Enquire
9	206202	PIPE TO LH FRONT CALLIPER	206202 PIPE TO LH FRONT CALLIPER Standard	-	1	Enquire
9	220452	PIPE TO LH FRONT CALLIPER	220452 PIPE TO LH FRONT CALLIPER Version with CCM brakes	-	1	Enquire
10	116374	CLIP IN STOCK	116374 CLIP IN STOCK	-	2	Enquire
