INTERNAL GEARBOX CONTROLS -Not for F1- of Ferrari Ferrari 599 GTB Fiorano

View All

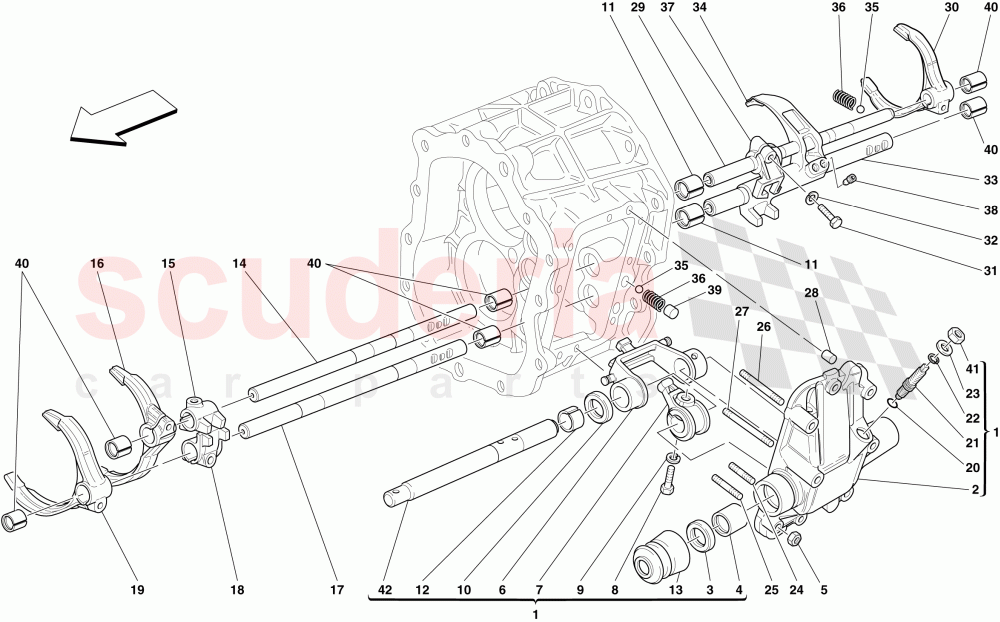

Ferrari 599 GTB Fiorano - INTERNAL GEARBOX CONTROLS -Not for F1-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239580	COMPLETE INTERNAL GEARBOX CONTROL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146306	GEARBOX SHAFT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149907	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193890	ROCKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224845	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11306930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10571879	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147346	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150093	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103226	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147572	BELLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158051	3rd AND 4th GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222832	3rd AND 4th GEAR CONTROL ROD FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261486	3rd AND 4th GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189533	5th AND 6th GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222833	5th AND 6th GEAR CONTROL ROD FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189534	5th AND 6th GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184040	ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178306	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13542024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189527	REVERSE CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189528	REVERSE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189531	1st AND 2nd GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189530	1st AND 2nd GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101612	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100750	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193901	REVERSE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142245	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150173	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150173	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	239580	COMPLETE INTERNAL GEARBOX CONTROL COVER	239580 COMPLETE INTERNAL GEARBOX CONTROL COVER Not for F1 gearbox	-	1	Enquire
3	146306	GEARBOX SHAFT GASKET	146306 GEARBOX SHAFT GASKET Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
4	149907	BUSHING	149907 BUSHING Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	2	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Not for F1 gearbox	-	8	Enquire
6	193890	ROCKER	193890 ROCKER Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
7	224845	LEVER	224845 LEVER Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
8	11306930	SCREW	11306930 SCREW Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
9	10571879	WASHER	10571879 WASHER Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
10	147346	WASHER	147346 WASHER Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	2	Enquire
11	150093	BUSHING	150093 BUSHING Not for F1 gearbox	-	2	Enquire
12	103226	BUSHING	103226 BUSHING Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	2	Enquire
13	147572	BELLOW	147572 BELLOW Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
14	158051	3rd AND 4th GEAR CONTROL ROD	158051 3rd AND 4th GEAR CONTROL ROD Not for F1 gearbox	-	1	Enquire
15	222832	3rd AND 4th GEAR CONTROL ROD FORK	222832 3rd AND 4th GEAR CONTROL ROD FORK Not for F1 gearbox	-	1	Enquire
16	261486	3rd AND 4th GEAR CONTROL FORK	261486 3rd AND 4th GEAR CONTROL FORK Not for F1 gearbox	-	1	Enquire
17	189533	5th AND 6th GEAR CONTROL ROD	189533 5th AND 6th GEAR CONTROL ROD Not for F1 gearbox	-	1	Enquire
18	222833	5th AND 6th GEAR CONTROL ROD FORK	222833 5th AND 6th GEAR CONTROL ROD FORK Not for F1 gearbox	-	1	Enquire
19	189534	5th AND 6th GEAR CONTROL FORK	189534 5th AND 6th GEAR CONTROL FORK Not for F1 gearbox	-	1	Enquire
20	127816	O-RING	127816 O-RING Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
21	184040	ROD	184040 ROD Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
22	178306	RING	178306 RING Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
23	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2 Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
24	13541224	STUD BOLT	13541224 STUD BOLT M6 X 12; Shank length 22; Not for F1 gearbox	-	2	Enquire
25	13541524	STUD BOLT	13541524 STUD BOLT Not for F1 gearbox	-	2	Enquire
26	13541624	STUD BOLT	13541624 STUD BOLT Not for F1 gearbox	-	2	Enquire
27	13542024	STUD BOLT	13542024 STUD BOLT Not for F1 gearbox	-	2	Enquire
28	125717	CENTRING DOWEL	125717 CENTRING DOWEL Not for F1 gearbox	-	2	Enquire
29	189527	REVERSE CONTROL ROD	189527 REVERSE CONTROL ROD Not for F1 gearbox	-	1	Enquire
30	189528	REVERSE CONTROL FORK	189528 REVERSE CONTROL FORK Not for F1 gearbox	-	1	Enquire
31	16043634	SCREW	16043634 SCREW Not for F1 gearbox	-	6	Enquire
32	84653800	WASHER	84653800 WASHER Not for F1 gearbox	-	6	Enquire
33	189531	1st AND 2nd GEAR CONTROL ROD	189531 1st AND 2nd GEAR CONTROL ROD Not for F1 gearbox	-	1	Enquire
34	189530	1st AND 2nd GEAR CONTROL FORK	189530 1st AND 2nd GEAR CONTROL FORK Not for F1 gearbox	-	1	Enquire
35	101612	BALL	101612 BALL Not for F1 gearbox	-	3	Enquire
36	100750	SPRING	100750 SPRING Not for F1 gearbox	-	3	Enquire
37	193901	REVERSE CONTROL FORK	193901 REVERSE CONTROL FORK Not for F1 gearbox	-	1	Enquire
38	142245	SCREW	142245 SCREW Not for F1 gearbox	-	2	Enquire
39	150173	SHIM	150173 SHIM Not for F1 gearbox	-	1	Enquire
40	150173	SHIM	150173 SHIM Not for F1 gearbox	-	1	Enquire
41	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8 Supplied with compl. cover ref. 1; Not for F1 gearbox; No longer supplied	-	1	Enquire
