GEARBOX HOUSING of Ferrari Ferrari 599 GTB Fiorano

View All

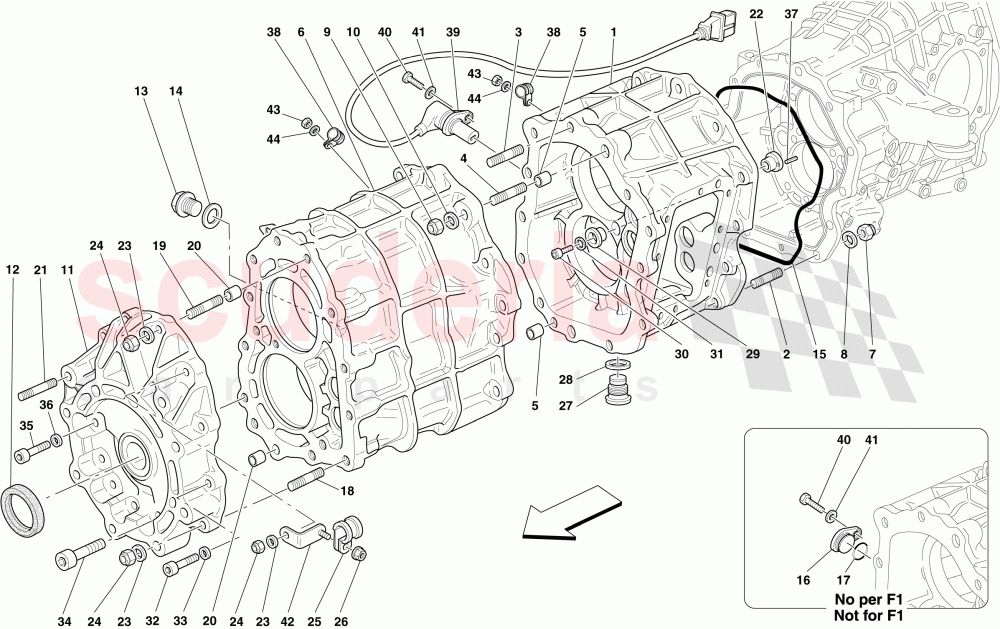

Ferrari 599 GTB Fiorano - GEARBOX HOUSING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	210493	3rd SECTION OF GEARBOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order
	13543724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199480	2nd SECTION OF GEARBOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195201	COMPLETE GEAR BOX 1st ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172363	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14455981	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185721	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546334	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157010	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157009	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305731	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11198579	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306724	SCREW	Enquire	To Order
	14306624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14159470	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168729	ELECTROMAGNETIC SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238409	BRACKET	Enquire	To Order
	238409	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	227408	GEARBOX HOUSING ASSEMBLY	227408 GEARBOX HOUSING ASSEMBLY	-	1	Enquire
1	210493	3rd SECTION OF GEARBOX HOUSING	210493 3rd SECTION OF GEARBOX HOUSING Supplied with complete gearbox housing, 227408	-	1	Enquire
2	13543524	STUD BOLT	13543524 STUD BOLT M8 X 16; Shank length 25	-	3	Enquire
2	13543724	STUD BOLT	13543724 STUD BOLT M8 X 16; Shank length 35	-	1	Enquire
3	13543624	STUD BOLT	13543624 STUD BOLT M8 X 16; Shank length 30	-	7	Enquire
4	13543824	STUD BOLT	13543824 STUD BOLT M8 X 16; Shank length 40	-	5	Enquire
5	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
6	199480	2nd SECTION OF GEARBOX HOUSING	199480 2nd SECTION OF GEARBOX HOUSING Supplied with complete gearbox housing, 227408	-	1	Enquire
7	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	13	Enquire
8	12601374	WASHER	12601374 WASHER	-	13	Enquire
9	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	13	Enquire
10	12601374	WASHER	12601374 WASHER	-	13	Enquire
11	195201	COMPLETE GEAR BOX 1st ELEMENT	195201 COMPLETE GEAR BOX 1st ELEMENT	-	1	Enquire
12	172363	Gasket	172363 Gasket	-	1	Enquire
13	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
14	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
15	14455981	GASKET	14455981 GASKET	-	1	Enquire
16	185721	CAP	185721 CAP Not for F1 gearbox	-	1	Enquire
18	13543424	STUD BOLT	13543424 STUD BOLT	-	8	Enquire
19	13543624	STUD BOLT	13543624 STUD BOLT M8 X 16; Shank length 30	-	10	Enquire
20	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	-	2	Enquire
21	13546334	STUD BOLT	13546334 STUD BOLT	-	3	Enquire
22	157010	BUSHING	157010 BUSHING	-	1	Enquire
23	12601374	WASHER	12601374 WASHER	-	6	Enquire
24	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	6	Enquire
25	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH Applicable for F1 gearbox	-	5	Enquire
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for F1 gearbox	-	5	Enquire
27	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	183962 OIL DRAIN PLUG MAGNETIC 22X1.5	-	1	Enquire
28	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
29	157009	BUSHING	157009 BUSHING	-	1	Enquire
30	14305731	SCREW	14305731 SCREW	-	1	Enquire
31	238108	WASHER	238108 WASHER	-	1	Enquire
32	285494	SCREW	285494 SCREW M8 X 45	-	3	Enquire
33	11198579	WASHER	11198579 WASHER	-	3	Enquire
34	14307834	SCREW	14307834 SCREW M10 X 45	-	3	Enquire
35	14306724	SCREW	14306724 SCREW M8 X 40	-	1	Enquire
35	14306624	SCREW	14306624 SCREW M8 X 35	-	3	Enquire
36	14499421	WASHER	14499421 WASHER	-	4	Enquire
37	14159470	PIN	14159470 PIN	-	1	Enquire
38	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH Applicable for F1 gearbox	-	2	Enquire
39	168729	ELECTROMAGNETIC SENSOR	168729 ELECTROMAGNETIC SENSOR Applicable for F1 gearbox	-	1	Enquire
40	10902224	SCREW	10902224 SCREW	-	1	Enquire
41	11194379	WASHER	11194379 WASHER	-	1	Enquire
42	238409	BRACKET	238409 BRACKET Applicable for F1 gearbox	-	3	Enquire
42	238409	BRACKET	238409 BRACKET Not for F1 gearbox	-	1	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for F1 gearbox	-	2	Enquire
44	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable for F1 gearbox	-	2	Enquire
