Engine mounting, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - Engine mounting, D >> - MJ 2016

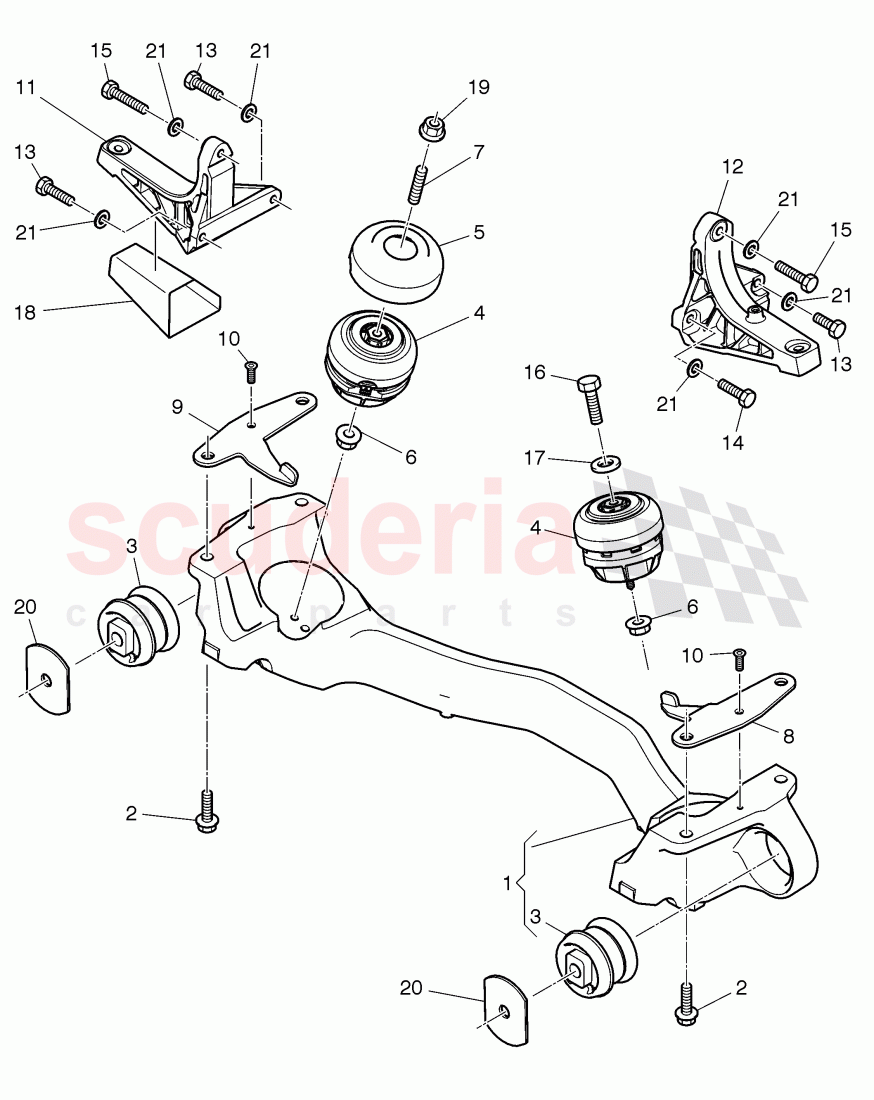

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0199205C	engine carrier with rubber, mounting, D - 27.10.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003242	bolt, D >> - 30.04.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0199143	mounting for sub frame	Enquire

Photo	Part No	Description	Price (each)	Stock

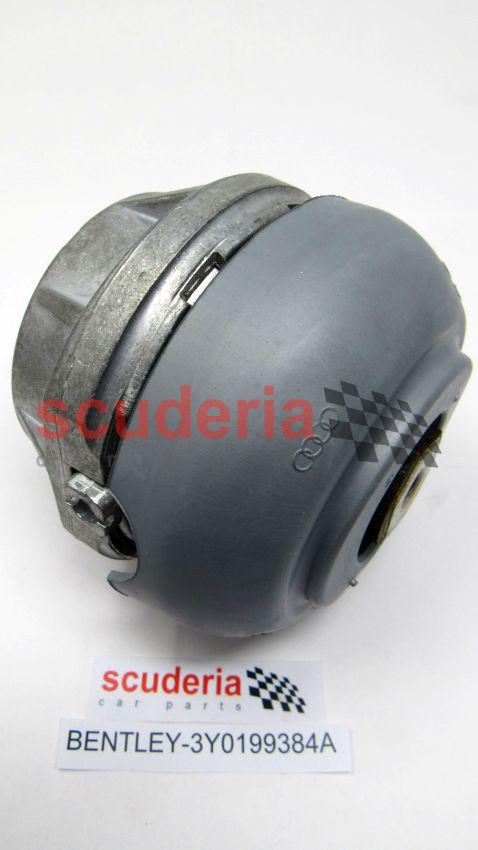

	3Y0199384A	engine mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0199455	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10435507	shouldered hex. nut,, self-locking, D - 11.12.2006>>	Enquire
	N10435507	shouldered hex. nut,, self-locking, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003246	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0199335	stop plate, D - 25.11.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0199336	stop plate, D - 25.11.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003243	countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V199584	engine mounting bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V199583	engine mounting bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002862	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N01472310	bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002863	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10204807	hexagon head bolt (combi) for use with:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002864	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10728502	Hex collared bolt alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003245	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003244	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0199458	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10286110	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002851	Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire
	WHT002851	Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0199205C	engine carrier with rubber, mounting, D - 27.10.2014>>	3Y0199205C engine carrier with rubber, mounting, D - 27.10.2014>>	-	1	Enquire
2	WHT003242	bolt, D >> - 30.04.2012	WHT003242 bolt, D >> - 30.04.2012 M12X1,75X40,	-	4	Enquire
3	3Y0199143	mounting for sub frame	3Y0199143 mounting for sub frame	-	2	Enquire
4	3Y0199384A	engine mounting	3Y0199384A engine mounting	-	2	Enquire
5	3Z0199455	heat shield	3Z0199455 heat shield	-	1	Enquire
6	N10435507	shouldered hex. nut,, self-locking, D - 11.12.2006>>	N10435507 shouldered hex. nut,, self-locking, D - 11.12.2006>> M8X1,25,	-	2	Enquire
6	N10435507	shouldered hex. nut,, self-locking, D - 11.12.2006>>	N10435507 shouldered hex. nut,, self-locking, D - 11.12.2006>>	-	2	Enquire
7	WHT003246	stud	WHT003246 stud M10X55,	-	1	Enquire
8	3Y0199335	stop plate, D - 25.11.2013>>	3Y0199335 stop plate, D - 25.11.2013>> left,	-	1	Enquire
9	3Y0199336	stop plate, D - 25.11.2013>>	3Y0199336 stop plate, D - 25.11.2013>> right,	-	1	Enquire
10	WHT003243	countersunk bolt	WHT003243 countersunk bolt M5X20,	-	2	Enquire
11	7V199584	engine mounting bracket	7V199584 engine mounting bracket right,	-	1	Enquire
12	7V199583	engine mounting bracket	7V199583 engine mounting bracket left,	-	1	Enquire
13	WHT002862	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002862 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 3/8UNFX1.250",	-	3	Enquire
13	N01472310	bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N01472310 bolt, with hex. socket, hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M10X30,	-	3	Enquire
14	WHT002863	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002863 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 3/8UNFX1.375",	-	1	Enquire
14	N10204807	hexagon head bolt (combi) for use with:	N10204807 hexagon head bolt (combi) for use with: M10X35,	-	1	Enquire
15	WHT002864	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002864 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 3/8UNFX1.750",	-	2	Enquire
15	N10728502	Hex collared bolt alternatively, you can use:	N10728502 Hex collared bolt alternatively, you can use: M10X42,	-	2	Enquire
16	WHT003245	bolt	WHT003245 bolt M10X40,	-	1	Enquire
17	WHT003244	washer	WHT003244 washer M10,	-	1	Enquire
18	3Z0199458	heat shield	3Z0199458 heat shield	-	1	Enquire
19	N10286110	Hexagon collar nut self-locking	N10286110 Hexagon collar nut self-locking M10,	-	1	Enquire
21	WHT002851	Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	WHT002851 Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 19X9,9X2,	-	6	Enquire
21	WHT002851	Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	WHT002851 Washer, only to be used with:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 19 X 9.9 X 2MM, N 014 723 10,	-	3	Enquire
