oil pan of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - oil pan

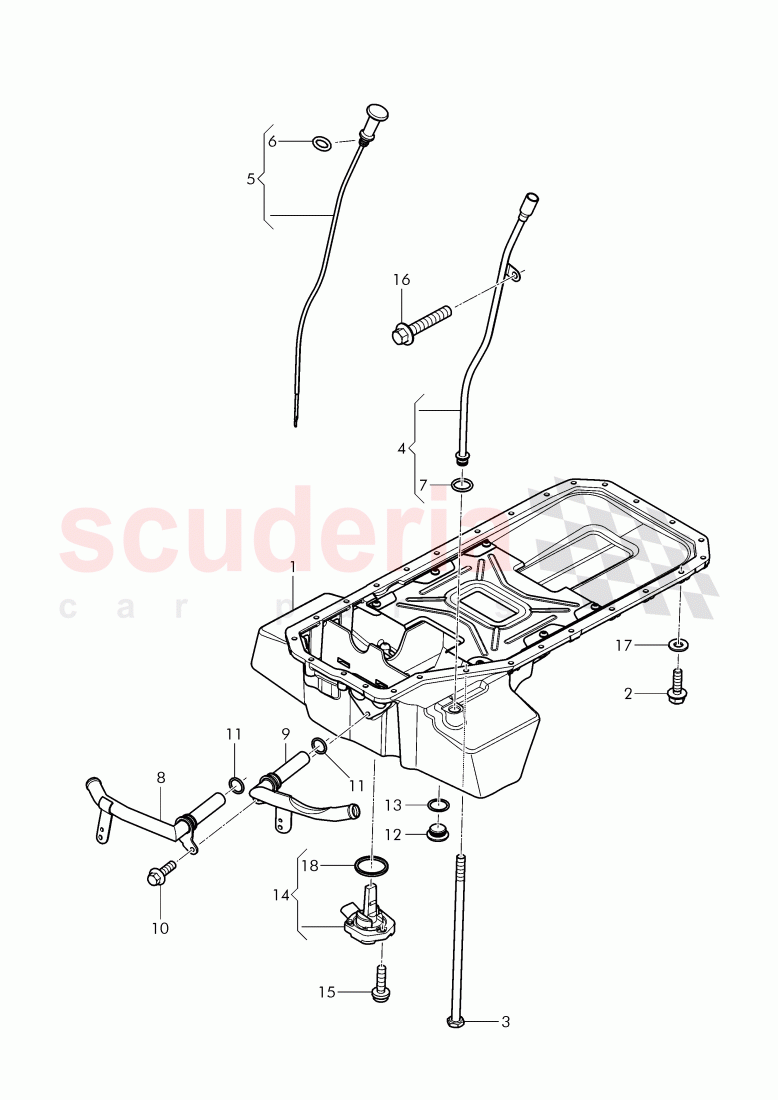

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V103601E	Engine oil sump, assembly, D - 10.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002844	bolt, F >> 3Y-C-016 977, F >> ZH-C-016 977	Enquire
	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002770	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V115629B	tube for oil dipstick	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V115611	oil dipstick	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002929	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	34115427B	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103428A	oil pipe, return pipe, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103427A	oil pipe, return pipe, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002755	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002921	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	28103059A	oil drain plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0907660F	oil level sensor, D - 21.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002766	bolt, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire

Photo	Part No	Description	Price (each)	Stock
	38103196	seal ring	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V103601E	Engine oil sump, assembly, D - 10.06.2013>>	7V103601E Engine oil sump, assembly, D - 10.06.2013>>	-	1	Enquire
2	WHT002844	bolt, F >> 3Y-C-016 977, F >> ZH-C-016 977	WHT002844 bolt, F >> 3Y-C-016 977, F >> ZH-C-016 977 1/4UNFX0.875",	-	23	Enquire
2	N10434904	bolt, F 3Y-C-016 978>>, F ZH-C-016 978>>	N10434904 bolt, F 3Y-C-016 978>>, F ZH-C-016 978>> M6X20,	-	23	Enquire
3	WHT002770	bolt	WHT002770 bolt 1/4UNFX5.75",	-	4	Enquire
4	7V115629B	tube for oil dipstick	7V115629B tube for oil dipstick	-	1	Enquire
5	7V115611	oil dipstick	7V115611 oil dipstick	-	1	Enquire
6	WHT002929	seal ring	WHT002929 seal ring 0.362",	-	1	Enquire
7	34115427B	O-ring	34115427B O-ring 12X2,	-	1	Enquire
8	7V103428A	oil pipe, return pipe, (For turbocharger)	7V103428A oil pipe, return pipe, (For turbocharger) cylinders 1-4,	-	1	Enquire
9	7V103427A	oil pipe, return pipe, (For turbocharger)	7V103427A oil pipe, return pipe, (For turbocharger) cylinders 5-8,	-	1	Enquire
10	WHT002755	bolt	WHT002755 bolt M6X20,	-	1	Enquire
11	WHT002921	seal ring	WHT002921 seal ring 20,	-	2	Enquire
12	28103059A	oil drain plug	28103059A oil drain plug M24X1.5,	-	1	Enquire
13	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	WHT002909 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	-	1	Enquire
14	1J0907660F	oil level sensor, D - 21.10.2013>>	1J0907660F oil level sensor, D - 21.10.2013>>	-	1	Enquire
15	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	3	Enquire
16	WHT002766	bolt, also use:	WHT002766 bolt, also use: M8X45,	-	1	Enquire
17	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002849 Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 7X14X1,5,	-	23	Enquire
18	38103196	seal ring	38103196 seal ring	-	1	Enquire
