Exhaust gas turbocharger, (water-cooled), D >> - MJ 2015 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - Exhaust gas turbocharger, (water-cooled), D >> - MJ 2015

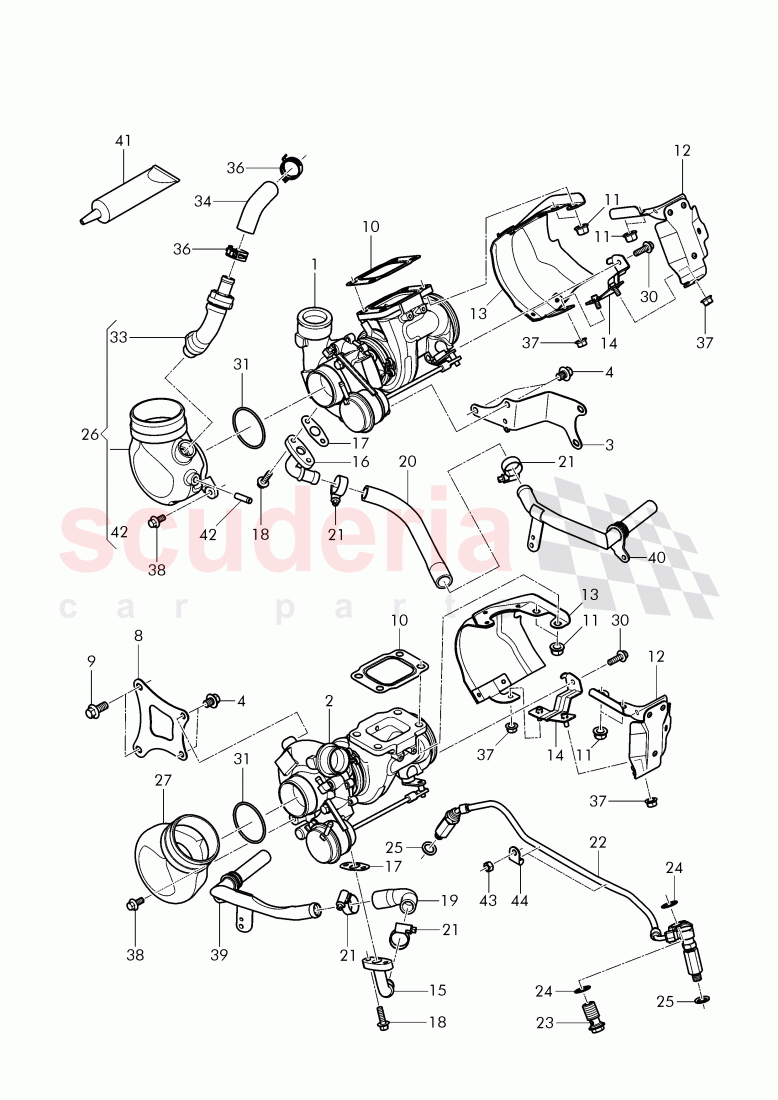

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V145061H	Exhaust gas turbocharger, (water-cooled)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145061G	Exhaust gas turbocharger, (water-cooled)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145145B	supporting bracket (for turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002712	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145195	support bracket (for turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002768	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145215	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	PZ105921PA	NUT M10 X 1.5 PITCH	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145323	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145324	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145814	securing bracket heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145772	oil pipe, return pipe, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145772A	oil pipe, return pipe, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145113	gasket, oil pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002755	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145743	oil return hose, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145743A	oil return hose, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002835	hose clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145771B	oil pipe, feed pipe, (For turbocharger), D - 13.05.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002887	union bolt, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007470	cover plate, D - 23.06.2014>>	Enquire
	WHT007470	cover plate, D - 23.06.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002834	sealing washer, copper	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145204C	elbow, assembly, Exhaust gas turbocharger, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V145207E	elbow, Exhaust gas turbocharger, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002716	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002776	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103156	check valve, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103224	vent hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000519	shouldered hex. nut, D - 23.05.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V133380	connecting pipe, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002867	hex. nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002771	securing clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V145061H	Exhaust gas turbocharger, (water-cooled)	7V145061H Exhaust gas turbocharger, (water-cooled) cylinders 1-4,	-	1	Enquire
2	7V145061G	Exhaust gas turbocharger, (water-cooled)	7V145061G Exhaust gas turbocharger, (water-cooled) cylinders 5-8,	-	1	Enquire
3	7V145145B	supporting bracket (for turbocharger)	7V145145B supporting bracket (for turbocharger) cylinders 1-4,	-	1	Enquire
4	WHT002712	bolt	WHT002712 bolt M8X1X10,	-	4	Enquire
8	7V145195	support bracket (for turbocharger)	7V145195 support bracket (for turbocharger) cylinders 5-8,	-	1	Enquire
9	WHT002768	bolt	WHT002768 bolt M8X25,	-	2	Enquire
10	7V145215	gasket	7V145215 gasket	-	2	Enquire
11	PZ105921PA	NUT M10 X 1.5 PITCH	PZ105921PA NUT M10 X 1.5 PITCH M10,	-	8	Enquire
12	7V145323	heat shield	7V145323 heat shield	-	2	Enquire
13	7V145324	heat shield	7V145324 heat shield	-	2	Enquire
14	7V145814	securing bracket heat shield	7V145814 securing bracket heat shield	-	2	Enquire
15	7V145772	oil pipe, return pipe, (For turbocharger)	7V145772 oil pipe, return pipe, (For turbocharger) left,	-	1	Enquire
16	7V145772A	oil pipe, return pipe, (For turbocharger)	7V145772A oil pipe, return pipe, (For turbocharger) right,	-	1	Enquire
17	7V145113	gasket, oil pipe	7V145113 gasket, oil pipe	-	2	Enquire
18	WHT002755	bolt	WHT002755 bolt M6X20,	-	4	Enquire
19	7V145743	oil return hose, (For turbocharger)	7V145743 oil return hose, (For turbocharger) left,	-	1	Enquire
20	7V145743A	oil return hose, (For turbocharger)	7V145743A oil return hose, (For turbocharger) right,	-	1	Enquire
21	WHT002835	hose clip	WHT002835 hose clip 20-32,	-	4	Enquire
22	7V145771B	oil pipe, feed pipe, (For turbocharger), D - 13.05.2013>>	7V145771B oil pipe, feed pipe, (For turbocharger), D - 13.05.2013>> left a. right,	-	1	Enquire
23	WHT002887	union bolt, also use:	WHT002887 union bolt, also use: LOCTITE 572,	-	1	Enquire
24	WHT007470	cover plate, D - 23.06.2014>>	WHT007470 cover plate, D - 23.06.2014>> 0,95",	-	2	Enquire
24	WHT007470	cover plate, D - 23.06.2014>>	WHT007470 cover plate, D - 23.06.2014>> 19,05X24,15X1,	-	2	Enquire
25	WHT002834	sealing washer, copper	WHT002834 sealing washer, copper	-	2	Enquire
26	7V145204C	elbow, assembly, Exhaust gas turbocharger, D - 20.03.2017>>	7V145204C elbow, assembly, Exhaust gas turbocharger, D - 20.03.2017>> cylinders 1-4,	-	1	Enquire
27	7V145207E	elbow, Exhaust gas turbocharger, D - 20.03.2017>>	7V145207E elbow, Exhaust gas turbocharger, D - 20.03.2017>> cylinders 5-8,	-	1	Enquire
30	WHT002716	bolt	WHT002716 bolt M6 X 20MM,	-	2	Enquire
31	WHT002776	o-ring	WHT002776 o-ring 59,5,	-	2	Enquire
33	7V103156	check valve, also use:	7V103156 check valve, also use: LOCTITE 648,	-	1	Enquire
34	7V103224	vent hose	7V103224 vent hose	-	1	Enquire
36	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27,	-	2	Enquire
37	WHT000519	shouldered hex. nut, D - 23.05.2011>>	WHT000519 shouldered hex. nut, D - 23.05.2011>> M6,	-	4	Enquire
38	WHT002753	bolt	WHT002753 bolt M6X14,	-	2	Enquire
42	7V133380	connecting pipe, also use:	7V133380 connecting pipe, also use: LOCTITE 648,	-	1	Enquire
43	WHT002867	hex. nut	WHT002867 hex. nut 5/16" UNF,	-	2	Enquire
44	WHT002771	securing clip	WHT002771 securing clip D=10MM,	-	2	Enquire
