Bentley Mulsanne (2010+) - camshaft, valves, D >> - MJ 2015

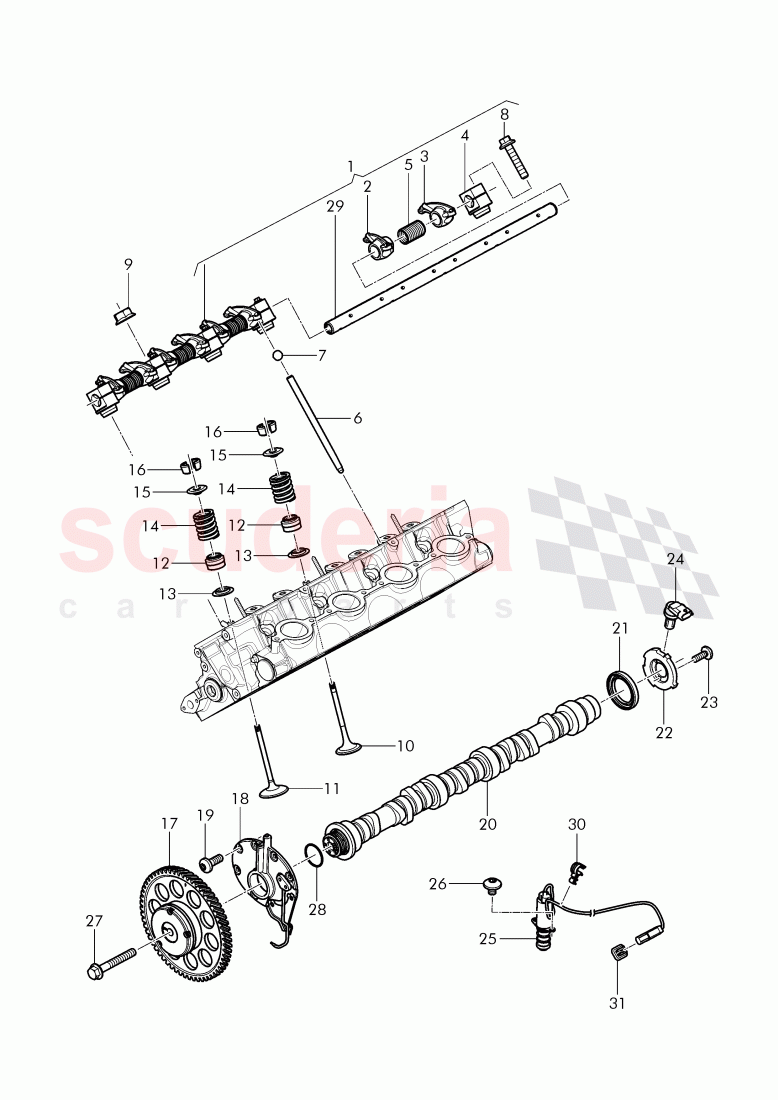

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V109401	rocker lever shaft with, valve lever	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109337A	rocker arm, intake valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109338A	rocker arm, exhaust valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109423	support valve lever shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109433	spacer valve lever shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109301A	push rod, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109321	ball, push rod	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002802	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002763	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109611	exhaust valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109601	intake valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109675	valve guide seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109629	spring disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109357	valve spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109641	spring retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109651	cotter, split	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109227B	camshaft sprocket, camshaft adjuster unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109142A	thrust plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451410	socket head bolt with inner, hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109101C	camshaft, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109230	camshaft position trigger, wheel	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91074201	Hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103245	control valve, camshaft adjuster unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10488302	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	66109345B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109402	rocker arm shaft	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0611770	securing clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0937510A	bracket for connector housing, flat contact housing, f. hole/sheet metal thickness:	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V109401	rocker lever shaft with, valve lever	7V109401 rocker lever shaft with, valve lever	-	2	Enquire
2	7V109337A	rocker arm, intake valve	7V109337A rocker arm, intake valve	-	8	Enquire
3	7V109338A	rocker arm, exhaust valve	7V109338A rocker arm, exhaust valve	-	8	Enquire
4	7V109423	support valve lever shaft	7V109423 support valve lever shaft	-	10	Enquire
5	7V109433	spacer valve lever shaft	7V109433 spacer valve lever shaft	-	8	Enquire
6	7V109301A	push rod, assembly	7V109301A push rod, assembly	-	16	Enquire
7	7V109321	ball, push rod	7V109321 ball, push rod	-	16	Enquire
8	WHT002802	bolt	WHT002802 bolt M6X30,	-	10	Enquire
9	WHT002763	hex. nut with washer	WHT002763 hex. nut with washer M8,	-	10	Enquire
10	7V109611	exhaust valve	7V109611 exhaust valve	-	8	Enquire
11	7V109601	intake valve	7V109601 intake valve	-	8	Enquire
12	7V109675	valve guide seal	7V109675 valve guide seal	-	16	Enquire
13	7V109629	spring disc	7V109629 spring disc lower,	-	16	Enquire
14	7V109357	valve spring	7V109357 valve spring	-	16	Enquire
15	7V109641	spring retainer	7V109641 spring retainer	-	16	Enquire
16	7V109651	cotter, split	7V109651 cotter, split	-	32	Enquire
17	7V109227B	camshaft sprocket, camshaft adjuster unit	7V109227B camshaft sprocket, camshaft adjuster unit	-	1	Enquire
18	7V109142A	thrust plate	7V109142A thrust plate	-	1	Enquire
19	N10451410	socket head bolt with inner, hex round head	N10451410 socket head bolt with inner, hex round head	-	8	Enquire
20	7V109101C	camshaft, also use:	7V109101C camshaft, also use: 066 109 345 B,	-	1	Enquire
22	7V109230	camshaft position trigger, wheel	7V109230 camshaft position trigger, wheel	-	1	Enquire
23	N91074201	Hexagon socket head bolt	N91074201 Hexagon socket head bolt	-	3	Enquire
25	7V103245	control valve, camshaft adjuster unit	7V103245 control valve, camshaft adjuster unit	-	1	Enquire
26	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	N10284905 fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	-	2	Enquire
27	N10488302	bolt, hex. hd. with shoulder	N10488302 bolt, hex. hd. with shoulder AM12X1,5X85,	-	1	Enquire
28	66109345B	seal ring	66109345B seal ring 40X1,5,	-	3	Enquire
29	7V109402	rocker arm shaft	7V109402 rocker arm shaft	-	2	Enquire
30	3Z0611770	securing clip	3Z0611770 securing clip	-	1	Enquire
31	1J0937510A	bracket for connector housing, flat contact housing, f. hole/sheet metal thickness:	1J0937510A bracket for connector housing, flat contact housing, f. hole/sheet metal thickness:	-	1	Enquire
