Charge Air Cooler, F >> 3Y-G-001 491, F >> Zh-G-001 491

Bentley Mulsanne (2010+)

Find Your Part

Bentley Mulsanne (2010+) - charge air cooler, F >> 3Y-G-001 491, F >> ZH-G-001 491

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7V145730B charge air cooler Enquire
Photo Part No Description Price (each) Stock
7V145749B charge air cooler Enquire
Photo Part No Description Price (each) Stock
7V145717C badge (self-adhesive) Enquire
Photo Part No Description Price (each) Stock
7V145848 rubber isolator Enquire
Photo Part No Description Price (each) Stock
WHT002762 bolt Enquire
Photo Part No Description Price (each) Stock
WHT002730 bolt Enquire
Photo Part No Description Price (each) Stock
7V145369 nipple, bleeder screw Enquire
Photo Part No Description Price (each) Stock
WHT002821 sealing washer Enquire
Photo Part No Description Price (each) Stock
7V145855 air hose Enquire
Photo Part No Description Price (each) Stock
N10731801 spring clip, D - 30.09.2013>> - 03.03.2014 Enquire
Photo Part No Description Price (each) Stock
7V145744 connecting elbow Enquire
Photo Part No Description Price (each) Stock
7V133073 gasket, throttle valve Enquire
Photo Part No Description Price (each) Stock
WHT002774 seal ring Enquire
Photo Part No Description Price (each) Stock
77133062C throttle valve adapter Enquire
Photo Part No Description Price (each) Stock
7V145813 bracket, throttle valve Enquire
Photo Part No Description Price (each) Stock
WHT002753 bolt Enquire
Photo Part No Description Price (each) Stock
WHT002901 bolt Enquire
Photo Part No Description Price (each) Stock
7V145492C carrier plate, charge air cooler, D - MJ 2016>> Enquire
Photo Part No Description Price (each) Stock
7V145493C mounting plate charge air cooler Enquire
Photo Part No Description Price (each) Stock
7V145674B Pipe assembly, charge air cooler, D - 20.03.2017>> Enquire
Photo Part No Description Price (each) Stock
7V145770B Pipe assembly, charge air cooler, D - 20.03.2017>> Enquire
Photo Part No Description Price (each) Stock
7V145599A Hose, charge air cooler, D - 21.09.2015>> Enquire
Photo Part No Description Price (each) Stock
N10518901 Hose Clamp Enquire
Photo Part No Description Price (each) Stock
7V145672E air hose Enquire
Photo Part No Description Price (each) Stock
7V145672D air hose Enquire
Photo Part No Description Price (each) Stock
WHT002837 hose clip Enquire
Photo Part No Description Price (each) Stock
7V145123 clamping bracket (for turbocharger) Enquire
Photo Part No Description Price (each) Stock
7V131133A bracket, harness for oxygen sensor Enquire
Photo Part No Description Price (each) Stock
WHT002751 bolt Enquire
Photo Part No Description Price (each) Stock
WHT002761 bolt Enquire
Photo Part No Description Price (each) Stock
WHT002896 washer Enquire
Photo Part No Description Price (each) Stock
7V145593 hose for turbocharger Enquire
Photo Part No Description Price (each) Stock
WHT002696 seal ring Enquire
Photo Part No Description Price (each) Stock
N10599501 round hd. screw, see illustration, item: Enquire
Photo Part No Description Price (each) Stock
WHT002753 bolt Enquire
Photo Part No Description Price (each) Stock
WHT002836 hose clip Enquire
View All

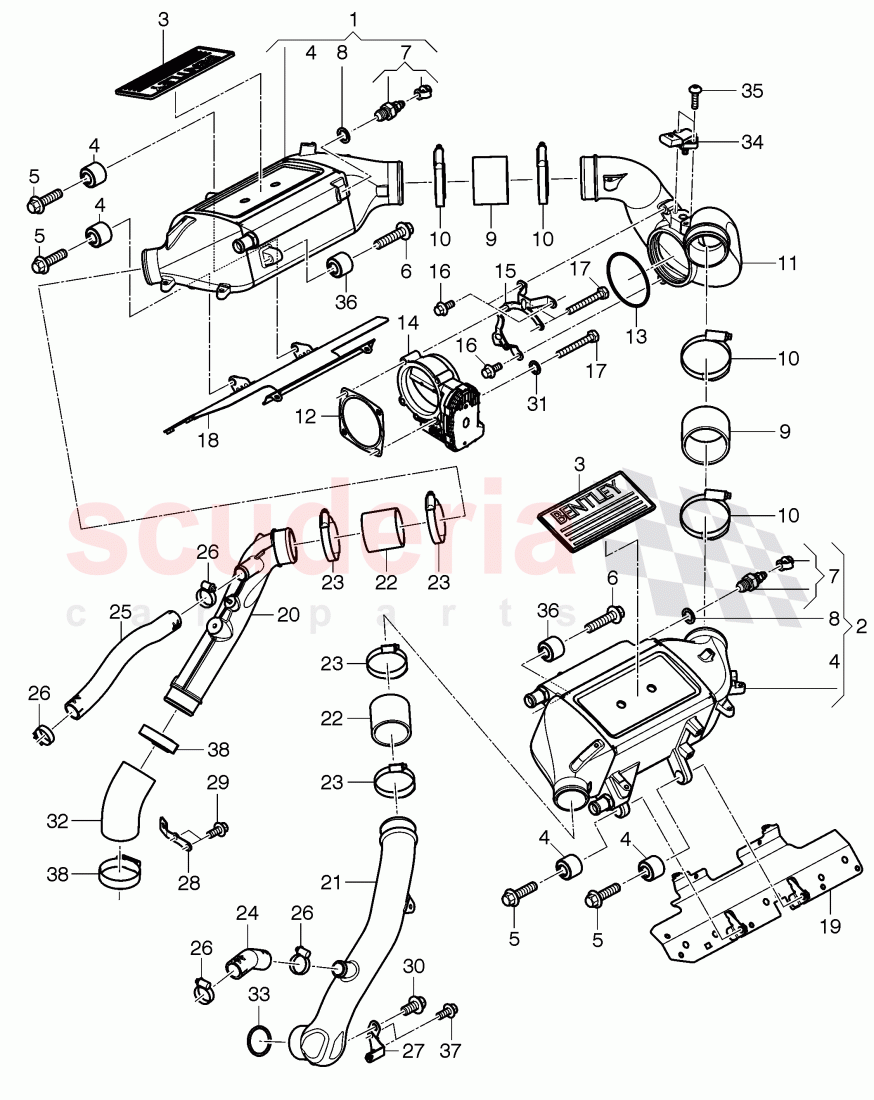

charge air cooler, F >> 3Y-G-001 491, F >> ZH-G-001 491 of Bentley Bentley Mulsanne (2010+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7V145730B
charge air cooler
cylinders 1-4, 		- 1 Enquire
2 7V145749B
charge air cooler
cylinders 5-8, 		- 1 Enquire
3 7V145717C
badge (self-adhesive) 		- 2 Enquire
4 7V145848
rubber isolator 		- 4 Enquire
5 WHT002762
bolt
M8X30, 		- 4 Enquire
6 WHT002730
bolt
M8X35, 		- 2 Enquire
7 7V145369
nipple, bleeder screw 		- 2 Enquire
8 WHT002821
sealing washer
M10, 		- 2 Enquire
9 7V145855
air hose 		- 2 Enquire
10 N10731801
spring clip, D - 30.09.2013>> - 03.03.2014
70-90X12, 		- 4 Enquire
11 7V145744
connecting elbow 		- 1 Enquire
12 7V133073
gasket, throttle valve 		- 1 Enquire
13 WHT002774
seal ring
88X3, 		- 1 Enquire
14 77133062C
throttle valve adapter 		- 1 Enquire
15 7V145813
bracket, throttle valve 		- 1 Enquire
16 WHT002753
bolt
M6X14, 		- 3 Enquire
17 WHT002901
bolt
M6X45, 		- 4 Enquire
18 7V145492C
carrier plate, charge air cooler, D - MJ 2016>>
cylinders 1-4, 		- 1 Enquire
19 7V145493C
mounting plate charge air cooler
cylinders 5-8, 		- 1 Enquire
20 7V145674B
Pipe assembly, charge air cooler, D - 20.03.2017>> 		- 1 Enquire
21 7V145770B
Pipe assembly, charge air cooler, D - 20.03.2017>>
cylinders 5-8, 		- 1 Enquire
22 7V145599A
Hose, charge air cooler, D - 21.09.2015>> 		- 2 Enquire
23 N10518901
Hose Clamp
50-70X12, 		- 4 Enquire
24 7V145672E
air hose
cylinders 5-8, 		- 1 Enquire
25 7V145672D
air hose
cylinders 1-4, 		- 1 Enquire
26 WHT002837
hose clip
22-32, 		- 4 Enquire
27 7V145123
clamping bracket (for turbocharger)
cylinders 5-8, 		- 1 Enquire
28 7V131133A
bracket, harness for oxygen sensor
cylinders 1-4, 		- 1 Enquire
29 WHT002751
bolt
M6X10, 		- 2 Enquire
30 WHT002761
bolt
M8X16, 		- 1 Enquire
31 WHT002896
washer
M6, 		- 1 Enquire
32 7V145593
hose for turbocharger
cylinders 1-4, 		- 1 Enquire
33 WHT002696
seal ring
40,87X3,53, 		- 1 Enquire
35 N10599501
round hd. screw, see illustration, item:
906-010,17, 		- 2 Enquire
37 WHT002753
bolt
M6X14, 		- 2 Enquire
38 WHT002836
hose clip
40MM - 60MM, 		- 2 Enquire
