Bentley Mulsanne (2010+) - water pump, water pump housing, additional water pump

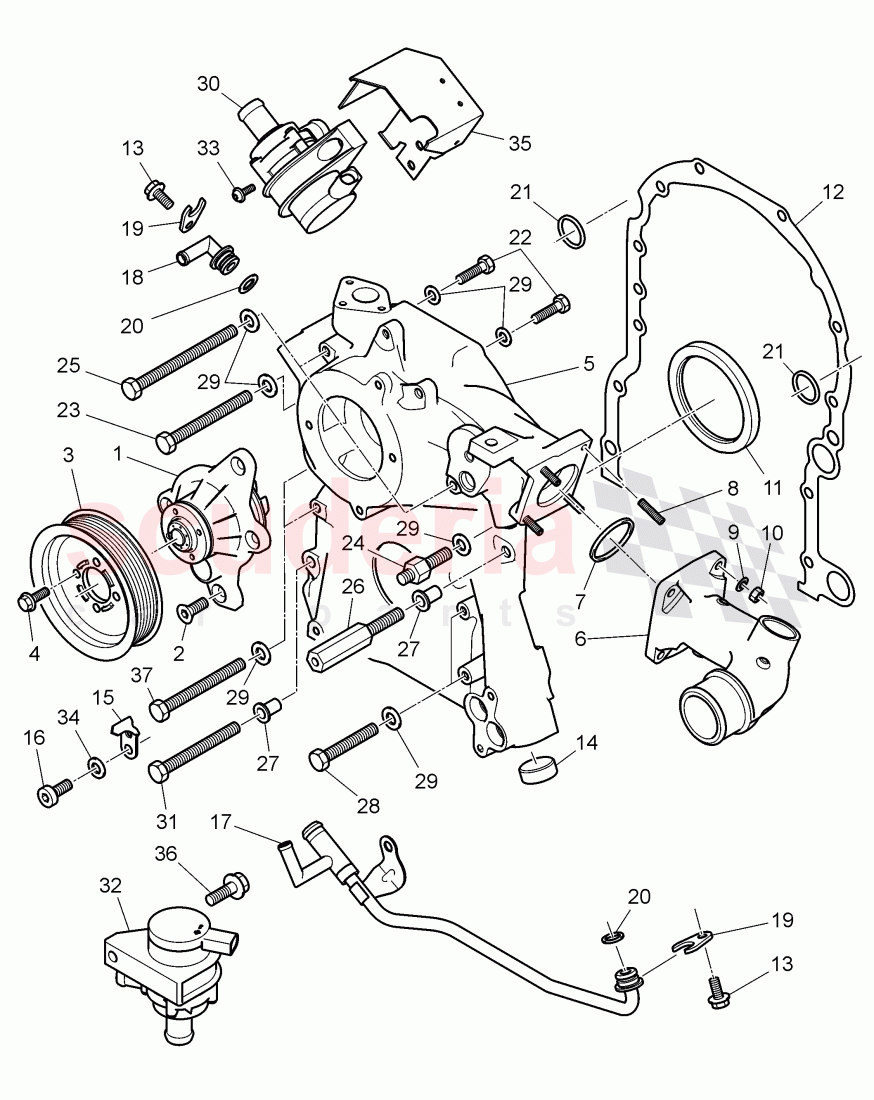

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7D121008B	Coolant pump with glued in sealing ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10531402	oval head countersunk bolt with multi-point socket head D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121031A	pulley coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10005306	hexagon head bolt (combi) D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121035A	water pump housing, F >> 3Y-C-016 977, F >> ZH-C-016 977	Enquire
	7V121035B	water pump housing, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire
	7V121035C	water pump housing, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121175A	elbow, water pump, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002696	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002872	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002866	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock

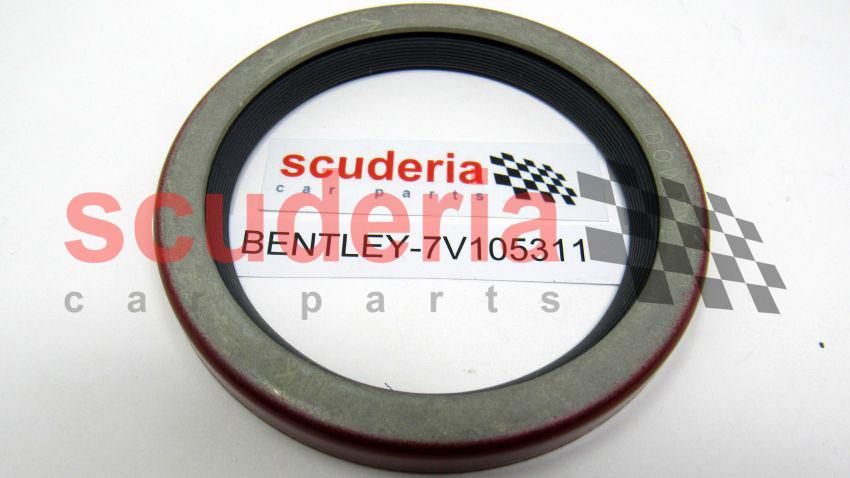

	7V105311	shaft oil seal crankshaft	Enquire

Photo	Part No	Description	Price (each)	Stock

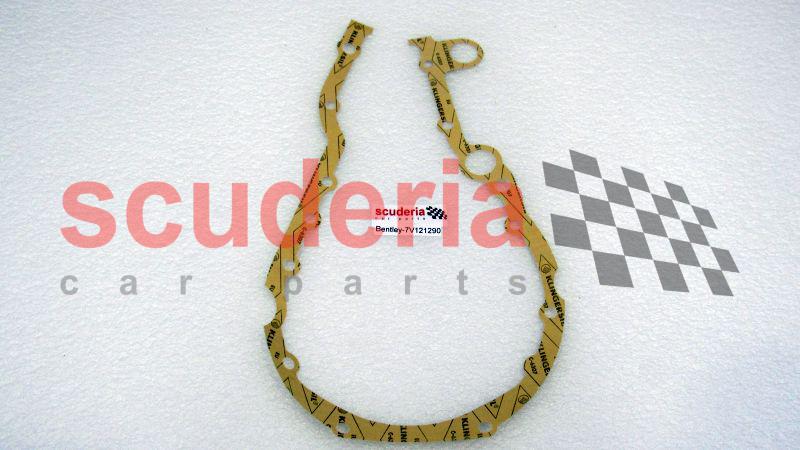

	7V121290	gasket, engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121418	plug, shaft screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121724A	retainer for ignition point sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121494	coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121493	coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121278B	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock

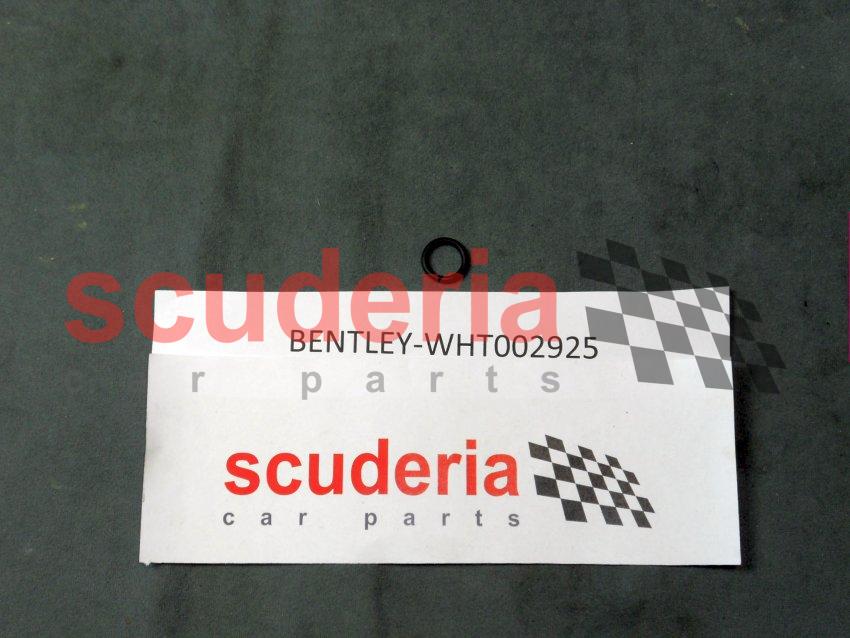

	WHT002925	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007582	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock

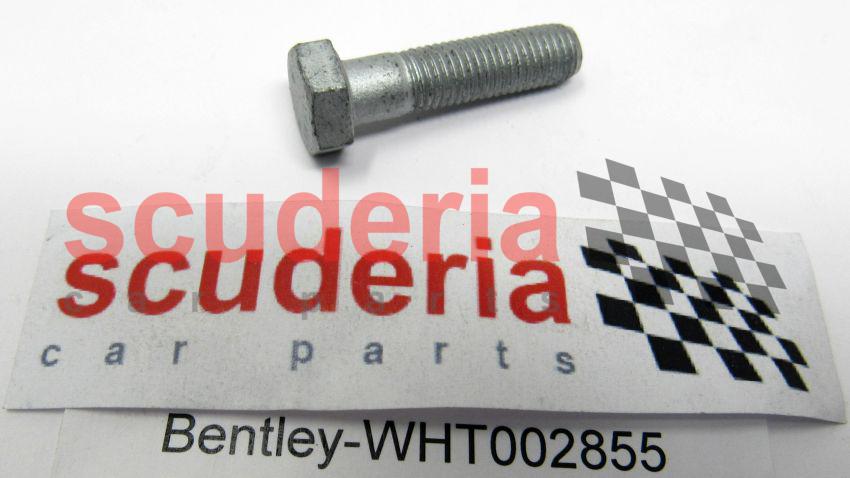

	WHT002855	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire
	N0103328	screw, hex. hd., F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002860	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002932	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002779	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10036203	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002706	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002883	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002859	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10706301	screw, hex. hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire
	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V965561	additional coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0965561C	additional coolant pump (for turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121224	heat shield additional coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7D121008B	Coolant pump with glued in sealing ring	7D121008B Coolant pump with glued in sealing ring	-	1	Enquire
2	N10531402	oval head countersunk bolt with multi-point socket head D - MJ 2007>>	N10531402 oval head countersunk bolt with multi-point socket head D - MJ 2007>> M8X25,	-	4	Enquire
3	7V121031A	pulley coolant pump	7V121031A pulley coolant pump	-	1	Enquire
4	N10005306	hexagon head bolt (combi) D - MJ 2007>>	N10005306 hexagon head bolt (combi) D - MJ 2007>>	-	4	Enquire
5	7V121035A	water pump housing, F >> 3Y-C-016 977, F >> ZH-C-016 977	7V121035A water pump housing, F >> 3Y-C-016 977, F >> ZH-C-016 977	-	1	Enquire
5	7V121035B	water pump housing, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	7V121035B water pump housing, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	-	1	Enquire
5	7V121035C	water pump housing, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	7V121035C water pump housing, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	-	1	Enquire
6	7V121175A	elbow, water pump, D - 20.03.2017>>	7V121175A elbow, water pump, D - 20.03.2017>>	-	1	Enquire
7	WHT002696	seal ring	WHT002696 seal ring	-	1	Enquire
8	WHT002872	stud	WHT002872 stud 0,25"X1,25",	-	4	Enquire
9	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002849 Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 7X14X1,5,	-	4	Enquire
10	WHT002866	hexagon nut	WHT002866 hexagon nut 1/4" UNF,	-	4	Enquire
11	7V105311	shaft oil seal crankshaft	7V105311 shaft oil seal crankshaft front,	-	1	Enquire
12	7V121290	gasket, engine	7V121290 gasket, engine	-	1	Enquire
13	WHT002753	bolt	WHT002753 bolt M6X14,	-	3	Enquire
14	7V121418	plug, shaft screw	7V121418 plug, shaft screw LOCTITE 577,	-	1	Enquire
15	7V121724A	retainer for ignition point sensor	7V121724A retainer for ignition point sensor	-	1	Enquire
16	WHT002753	bolt	WHT002753 bolt M6X14,	-	1	Enquire
17	7V121494	coolant pipe	7V121494 coolant pipe	-	1	Enquire
18	7V121493	coolant pipe	7V121493 coolant pipe	-	1	Enquire
19	7V121278B	retaining plate	7V121278B retaining plate	-	2	Enquire
20	WHT002925	seal ring	WHT002925 seal ring 12,6 I/D,	-	1	Enquire
21	WHT007582	seal ring	WHT007582 seal ring 26,57X3,53,	-	2	Enquire
22	WHT002855	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002855 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 5/16UNF X1., 250",	-	2	Enquire
22	N0103328	screw, hex. hd., F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N0103328 screw, hex. hd., F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X32,	-	2	Enquire
23	WHT002860	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002860 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 5/16UNFX3.250,	-	1	Enquire
23	N10111203	bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10111203 bolt, with hex. socket hd., (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X85,	-	1	Enquire
24	WHT002932	stud	WHT002932 stud 5/16UNF,	-	2	Enquire
25	WHT002779	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002779 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 5/16UNFX4.250",	-	2	Enquire
25	N10036203	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10036203 bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X105,	-	2	Enquire
26	WHT002706	stud	WHT002706 stud	-	1	Enquire
27	WHT002883	dowel pin	WHT002883 dowel pin	-	2	Enquire
28	WHT002859	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002859 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 5/16UNF X2.25",	-	2	Enquire
28	N10706301	screw, hex. hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10706301 screw, hex. hd., F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X55,	-	2	Enquire
29	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	WHT002850 Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 8,3X16X2,	-	9	Enquire
29	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	WHT002850 Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 8,3X16X2, 22,	-	2	Enquire
30	7V965561	additional coolant pump	7V965561 additional coolant pump	-	1	Enquire
32	3W0965561C	additional coolant pump (for turbocharger)	3W0965561C additional coolant pump (for turbocharger)	-	1	Enquire
33	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	1	Enquire
35	7V121224	heat shield additional coolant pump	7V121224 heat shield additional coolant pump	-	1	Enquire
36	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	1	Enquire
