thermostat of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - thermostat

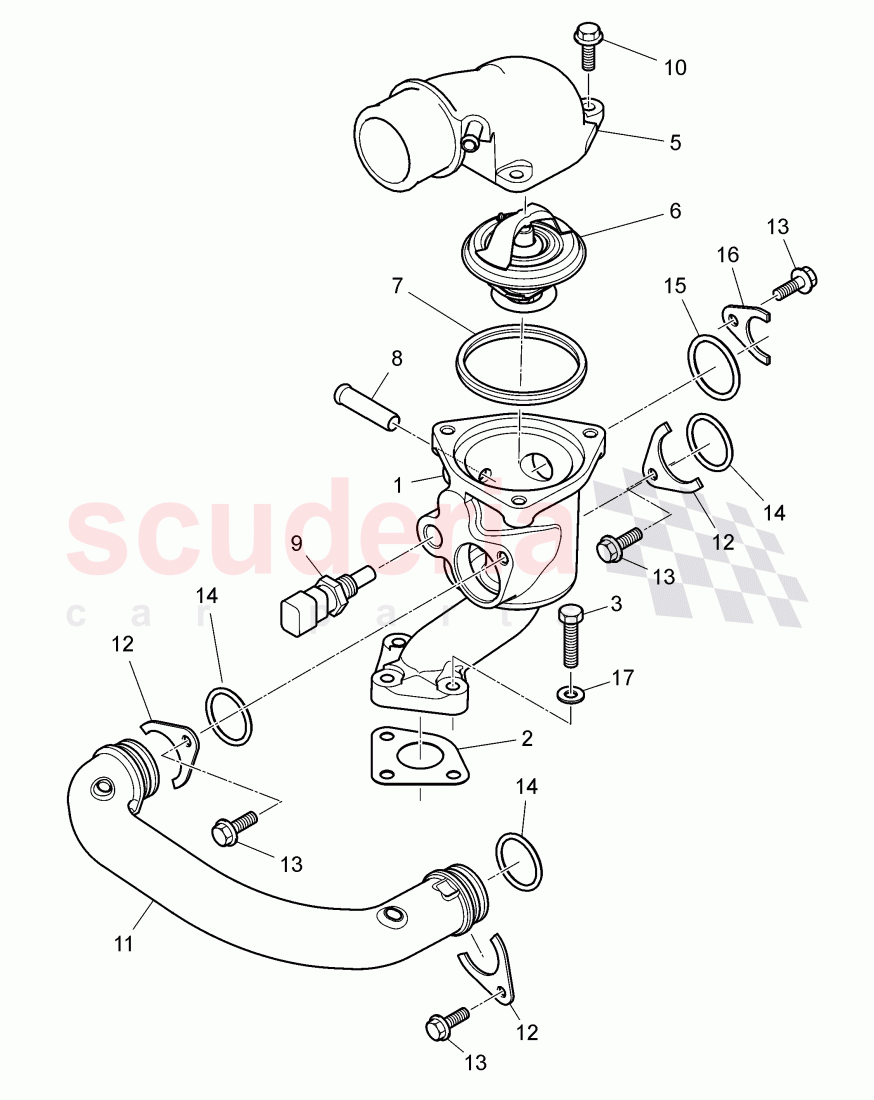

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V121117	thermostat housing, only to be used with:, additionally to be used items:, F >> 3Y-F-001 419, F >> ZH-F-001 419	Enquire
	7V121117B	thermostat housing, only to be used with:, additionally to be used items:, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121043	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005885	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire
	N10528402	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121114B	cover for thermostat, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock

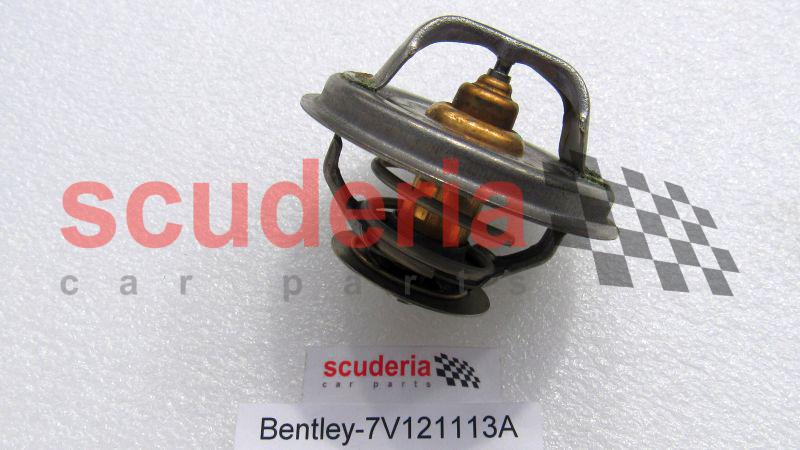

	7V121113A	thermostat, only to be used with:, F >> 3Y-F-001 419, F >> ZH-F-001 419	Enquire
	69121113	thermostat, only to be used with:, F 3Y-F-001 420>>, F ZH-F-001 420>>	Enquire

Photo	Part No	Description	Price (each)	Stock

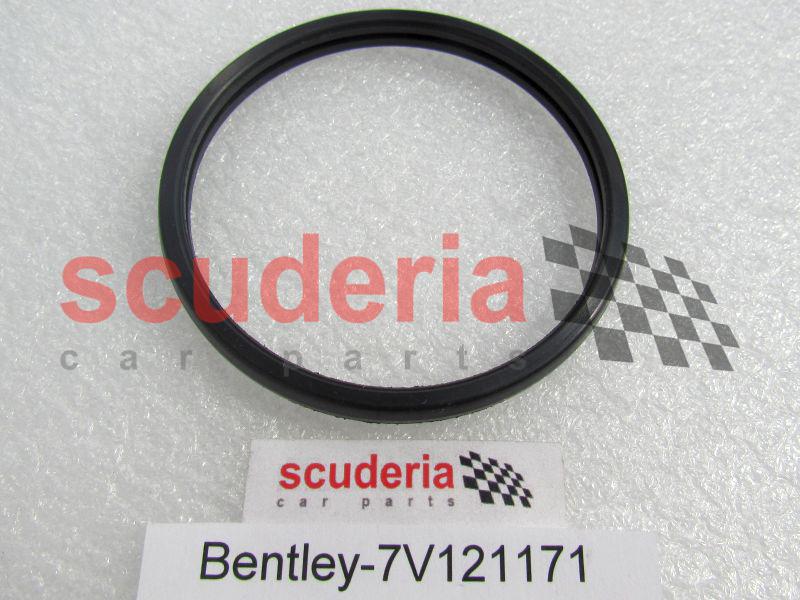

	7V121171	profile rubber	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121164	pipe	Enquire

Photo	Part No	Description	Price (each)	Stock

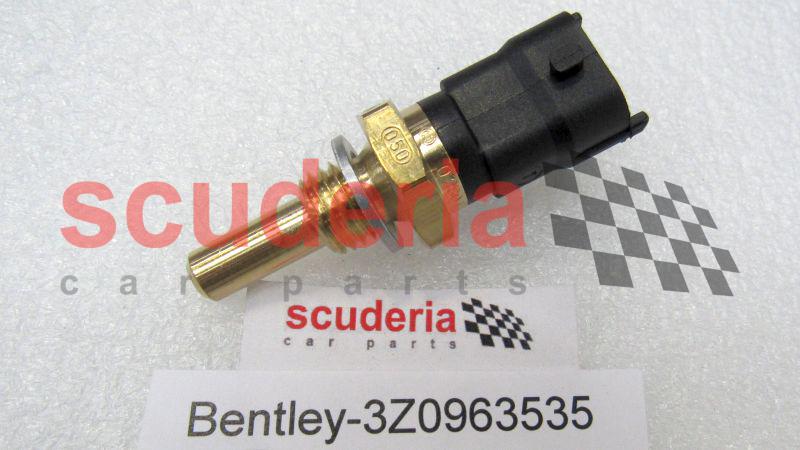

	3Z0963535	temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002755	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121083A	water tube, D - 20.03.2017>>	Enquire
	7V121083A	water tube, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121278	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002924	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V121117	thermostat housing, only to be used with:, additionally to be used items:, F >> 3Y-F-001 419, F >> ZH-F-001 419	7V121117 thermostat housing, only to be used with:, additionally to be used items:, F >> 3Y-F-001 419, F >> ZH-F-001 419 07V 121 113 A, 07V 121 164, LOCTITE 648,	-	1	Enquire
1	7V121117B	thermostat housing, only to be used with:, additionally to be used items:, D - 20.03.2017>>	7V121117B thermostat housing, only to be used with:, additionally to be used items:, D - 20.03.2017>> 069 121 113, 07V 121 164, LOCTITE 648,	-	1	Enquire
2	7V121043	gasket	7V121043 gasket	-	1	Enquire
3	WHT005885	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT005885 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 1/4UNFX1.250",	-	3	Enquire
3	N10528402	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10528402 bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M6X30,	-	3	Enquire
5	7V121114B	cover for thermostat, D - 20.03.2017>>	7V121114B cover for thermostat, D - 20.03.2017>>	-	1	Enquire
6	7V121113A	thermostat, only to be used with:, F >> 3Y-F-001 419, F >> ZH-F-001 419	7V121113A thermostat, only to be used with:, F >> 3Y-F-001 419, F >> ZH-F-001 419 07V 121 117,	-	1	Enquire
6	69121113	thermostat, only to be used with:, F 3Y-F-001 420>>, F ZH-F-001 420>>	69121113 thermostat, only to be used with:, F 3Y-F-001 420>>, F ZH-F-001 420>> 07V 121 117 A,	-	1	Enquire
7	7V121171	profile rubber	7V121171 profile rubber	-	1	Enquire
8	7V121164	pipe	7V121164 pipe	-	1	Enquire
9	3Z0963535	temperature sensor	3Z0963535 temperature sensor	-	1	Enquire
10	WHT002755	bolt	WHT002755 bolt M6X20,	-	3	Enquire
11	7V121083A	water tube, D - 20.03.2017>>	7V121083A water tube, D - 20.03.2017>> Bench 2,	-	1	Enquire
11	7V121083A	water tube, D - 20.03.2017>>	7V121083A water tube, D - 20.03.2017>> cylinders 5-8,	-	1	Enquire
12	7V121278	retaining plate	7V121278 retaining plate	-	2	Enquire
13	WHT002753	bolt	WHT002753 bolt M6X14,	-	3	Enquire
14	WHT002924	seal ring	WHT002924 seal ring 27,5X33,5,	-	3	Enquire
17	WHT002849	Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002849 Washer, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 7X14X1,5,	-	3	Enquire
