Find Your Part

cylinder head of Bentley Bentley Mulsanne (2010+)

View All

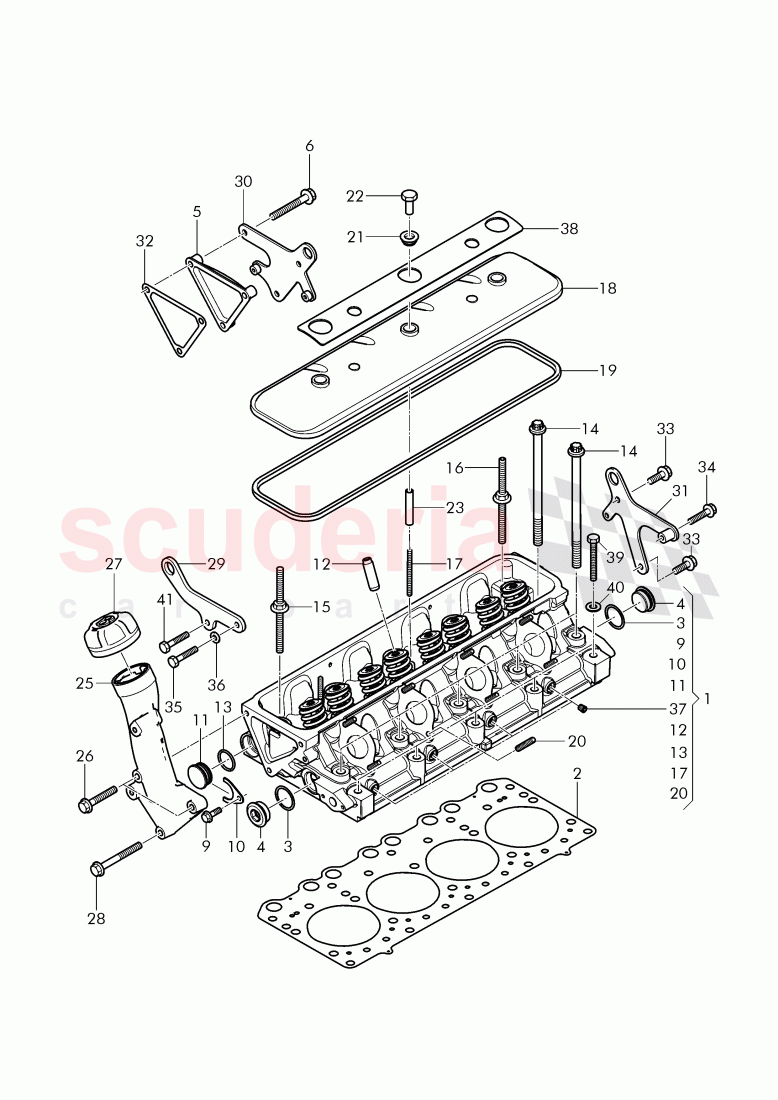

Bentley Mulsanne (2010+) - cylinder head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V103061B	cylinder head with valves, F 3Y-E-018 846>> 3Y-E-019 941, F ZH-E-018 846>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>, D >> - MJ 2015	Enquire
	7V103061G	cylinder head with valves, D - MJ 2017>>	Enquire
	7V103061G	cylinder head with valves, D - MJ 2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock

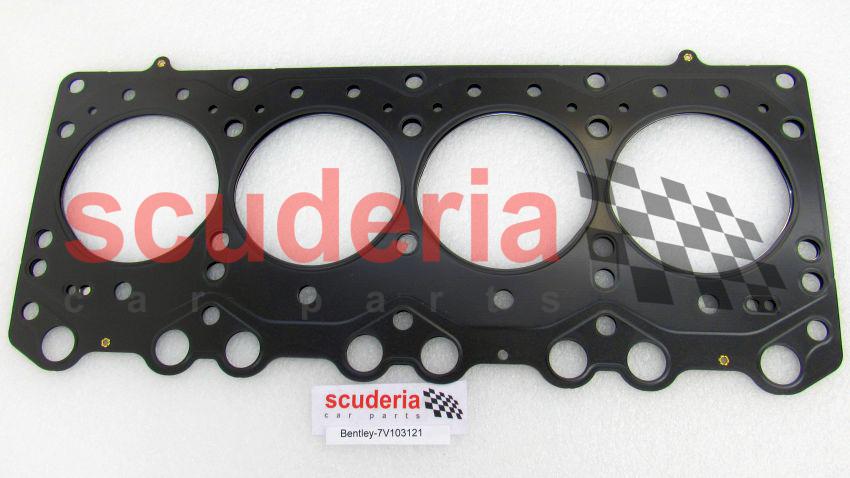

	7V103121	cylinder head gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103498	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103627	cover plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0195315	Hex collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121278	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002760	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103413	valve guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002924	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock

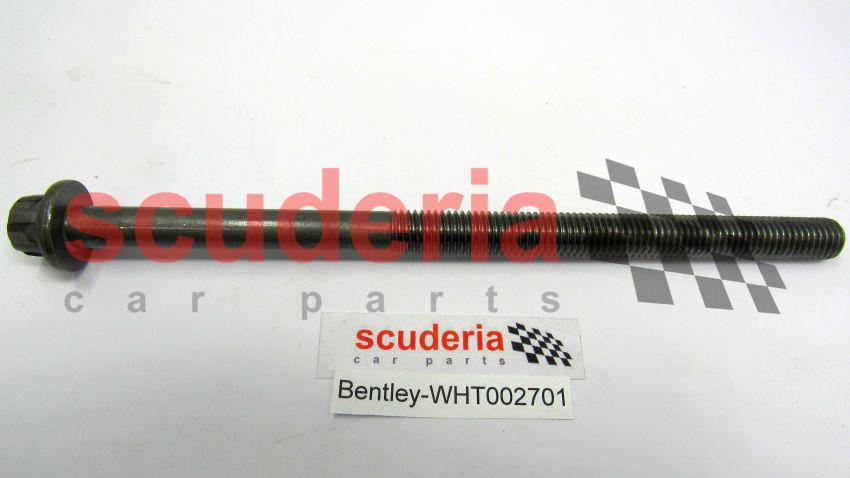

	WHT002701	bolt, cylinder head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002704	bolt, cylinder head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002703	bolt, cylinder head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002820	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109129	cylinder head cover	Enquire

Photo	Part No	Description	Price (each)	Stock

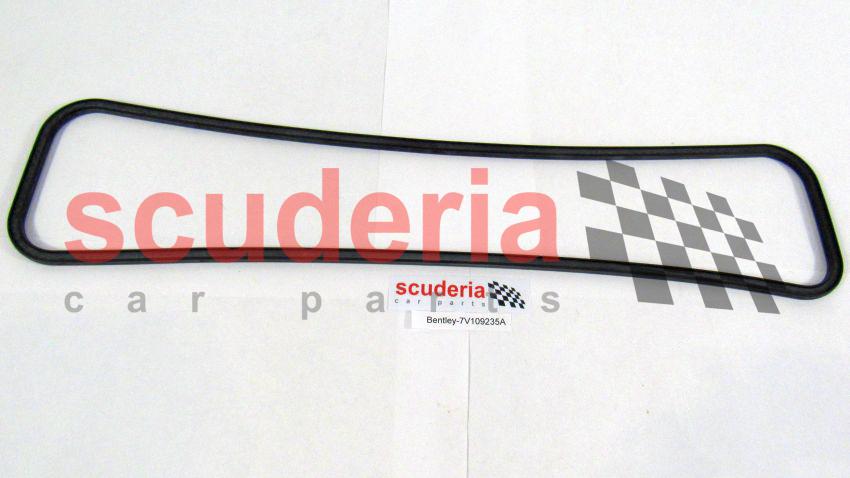

	7V109235A	gasket, cylinder head cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0444115	threaded pin	Enquire
	WHT008183	stud, D - MJ 2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109151A	grommet, D - 04.07.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002880	cap nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109135	distance piece cylinder head cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103530B	oil filler tube, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002766	bolt, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103485B	cap, oil filler tube, D - 20.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002777	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V199079	lifting bracket, engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103497	lifting bracket, engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103103A	lifting bracket, engine	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103771	gasket for cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002806	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002798	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002855	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire
	N10156009	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103035	hexagon socket head pipe nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109285	sound absorber (self-adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10295605	screw, hex. hd., D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003244	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002858	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	Enquire
	N10640801	Hexagon bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7V103061B	cylinder head with valves, F 3Y-E-018 846>> 3Y-E-019 941, F ZH-E-018 846>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>, D >> - MJ 2015	7V103061B cylinder head with valves, F 3Y-E-018 846>> 3Y-E-019 941, F ZH-E-018 846>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>, D >> - MJ 2015 CKBB	-	2	Enquire
1	7V103061G	cylinder head with valves, D - MJ 2017>>	7V103061G cylinder head with valves, D - MJ 2017>> CZMA,CZMB	-	2	Enquire
1	7V103061G	cylinder head with valves, D - MJ 2017>>	7V103061G cylinder head with valves, D - MJ 2017>>	-	2	Enquire
2	7V103121	cylinder head gasket	7V103121 cylinder head gasket	-	2	Enquire
3	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	WHT002911 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	-	4	Enquire
4	7V103498	threaded plug	7V103498 threaded plug	-	4	Enquire
5	7V103627	cover plate	7V103627 cover plate	-	1	Enquire
6	N0195315	Hex collared bolt	N0195315 Hex collared bolt M8X40,	-	3	Enquire
9	WHT002753	bolt	WHT002753 bolt M6X14,	-	2	Enquire
10	7V121278	retaining plate	7V121278 retaining plate	-	2	Enquire
11	WHT002760	threaded plug	WHT002760 threaded plug	-	2	Enquire
12	7V103413	valve guide	7V103413 valve guide	-	16	Enquire
13	WHT002924	seal ring	WHT002924 seal ring 27,5X33,5,	-	2	Enquire
14	WHT002701	bolt, cylinder head	WHT002701 bolt, cylinder head M12X200,	-	20	Enquire
15	WHT002704	bolt, cylinder head	WHT002704 bolt, cylinder head M10X80+M8X60,	-	8	Enquire
16	WHT002703	bolt, cylinder head	WHT002703 bolt, cylinder head M10X80+M8X60,	-	2	Enquire
17	WHT002820	stud	WHT002820 stud 1/4 UNF,	-	6	Enquire
18	7V109129	cylinder head cover	7V109129 cylinder head cover	-	2	Enquire
19	7V109235A	gasket, cylinder head cover	7V109235A gasket, cylinder head cover	-	2	Enquire
20	N0444115	threaded pin	N0444115 threaded pin M8X30,	-	16	Enquire
20	WHT008183	stud, D - MJ 2017>>	WHT008183 stud, D - MJ 2017>> M8X26,	-	16	Enquire
21	7V109151A	grommet, D - 04.07.2016>>	7V109151A grommet, D - 04.07.2016>>	-	6	Enquire
22	WHT002880	cap nut	WHT002880 cap nut 1/4 UNF,	-	6	Enquire
23	7V109135	distance piece cylinder head cover	7V109135 distance piece cylinder head cover	-	6	Enquire
25	7V103530B	oil filler tube, D - 20.03.2017>>	7V103530B oil filler tube, D - 20.03.2017>>	-	1	Enquire
26	WHT002766	bolt, also use:	WHT002766 bolt, also use: M8X45,	-	2	Enquire
27	7V103485B	cap, oil filler tube, D - 20.03.2017>>	7V103485B cap, oil filler tube, D - 20.03.2017>>	-	1	Enquire
28	WHT002777	bolt	WHT002777 bolt M8X70,	-	1	Enquire
29	7V199079	lifting bracket, engine	7V199079 lifting bracket, engine front, center,	-	1	Enquire
30	7V103497	lifting bracket, engine	7V103497 lifting bracket, engine Bench 1, rear,	-	1	Enquire
31	7V103103A	lifting bracket, engine	7V103103A lifting bracket, engine Bench 2, rear,	-	1	Enquire
32	7V103771	gasket for cover	7V103771 gasket for cover	-	1	Enquire
33	WHT002806	bolt	WHT002806 bolt M8X20,	-	2	Enquire
34	WHT002798	bolt	WHT002798 bolt M6X40,	-	1	Enquire
35	WHT002855	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002855 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 5/16UNFX1.250",	-	1	Enquire
35	N10156009	bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10156009 bolt, hex. hd. with shoulder, F 3Y-E-018 850>> 3Y-E-019 941, F ZH-E-018 850>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X25,	-	1	Enquire
36	WHT002850	Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	WHT002850 Washer, to be used for item:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> 8,3X16X2,	-	1	Enquire
37	7V103035	hexagon socket head pipe nut	7V103035 hexagon socket head pipe nut	-	8	Enquire
38	7V109285	sound absorber (self-adhesive)	7V109285 sound absorber (self-adhesive)	-	2	Enquire
39	N10295605	screw, hex. hd., D - 11.12.2006>>	N10295605 screw, hex. hd., D - 11.12.2006>> M10X70,	-	10	Enquire
40	WHT003244	washer	WHT003244 washer M10,	-	10	Enquire
41	WHT002858	bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849	WHT002858 bolt, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 849, F ZH-E-017 831>> ZH-E-018 849 5/16UNFX1.750",	-	1	Enquire
41	N10640801	Hexagon bolt	N10640801 Hexagon bolt M8X50,	-	1	Enquire
