Bentley Mulsanne (2010+) - water cooling, water hose, water tube

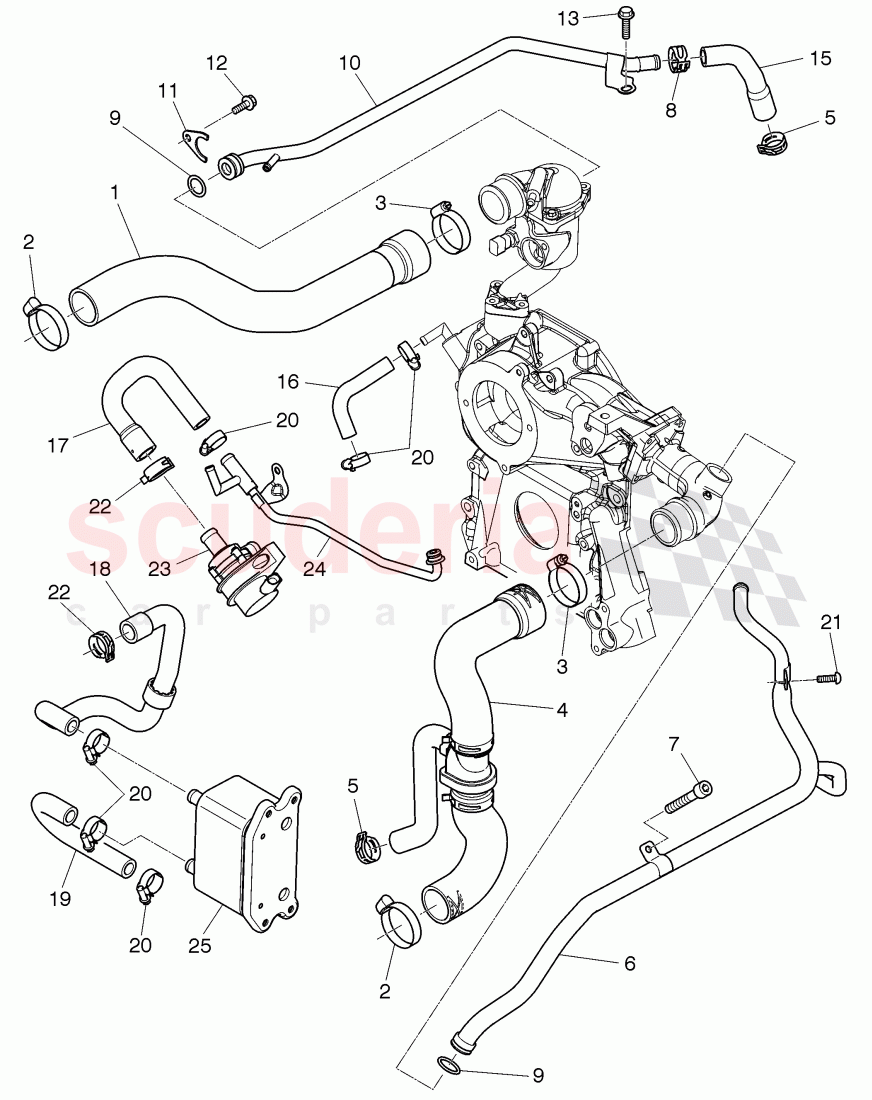

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0121621A	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0245046	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002836	hose clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0121081A	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121046A	coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002802	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002926	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121065B	coolant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121278A	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002753	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002762	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121625	coolant hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121051C	water hose, D - 08.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121157C	water hose, additional water pump, D - 08.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121049D	water hose, oil cooler, D - 20.10.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121052C	water hose, oil cooler, D - 08.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V121326	hose clip, D - 08.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90626204	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	7V121326	hose clip, D - 08.07.2013>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0121621A	coolant hose	3Y0121621A coolant hose	-	1	Enquire
2	N0245046	retaining clip	N0245046 retaining clip	-	2	Enquire
3	WHT002836	hose clip	WHT002836 hose clip 40-60,	-	2	Enquire
4	3Y0121081A	coolant hose	3Y0121081A coolant hose	-	1	Enquire
5	WHT007714	Spring band clamp	WHT007714 Spring band clamp	-	2	Enquire
6	7V121046A	coolant pipe	7V121046A coolant pipe	-	1	Enquire
7	WHT002802	bolt	WHT002802 bolt M6X30,	-	1	Enquire
8	N90686901	Spring band clamp	N90686901 Spring band clamp	-	1	Enquire
9	WHT002926	seal ring	WHT002926 seal ring 21,5,	-	2	Enquire
10	7V121065B	coolant pipe	7V121065B coolant pipe	-	1	Enquire
11	7V121278A	retaining plate	7V121278A retaining plate	-	1	Enquire
12	WHT002753	bolt	WHT002753 bolt M6X14,	-	1	Enquire
13	WHT002762	bolt	WHT002762 bolt M8X30,	-	1	Enquire
15	7V121625	coolant hose	7V121625 coolant hose	-	1	Enquire
16	7V121051C	water hose, D - 08.07.2013>>	7V121051C water hose, D - 08.07.2013>>	-	1	Enquire
17	7V121157C	water hose, additional water pump, D - 08.07.2013>>	7V121157C water hose, additional water pump, D - 08.07.2013>>	-	1	Enquire
18	7V121049D	water hose, oil cooler, D - 20.10.2014>>	7V121049D water hose, oil cooler, D - 20.10.2014>>	-	1	Enquire
19	7V121052C	water hose, oil cooler, D - 08.07.2013>>	7V121052C water hose, oil cooler, D - 08.07.2013>>	-	1	Enquire
20	7V121326	hose clip, D - 08.07.2013>>	7V121326 hose clip, D - 08.07.2013>> 16-27,	-	5	Enquire
21	N90626204	oval hexagon socket head bolt	N90626204 oval hexagon socket head bolt M5 X 13.6,	-	1	Enquire
22	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	2	Enquire
22	7V121326	hose clip, D - 08.07.2013>>	7V121326 hose clip, D - 08.07.2013>> 16MM - 27MM,	-	2	Enquire
