crankcase of Bentley Bentley Mulsanne (2010+)

View All

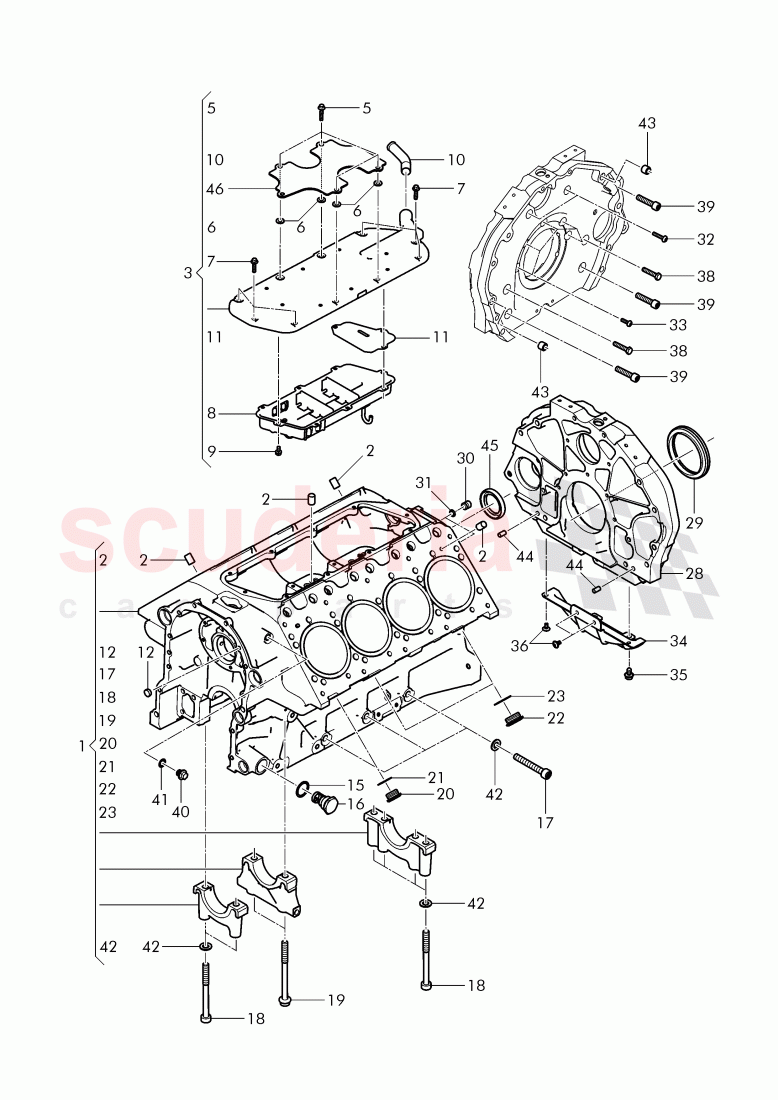

Bentley Mulsanne (2010+) - crankcase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7V103011F	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977	Enquire
	7V103011G	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	7V103011H	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WHT002876	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103461G	cover plate, Tappet Block, also use:, D - 07.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002802	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004040	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002754	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103623C	baffle plate, cover, D - 07.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10005306	hexagon head bolt (combi) D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103189	connecting pipe, breather assy.	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103729A	separator plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002884	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002910	sealing washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103136	retaining pin, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90917401	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90917501	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005294	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002853	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103498	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103546A	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977	Enquire
	7V103546B	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7Z103051	shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109420	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103677	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91097001	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0301257A	closing plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10668402	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002857	Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	Enquire
	N10415402	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90941703	socket head bolt with inner multipoint head D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002868	oil drain plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002906	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01153119	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002885	dowel pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V109293	shaft oil seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	7V103954	insulation plate (self-adhesive)	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7V103204	threaded insert	7V103204 threaded insert 0.25",	-	-	Enquire
-	7V103204A	threaded insert	7V103204A threaded insert 0.3125",	-	-	Enquire
-	N0222262	threaded insert	N0222262 threaded insert M8 X 20MM,	-	-	Enquire
-	2Q301561A	threaded insert	2Q301561A threaded insert M10 X 25MM,	-	-	Enquire
-	N10673801	threaded insert	N10673801 threaded insert M12X1.5X30,	-	-	Enquire
-	N0222154	Thread inserts	N0222154 Thread inserts M8X1,25X16,	-	-	Enquire
-	7V103204B	threaded insert	7V103204B threaded insert 0.375",	-	-	Enquire
-	N0222021	threaded insert	N0222021 threaded insert M10X20,	-	-	Enquire
1	7V103011F	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977	7V103011F crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - 03.01.2012>>, F >> 3Y-C-016 977, F >> ZH-C-016 977 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 106 738 01, 103-020, 103-020, CKBB	-	1	Enquire
1	7V103011G	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	7V103011G crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-C-016 978>> 3Y-D-018 900, F ZH-C-016 978>> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 106 738 01, 103-020, 103-020, CKBB	-	1	Enquire
1	7V103011H	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>	7V103011H crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000> 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 022 215 4, N 106 738 01, 103-020, 103-020, CKBB	-	1	Enquire
1	7V103011K	crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - MJ 2016>>	7V103011K crankcase, contains:, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, threaded insert, cylinder liner, see illustration:, sealing ring, see illustration:, D - MJ 2016>> 07V 103 204, 07V 103 204 A, N 022 226 2, N 100 655 03, N 022 215 4, N 106 738 01, 103-020, 103-020, CZMA,CZMB	-	1	Enquire
2	WHT002876	dowel pin	WHT002876 dowel pin 0.2495"X0.375",	-	16	Enquire
3	7V103461G	cover plate, Tappet Block, also use:, D - 07.11.2016>>	7V103461G cover plate, Tappet Block, also use:, D - 07.11.2016>> LOCTITE 5970,	-	1	Enquire
5	WHT002802	bolt	WHT002802 bolt M6X30,	-	4	Enquire
6	WHT004040	washer	WHT004040 washer 7X16,	-	4	Enquire
7	WHT002754	bolt	WHT002754 bolt M6X25,	-	6	Enquire
8	7V103623C	baffle plate, cover, D - 07.11.2016>>	7V103623C baffle plate, cover, D - 07.11.2016>>	-	1	Enquire
9	N10005306	hexagon head bolt (combi) D - MJ 2007>>	N10005306 hexagon head bolt (combi) D - MJ 2007>> M6X12,	-	8	Enquire
10	7V103189	connecting pipe, breather assy.	7V103189 connecting pipe, breather assy.	-	1	Enquire
11	7V103729A	separator plate	7V103729A separator plate	-	1	Enquire
12	WHT002884	threaded plug	WHT002884 threaded plug	-	1	Enquire
15	WHT002910	sealing washer	WHT002910 sealing washer	-	1	Enquire
16	7V103136	retaining pin, also use:	7V103136 retaining pin, also use: LOCTITE 572,	-	1	Enquire
17	N90917401	socket head bolt with inner multipoint head	N90917401 socket head bolt with inner multipoint head	-	6	Enquire

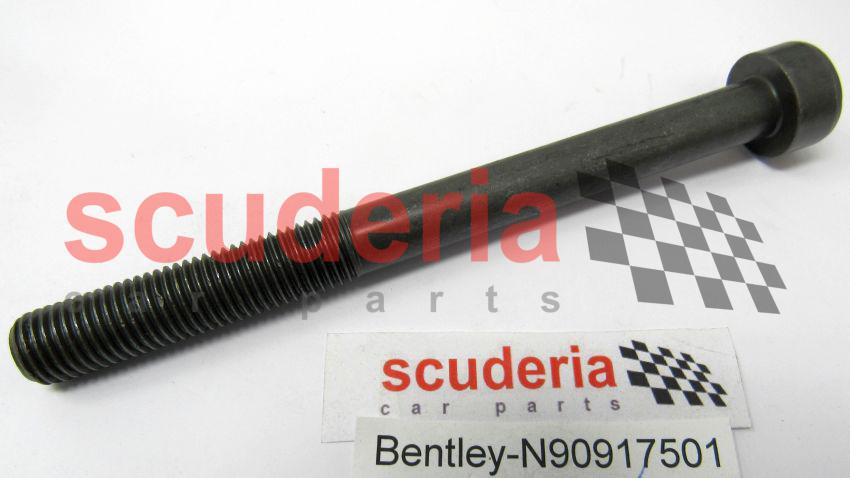

18	N90917501	socket head bolt with inner multipoint head	N90917501 socket head bolt with inner multipoint head M12X130,	-	6	Enquire

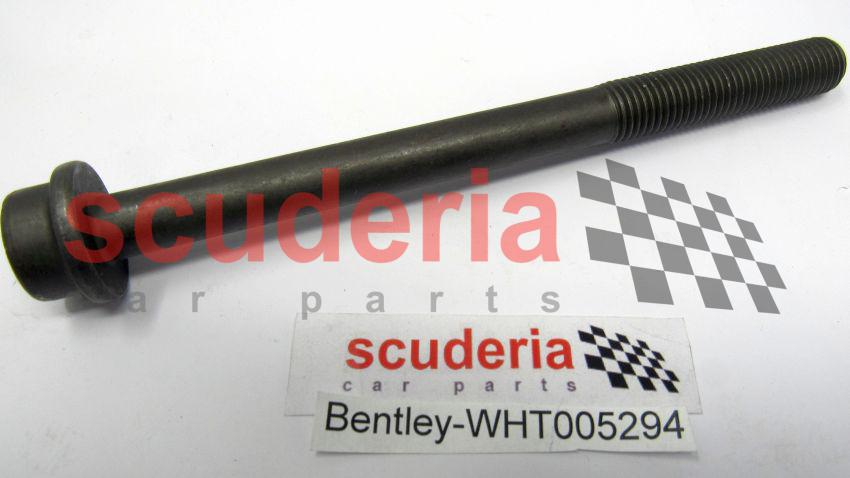

19	WHT005294	multi-point socket head bolt with collar	WHT005294 multi-point socket head bolt with collar M12X143,	-	6	Enquire
20	WHT002853	threaded plug	WHT002853 threaded plug	-	2	Enquire

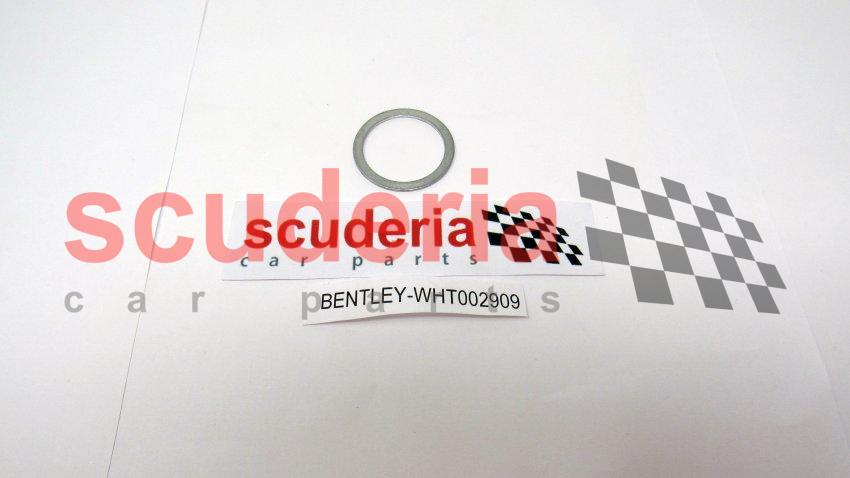

21	WHT002909	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	WHT002909 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	-	2	Enquire
22	7V103498	threaded plug	7V103498 threaded plug	-	4	Enquire
23	WHT002911	sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	WHT002911 sealing washer, F >> 3Y-B-016 069, F >> ZH-B-016 069	-	4	Enquire
28	7V103546A	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977	7V103546A intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F >> 3Y-C-016 977, F >> ZH-C-016 977 07V 103 204 B, N 022 202 1,	-	1	Enquire
28	7V103546B	intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>>	7V103546B intermediate plate, for 8-speed automatic gearbox, contains:, threaded insert, threaded insert, F 3Y-C-016 978>>, F ZH-C-016 978>> 07V 103 204 B, N 022 202 1,	-	1	Enquire

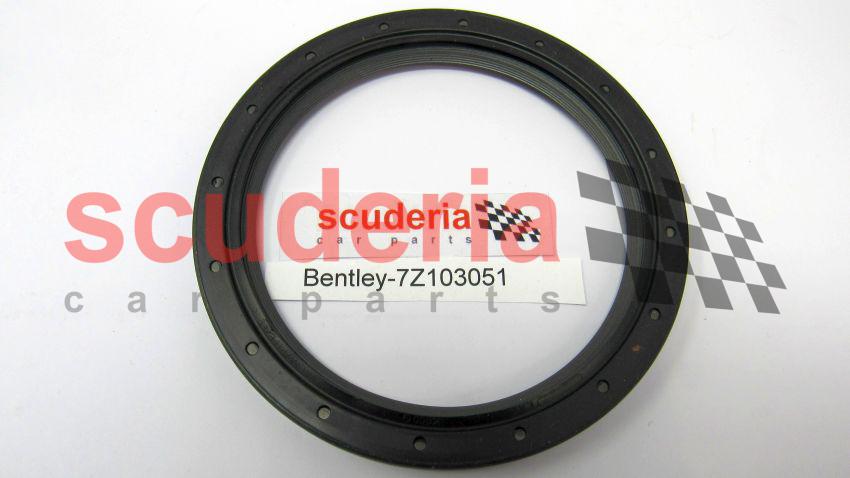

29	7Z103051	shaft oil seal	7Z103051 shaft oil seal	-	1	Enquire
30	7V109420	threaded plug	7V109420 threaded plug	-	2	Enquire
31	7V103677	o-ring	7V103677 o-ring 15X8X3,5,	-	2	Enquire
32	N91097001	Hexagon socket flat head bolt	N91097001 Hexagon socket flat head bolt M6X30,	-	2	Enquire
33	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt	-	5	Enquire
34	3Y0301257A	closing plate	3Y0301257A closing plate	-	1	Enquire
35	N10668402	screw, hex. hd.	N10668402 screw, hex. hd. M8X16,	-	2	Enquire
36	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	4	Enquire
38	WHT002857	Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854	WHT002857 Hexagon head bolt, 0.3125" X 1.5" X 24TPI, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854 0.3125"X1.500",	-	2	> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-018 854, F ZH-E-017 831>> ZH-E-018 854');$('#enq_model').val('Bentley Mulsanne (2010+)');$('#enq_manufacturer').val('Bentley');$('#enq_partno').val('WHT002857');"> Enquire
38	N10415402	bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	N10415402 bolt, hex. hd. (combi.), F 3Y-E-018 855>> 3Y-E-019 941, F ZH-E-018 855>> ZH-E-019 941, F 3Y-E-001 000>> 3Y-E-017 830, F ZH-E-001 000>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> M8X40,	-	2	Enquire
39	N90941703	socket head bolt with inner multipoint head D - 11.12.2006>>	N90941703 socket head bolt with inner multipoint head D - 11.12.2006>> M10X45,	-	2	Enquire
40	WHT002868	oil drain plug	WHT002868 oil drain plug 0.500",	-	1	Enquire
41	WHT002906	washer	WHT002906 washer 0.500",	-	1	Enquire
42	N01153119	washer	N01153119 washer M12,	-	12	Enquire
44	WHT002885	dowel pin	WHT002885 dowel pin	-	2	Enquire

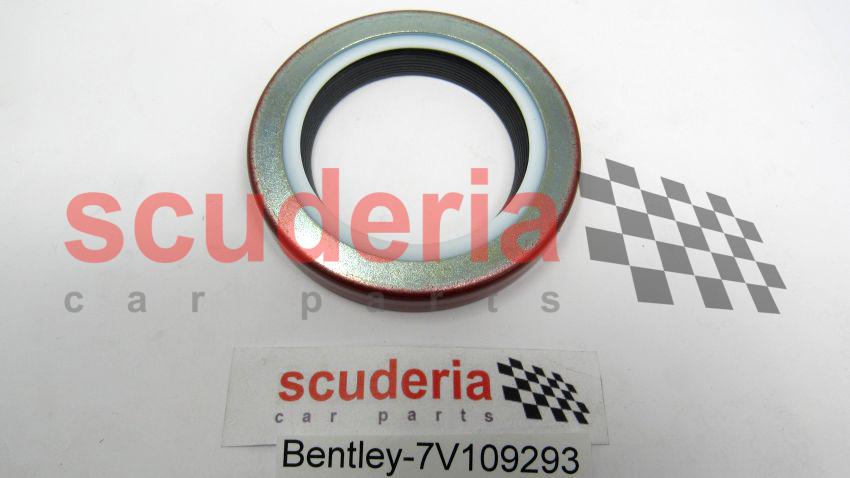

45	7V109293	shaft oil seal	7V109293 shaft oil seal rear,	-	1	Enquire
46	7V103954	insulation plate (self-adhesive)	7V103954 insulation plate (self-adhesive)	-	1	Enquire
