Bentley Mulsanne (2010+) - charge air cooler

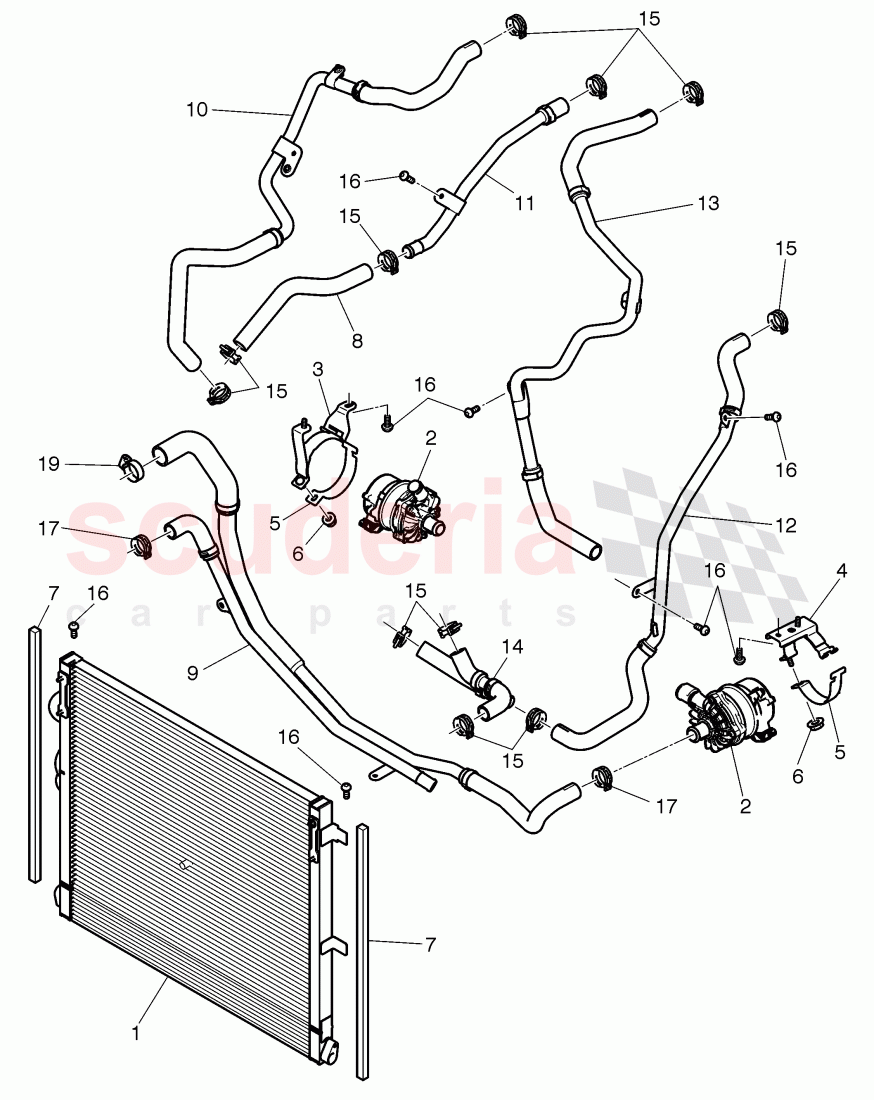

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0121196A	radiator with oil, cooler, see illustration, item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0965567	coolant pump charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145268A	bracket for additional coolant pump charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145267A	bracket for additional coolant pump charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0121240A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0121289	sealing strip (self-adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145708	coolant hose charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145670C	water tube, D - 28.01.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145795B	coolant pipe charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145556C	coolant pipe charge air cooler D - 21.03.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145822B	coolant pipe charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145709A	coolant pipe charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0145920B	Hose, charge air cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire
	3Y0121153	spring clip, only to be used with:, D - 28.01.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0245066	hose clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0121196A	radiator with oil, cooler, see illustration, item:	3Y0121196A radiator with oil, cooler, see illustration, item:	-	1	Enquire
2	8K0965567	coolant pump charge air cooler	8K0965567 coolant pump charge air cooler	-	2	Enquire
3	3Y0145268A	bracket for additional coolant pump charge air cooler	3Y0145268A bracket for additional coolant pump charge air cooler right,	-	1	Enquire
4	3Y0145267A	bracket for additional coolant pump charge air cooler	3Y0145267A bracket for additional coolant pump charge air cooler left,	-	1	Enquire
5	3Y0121240A	bracket	3Y0121240A bracket	-	2	Enquire
6	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc.	-	2	Enquire
7	3Y0121289	sealing strip (self-adhesive)	3Y0121289 sealing strip (self-adhesive)	-	2	Enquire
8	3Y0145708	coolant hose charge air cooler	3Y0145708 coolant hose charge air cooler	-	1	Enquire
9	3Y0145670C	water tube, D - 28.01.2013>>	3Y0145670C water tube, D - 28.01.2013>>	-	1	Enquire
10	3Y0145795B	coolant pipe charge air cooler	3Y0145795B coolant pipe charge air cooler	-	1	Enquire
11	3Y0145556C	coolant pipe charge air cooler D - 21.03.2011>>	3Y0145556C coolant pipe charge air cooler D - 21.03.2011>>	-	1	Enquire
12	3Y0145822B	coolant pipe charge air cooler	3Y0145822B coolant pipe charge air cooler	-	1	Enquire
13	3Y0145709A	coolant pipe charge air cooler	3Y0145709A coolant pipe charge air cooler	-	1	Enquire
14	3Y0145920B	Hose, charge air cooler	3Y0145920B Hose, charge air cooler	-	1	Enquire
15	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	11	Enquire
16	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	20	Enquire
17	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12, 3Y0 145 670 B,	-	2	Enquire
17	3Y0121153	spring clip, only to be used with:, D - 28.01.2013>>	3Y0121153 spring clip, only to be used with:, D - 28.01.2013>> 28X12, 3Y0 145 670 C,	-	2	Enquire
19	N0245066	hose clip	N0245066 hose clip 25-40,	-	1	Enquire
