Name: Front Door Latching System
Rating: 4.8 (1 reviews)

View All

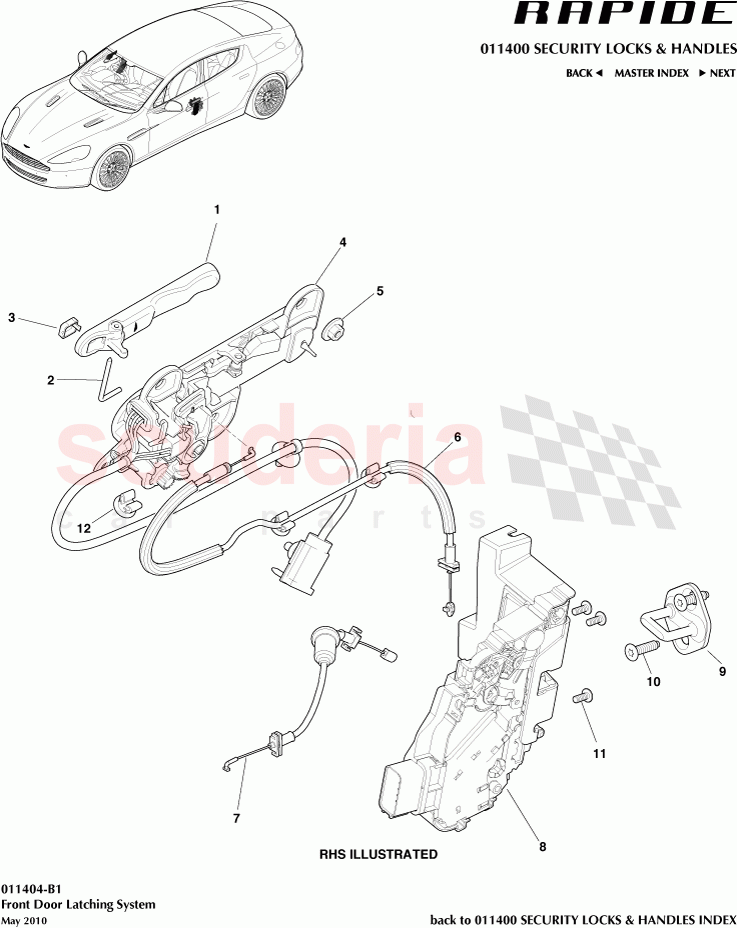

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4322404AG	HANDLE BLADE ASSY	$86.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A68AA	Pivot Pin, Outside Handle	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A72AH	DUMMY LIGHT LENS	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43226A28AH	HANDLE DOOR EXTERIOR FRONT	$512.33	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43221A00BA	CBL ASSY DR OS H	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F218A01BB	CABLE ASSY DR I/S	$66.95	To Order

Photo	Part No	Description	Price (each)	Stock
	AD436510001	Striker, Front Door	$54.11	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43AA0231AA	SCREW M8x34 CSK FLAT TORX - STAINLESS	$5.17	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	704443	Clip, Plastic, 5 x 6.5 x 2	$0.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G4322404AG	HANDLE BLADE ASSY	4G4322404AG HANDLE BLADE ASSY	$86.11	2
2	4G43224A68AA	Pivot Pin, Outside Handle	4G43224A68AA Pivot Pin, Outside Handle 1 per handle blade	$4.90	2
3	4G43224A72AH	DUMMY LIGHT LENS	4G43224A72AH DUMMY LIGHT LENS 1 per handle blade	$4.03	2
4	7G43226A28AH	HANDLE DOOR EXTERIOR FRONT	7G43226A28AH HANDLE DOOR EXTERIOR FRONT	$512.33	2
5	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB 3 per door handle	$0.50	6
6	AD43221A00BA	CBL ASSY DR OS H	AD43221A00BA CBL ASSY DR OS H 1 per door handle	$66.93	2
7	AD43F218A01BB	CABLE ASSY DR I/S	AD43F218A01BB CABLE ASSY DR I/S 1 per latch	$66.95	2

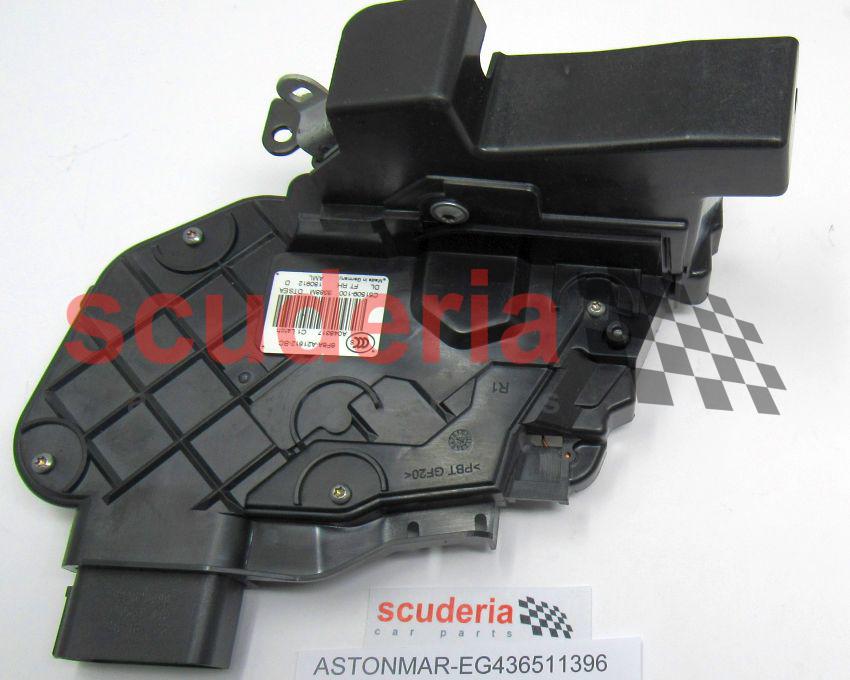

8	EG436511396	DOOR LOCK FRONT RH	EG436511396 DOOR LOCK FRONT RH	$280.15	1
8	EG436511397	FRONT DOOR LATCH SYSTEM LH	EG436511397 FRONT DOOR LATCH SYSTEM LH	$280.15	1
9	AD436510001	Striker, Front Door	AD436510001 Striker, Front Door 1 per latch	$54.11	2
10	AD43AA0231AA	SCREW M8x34 CSK FLAT TORX - STAINLESS	AD43AA0231AA SCREW M8x34 CSK FLAT TORX - STAINLESS 2 per striker	$5.17	4
11	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE 3 per latch assy	$0.75	6
12	704443	Clip, Plastic, 5 x 6.5 x 2	704443 Clip, Plastic, 5 x 6.5 x 2	$0.89	1
