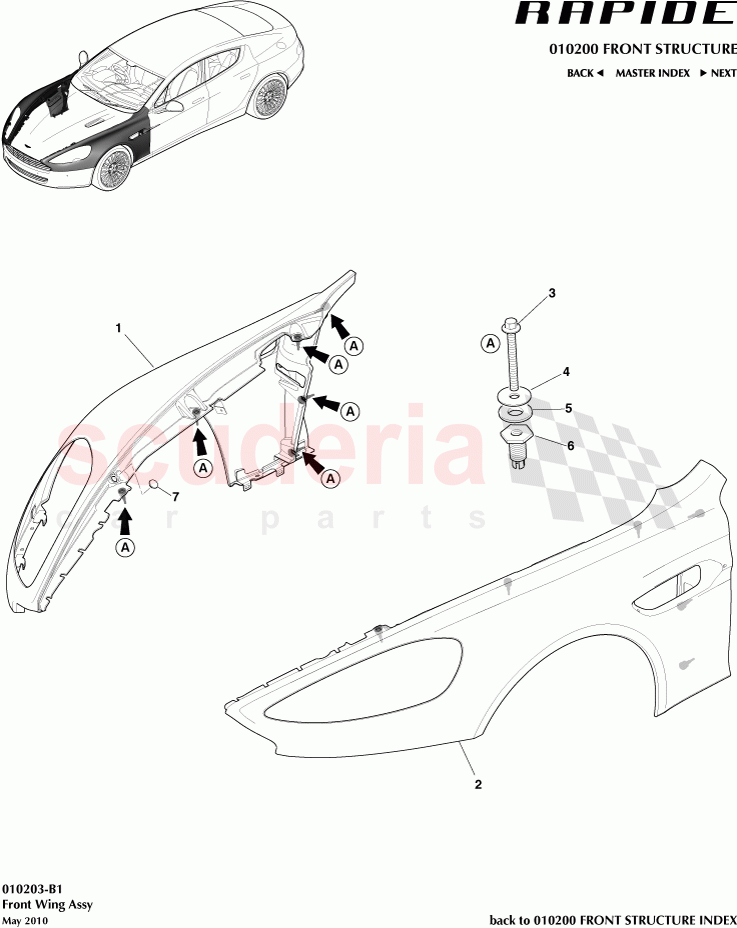

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43F16005AD	FRT FENDER ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F16006AD	FRT FENDER ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703566	Washer, M12, Hardened	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43301347AA	BLACK TPR BODY PLUG 20mm	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43F16005AD	FRT FENDER ASSY RH	AD43F16005AD FRT FENDER ASSY RH	-	1	Enquire
2	AD43F16006AD	FRT FENDER ASSY LH	AD43F16006AD FRT FENDER ASSY LH	-	1	Enquire
3	703196PK	BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)	703196PK BOLT M6 x 55 HEX FLANGE HEAD (PACK 10) 6 per fender	-	12	Enquire
4	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10) 6 per fender	-	12	Enquire
5	703566	Washer, M12, Hardened	703566 Washer, M12, Hardened 6 per fender	-	12	Enquire
6	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) 6 per fender	-	12	Enquire
7	4G43301347AA	BLACK TPR BODY PLUG 20mm	4G43301347AA BLACK TPR BODY PLUG 20mm 1 per fender	-	2	Enquire
