Find Your Part

View All

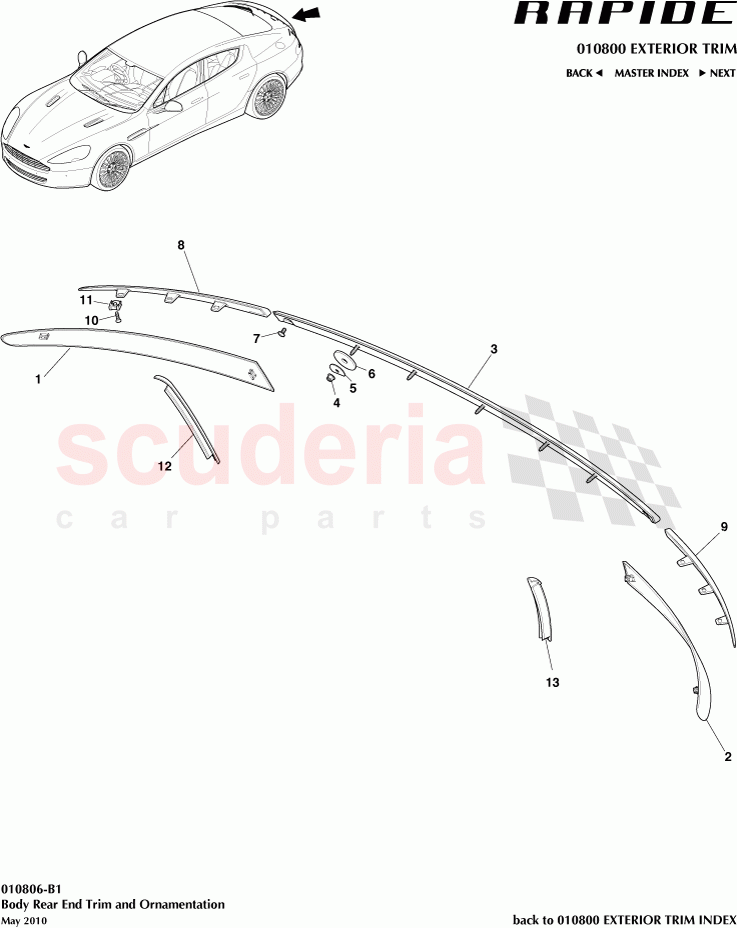

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4313A538CB	RR LMP Trim Fin RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313A539CB	RR LMP Trim Fin LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313554AA	DECKLID FINISHER CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338979AC	WASHER DECKLID FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313520AB	REAR LAMP FIX SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3346058AA	M5x10 PAN HEAD FLANGE TORX SCREW PATCHED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313555AC	DECKLID FINISHER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313556AC	DECKLID FINISHER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43015371AA	CAPTIVE U NUT M4 LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313520AA	SEAL-RR LAMP BODY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4313521AA	SEAL-RR LAMP BODY LH	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4313A538CB	RR LMP Trim Fin RH	4G4313A538CB RR LMP Trim Fin RH	-	1	Enquire
2	4G4313A539CB	RR LMP Trim Fin LH	4G4313A539CB RR LMP Trim Fin LH	-	1	Enquire
3	AD4313554AA	DECKLID FINISHER CENTRE	AD4313554AA DECKLID FINISHER CENTRE	-	1	Enquire
4	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	5	Enquire
5	8D338979AC	WASHER DECKLID FINISHER	8D338979AC WASHER DECKLID FINISHER	-	5	Enquire
6	4G4313520AB	REAR LAMP FIX SEAL	4G4313520AB REAR LAMP FIX SEAL	-	5	Enquire
7	8D3346058AA	M5x10 PAN HEAD FLANGE TORX SCREW PATCHED	8D3346058AA M5x10 PAN HEAD FLANGE TORX SCREW PATCHED	-	2	Enquire
8	AD4313555AC	DECKLID FINISHER RH	AD4313555AC DECKLID FINISHER RH	-	1	Enquire
9	AD4313556AC	DECKLID FINISHER LH	AD4313556AC DECKLID FINISHER LH	-	1	Enquire
10	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black 3 per finisher	-	6	Enquire
11	4G43015371AA	CAPTIVE U NUT M4 LOCKING	4G43015371AA CAPTIVE U NUT M4 LOCKING 3 per finisher	-	6	Enquire
12	AD4313520AA	SEAL-RR LAMP BODY RH	AD4313520AA SEAL-RR LAMP BODY RH	-	1	Enquire
13	AD4313521AA	SEAL-RR LAMP BODY LH	AD4313521AA SEAL-RR LAMP BODY LH	-	1	Enquire
