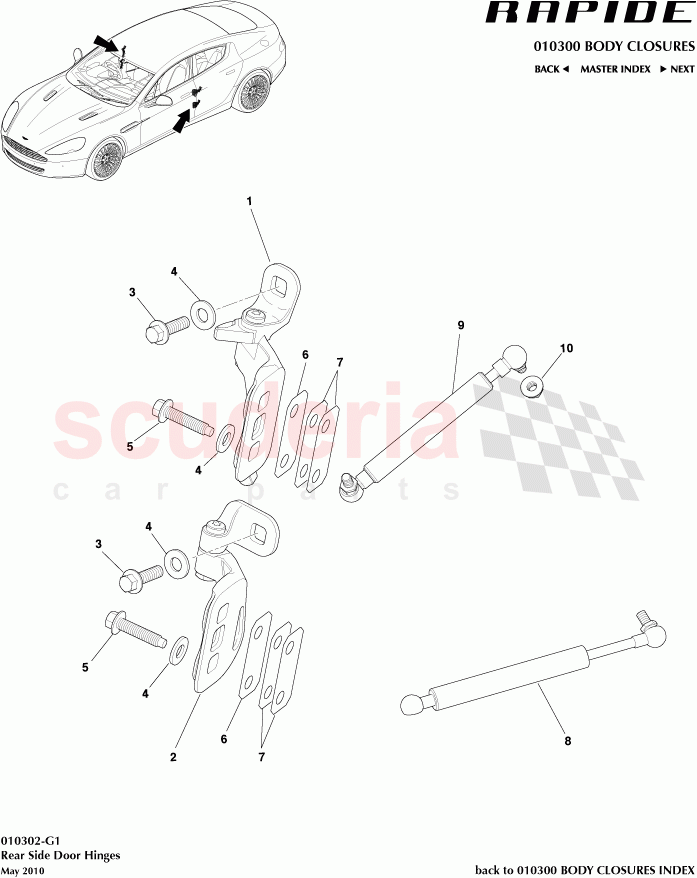

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	704440	Screw, M10 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703566	Washer, M12, Hardened	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704441	Bolt, M10 x 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F33626AB	REAR DOOR HINGE SHIM 0.5MM THICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F33627AB	REAR DOOR HINGE SHIM 1.0MM THICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F23505AB	REAR DOOR GAS STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4326826AB	Rear door gas strut, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703161	Nut Hex M8 Flanged	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43F26800AA	REAR DOOR HGE UPPER RH	AD43F26800AA REAR DOOR HGE UPPER RH	-	1	Enquire
1	AD43F26801AA	REAR DOOR HGE UPP LH	AD43F26801AA REAR DOOR HGE UPP LH	-	1	Enquire
2	AD43F26810AA	REAR DOOR HINGE LOWER RH	AD43F26810AA REAR DOOR HINGE LOWER RH	-	1	Enquire
2	AD43F26811AA	REAR DOOR HINGE LOWER LH	AD43F26811AA REAR DOOR HINGE LOWER LH	-	1	Enquire
3	704440	Screw, M10 x 35	704440 Screw, M10 x 35 1 per hinge	-	4	Enquire
4	703566	Washer, M12, Hardened	703566 Washer, M12, Hardened 3 per hinge	-	12	Enquire
5	704441	Bolt, M10 x 40	704441 Bolt, M10 x 40 2 per hinge	-	8	Enquire
6	AD43F33626AB	REAR DOOR HINGE SHIM 0.5MM THICK	AD43F33626AB REAR DOOR HINGE SHIM 0.5MM THICK 2 per hinge	-	8	Enquire
7	AD43F33627AB	REAR DOOR HINGE SHIM 1.0MM THICK	AD43F33627AB REAR DOOR HINGE SHIM 1.0MM THICK 1 per hinge	-	4	Enquire
8	AD43F23505AB	REAR DOOR GAS STRUT	AD43F23505AB REAR DOOR GAS STRUT 1 per door	-	2	Enquire
9	AD4326826AB	Rear door gas strut, upper	AD4326826AB Rear door gas strut, upper 1 per door	-	2	Enquire
10	703161	Nut Hex M8 Flanged	703161 Nut Hex M8 Flanged 1 per strut	-	2	Enquire
