Name: Deflector and Shields
Rating: 5.0 (1 reviews)

View All

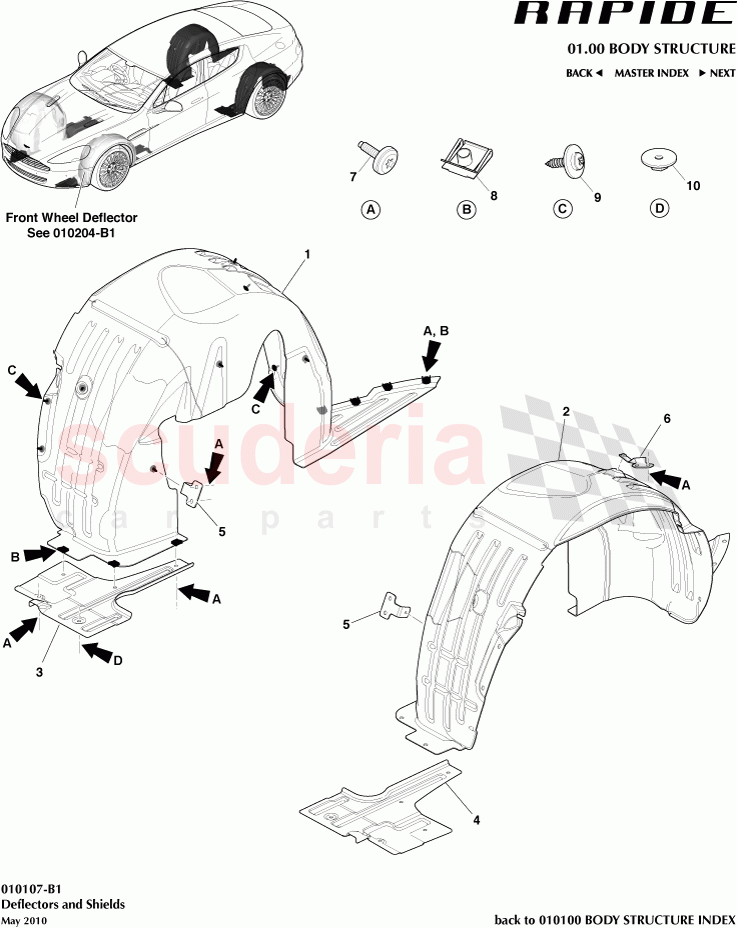

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD4354279D22AD	REAR WHEELARCH LINER RH	$885.85	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4354279D23AD	REAR WHEELARCH LINER LH	$885.85	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4354279D44AA	REAR WHEELARCH INFILL PNL RH	$110.08	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4354279D45AA	REAR WHEELARCH INFILL PNL LH	$110.08	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316586AA	ASSY REAR WHEELARCH LINER FIXING BRACKET	$18.04	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316586CA	REAR WHEEL ARCH LINER FIXING BRACKET UPPER LH	$19.79	To Order

Photo	Part No	Description	Price (each)	Stock
	702514	SCREW M6 x 14 PAN HEAD	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	To Order

Photo	Part No	Description	Price (each)	Stock
	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	$5.26	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	$5.58	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AD4354279D22AD	REAR WHEELARCH LINER RH	AD4354279D22AD REAR WHEELARCH LINER RH	$885.85	1
2	AD4354279D23AD	REAR WHEELARCH LINER LH	AD4354279D23AD REAR WHEELARCH LINER LH	$885.85	1
3	AD4354279D44AA	REAR WHEELARCH INFILL PNL RH	AD4354279D44AA REAR WHEELARCH INFILL PNL RH	$110.08	1
4	AD4354279D45AA	REAR WHEELARCH INFILL PNL LH	AD4354279D45AA REAR WHEELARCH INFILL PNL LH	$110.08	1
5	AD4316586AA	ASSY REAR WHEELARCH LINER FIXING BRACKET	AD4316586AA ASSY REAR WHEELARCH LINER FIXING BRACKET	$18.04	2
6	AD4316586CA	REAR WHEEL ARCH LINER FIXING BRACKET UPPER LH	AD4316586CA REAR WHEEL ARCH LINER FIXING BRACKET UPPER LH	$19.79	1
7	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	$1.68	32
8	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	14
9	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	702510PK Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	$5.26	8
10	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	$5.58	2
