Grille Opening Panel of Aston Martin Aston Martin Rapide

View All

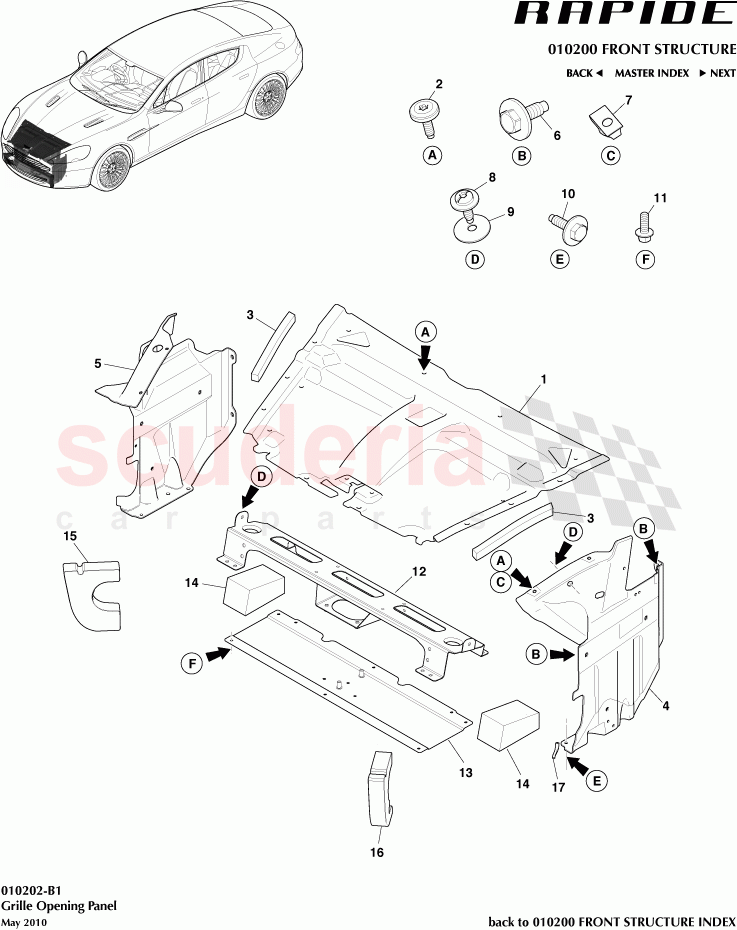

Aston Martin Rapide - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D338136AC	Grille Radiator Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43403D62AA	SE UPR PNL VEN AIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43F01991AF	PNL VEN AIR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43F01990AF	PNL VEN AIR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703139	Screw/Washer M8x20 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G438052AD	CVR ASY - RAD SUPT LWR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G432943751AB	Beam, Radiator Support Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3342761AA	Foam Pad, Cover Assy Radiator Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F334610AA	BUMPER INT FOAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43F334611AA	BUMPER INT FOAM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D338136AC	Grille Radiator Centre	8D338136AC Grille Radiator Centre	-	1	Enquire
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
3	4G43403D62AA	SE UPR PNL VEN AIT	4G43403D62AA SE UPR PNL VEN AIT	-	2	Enquire
4	8G43F01991AF	PNL VEN AIR LH	8G43F01991AF PNL VEN AIR LH	-	1	Enquire
5	8G43F01990AF	PNL VEN AIR RH	8G43F01990AF PNL VEN AIR RH	-	1	Enquire
6	703139	Screw/Washer M8x20 Chrome Free	703139 Screw/Washer M8x20 Chrome Free	-	8	Enquire
7	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	-	4	Enquire
8	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	2	Enquire
9	FD43E830667AAPK	Washer 25mm x 6.4mm (Pack of 10)	FD43E830667AAPK Washer 25mm x 6.4mm (Pack of 10)	-	2	Enquire
10	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	6	Enquire
11	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	9	Enquire
12	8G438052AD	CVR ASY - RAD SUPT LWR	8G438052AD CVR ASY - RAD SUPT LWR	-	1	Enquire
13	8G432943751AB	Beam, Radiator Support Lower	8G432943751AB Beam, Radiator Support Lower	-	1	Enquire
14	8D3342761AA	Foam Pad, Cover Assy Radiator Support	8D3342761AA Foam Pad, Cover Assy Radiator Support	-	2	Enquire
15	AD43F334610AA	BUMPER INT FOAM RH	AD43F334610AA BUMPER INT FOAM RH	-	1	Enquire
16	AD43F334611AA	BUMPER INT FOAM LH	AD43F334611AA BUMPER INT FOAM LH	-	1	Enquire
17	4G43L41041AA	Edge Strip, Black 2 x 40	4G43L41041AA Edge Strip, Black 2 x 40	-	1	Enquire
